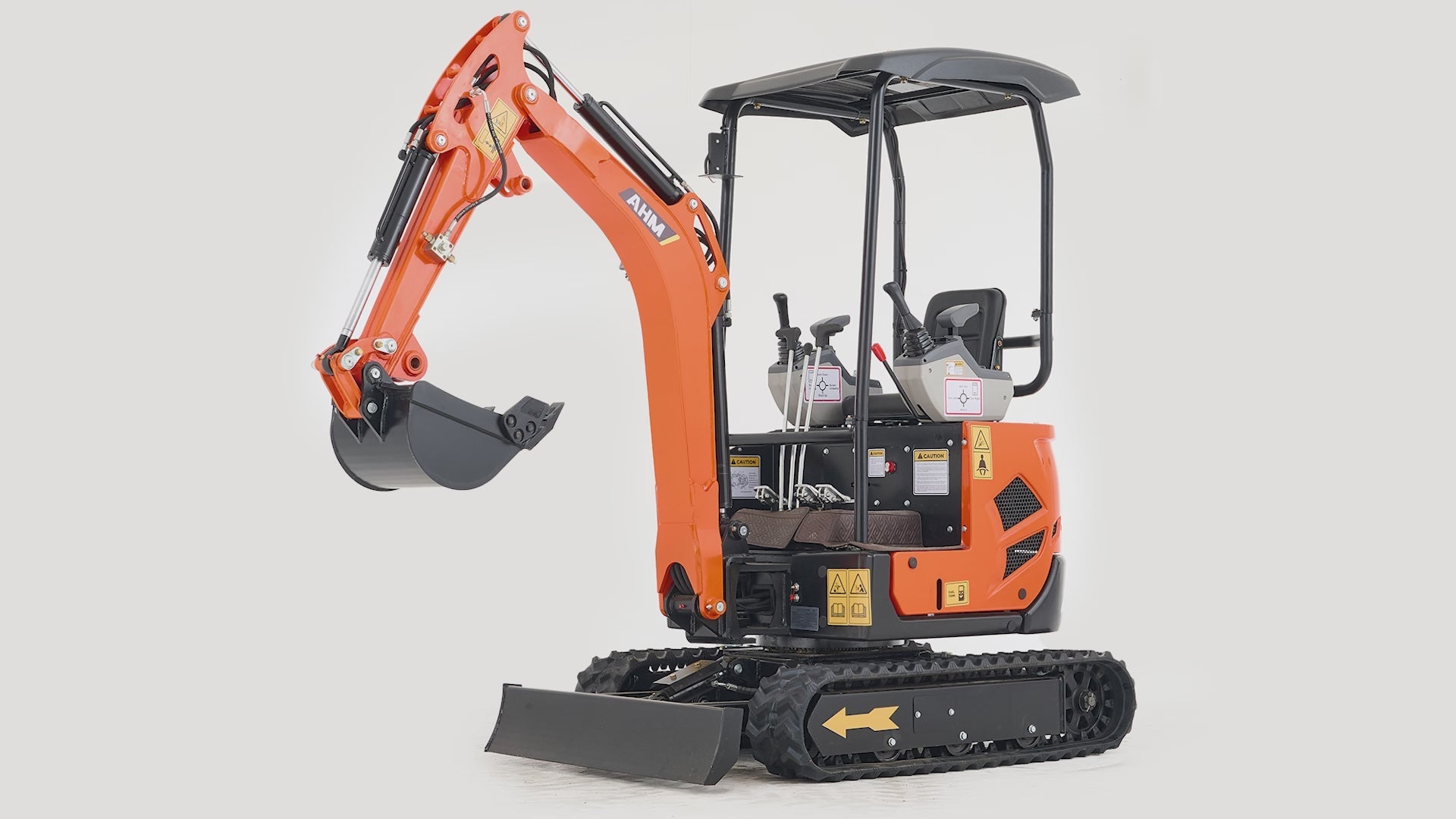

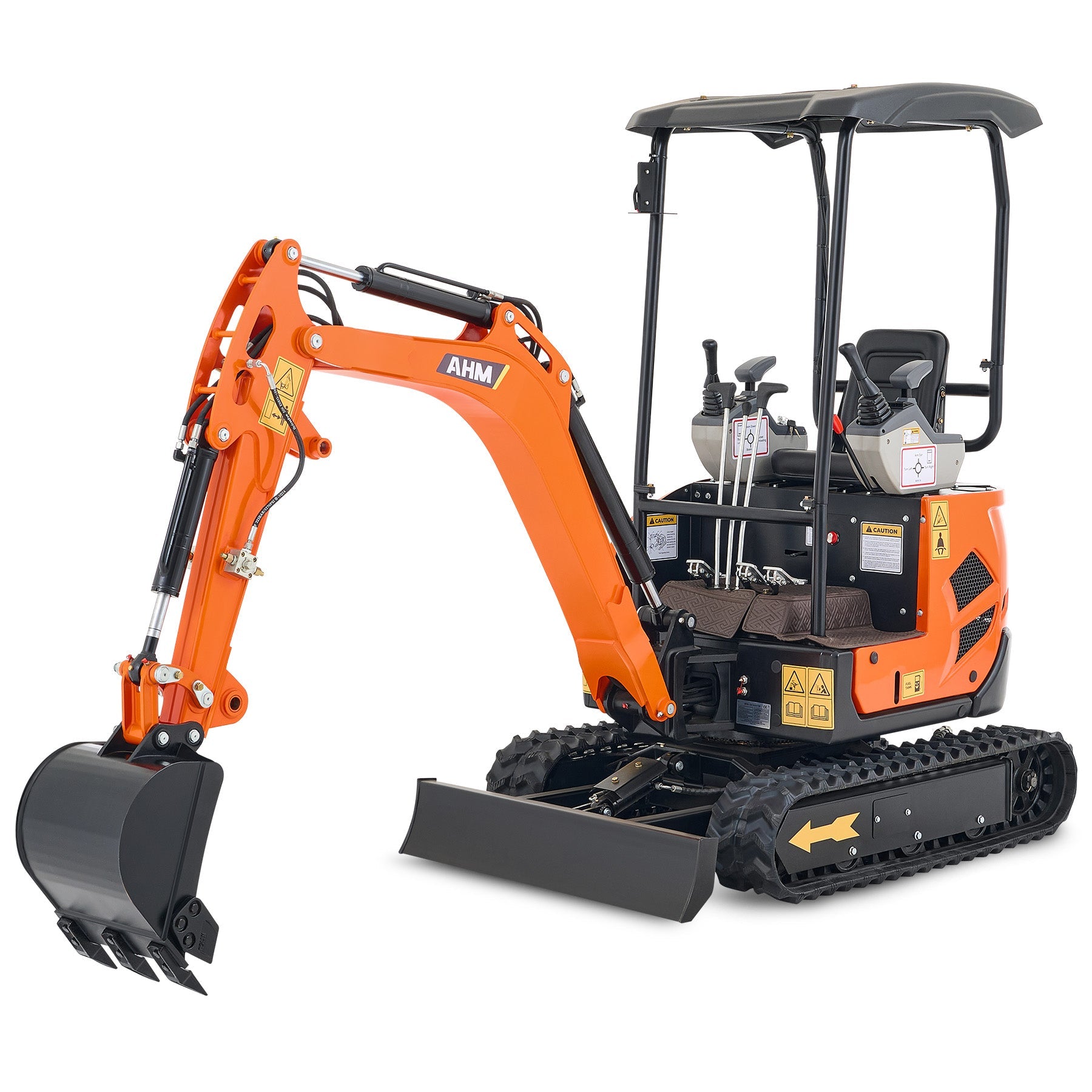

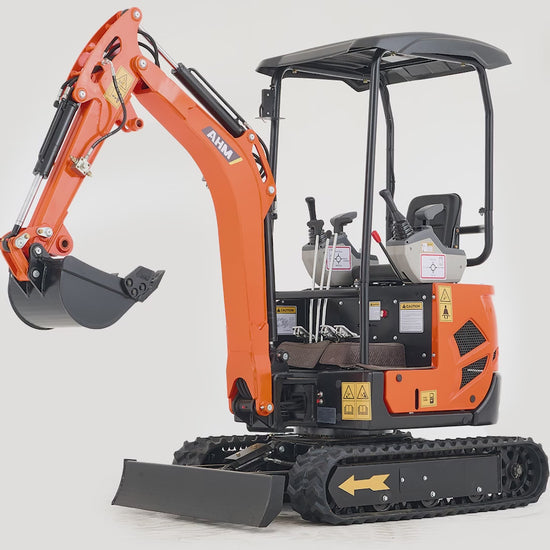

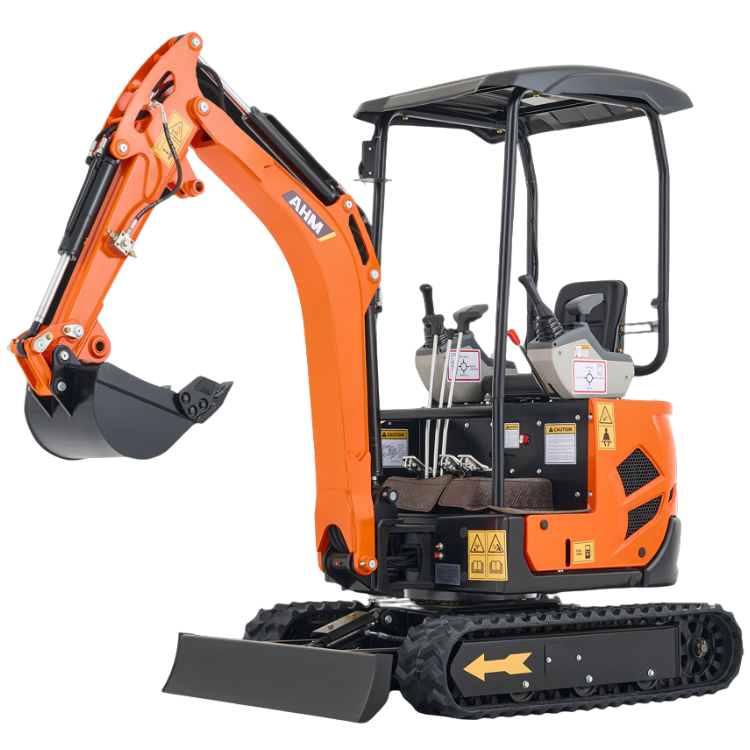

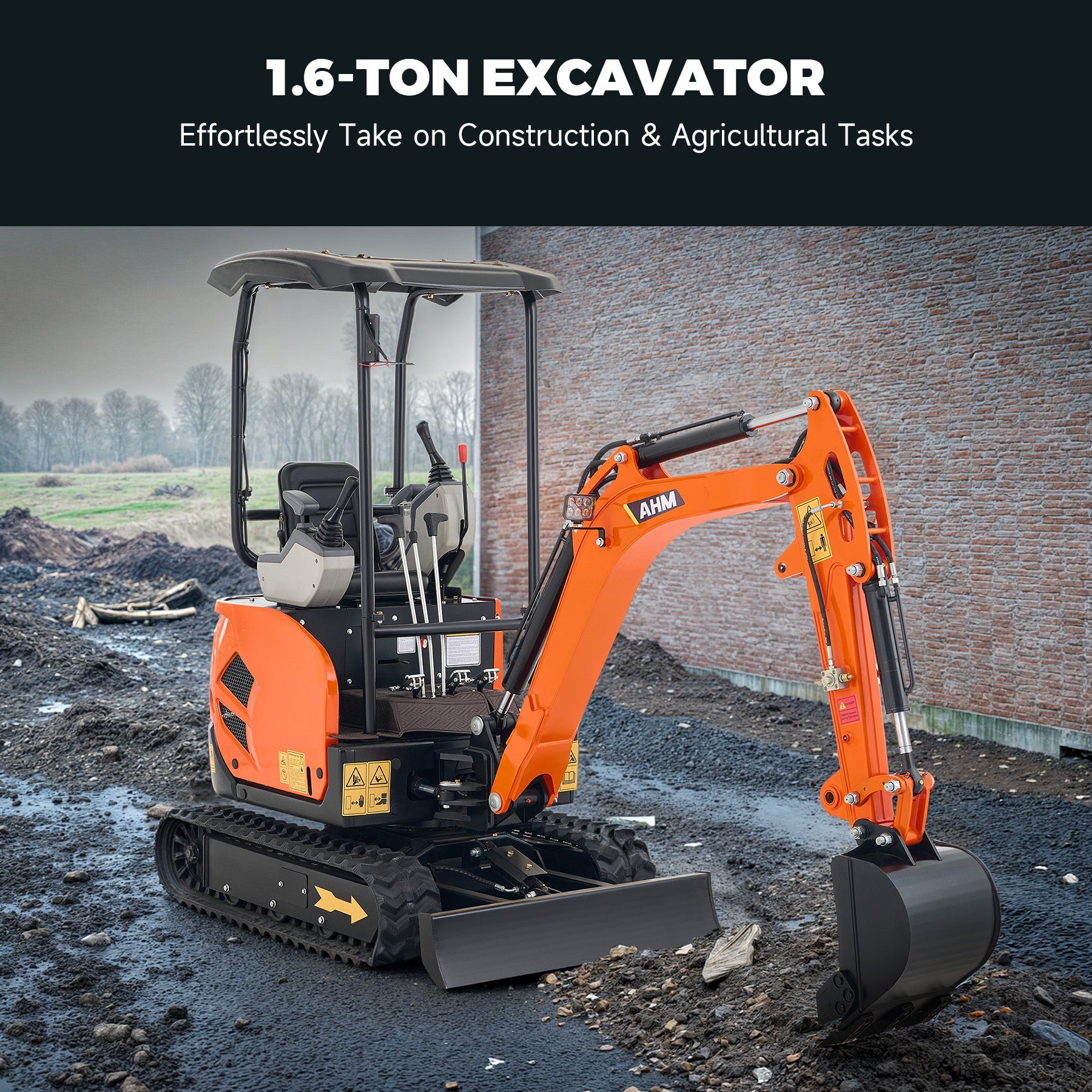

AX-17 | 23 HP B&S Engine 1.6 Ton Mini Excavator with Swing Boom

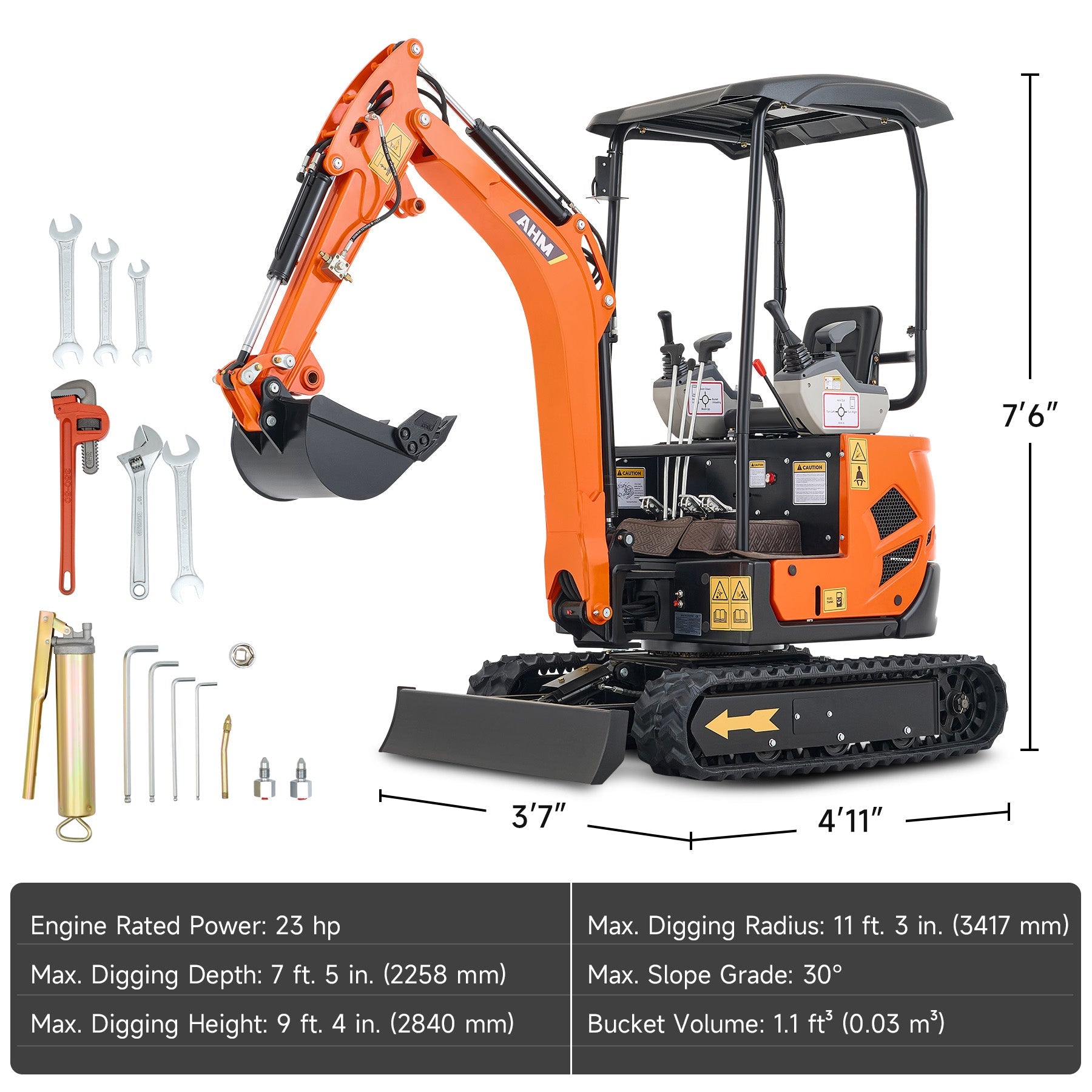

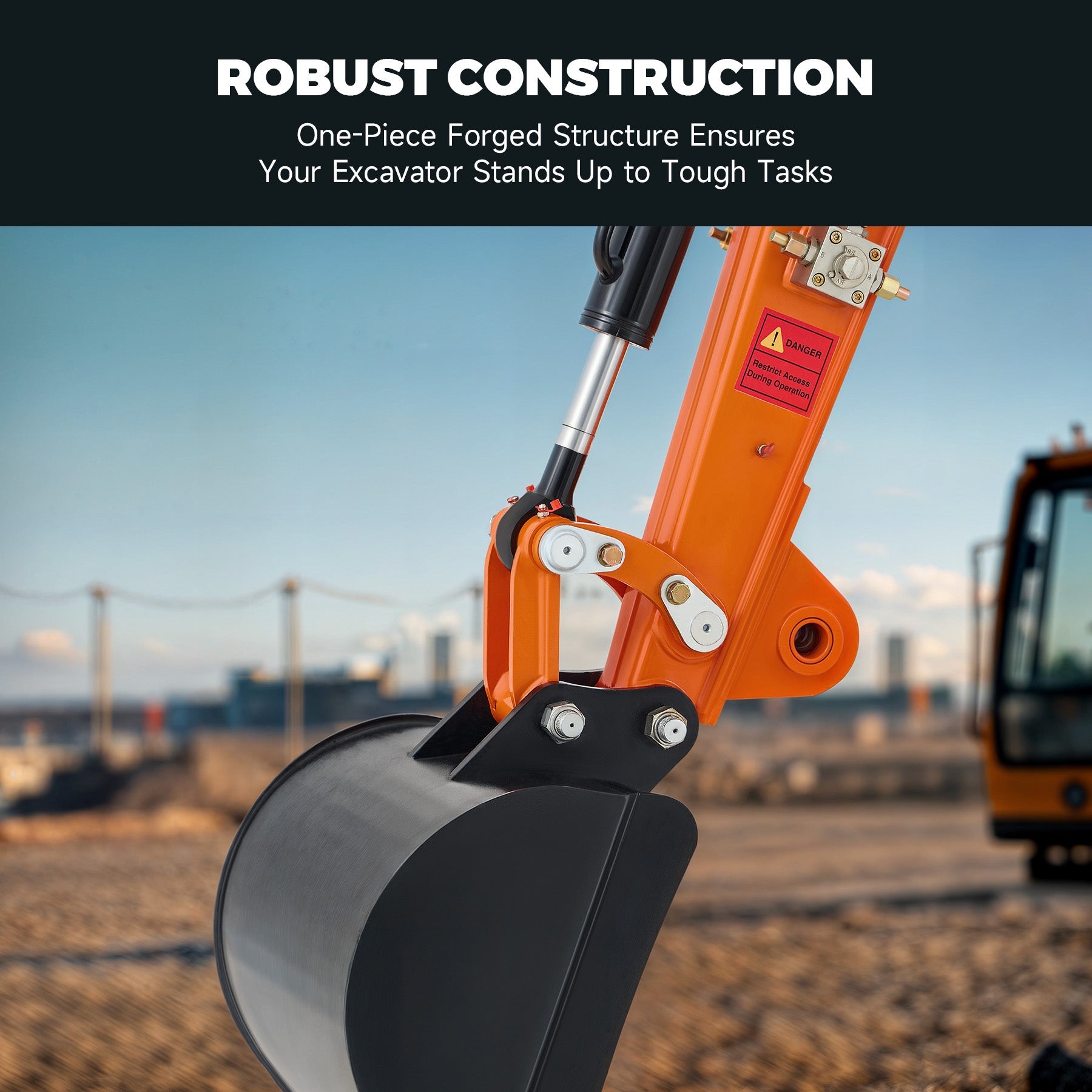

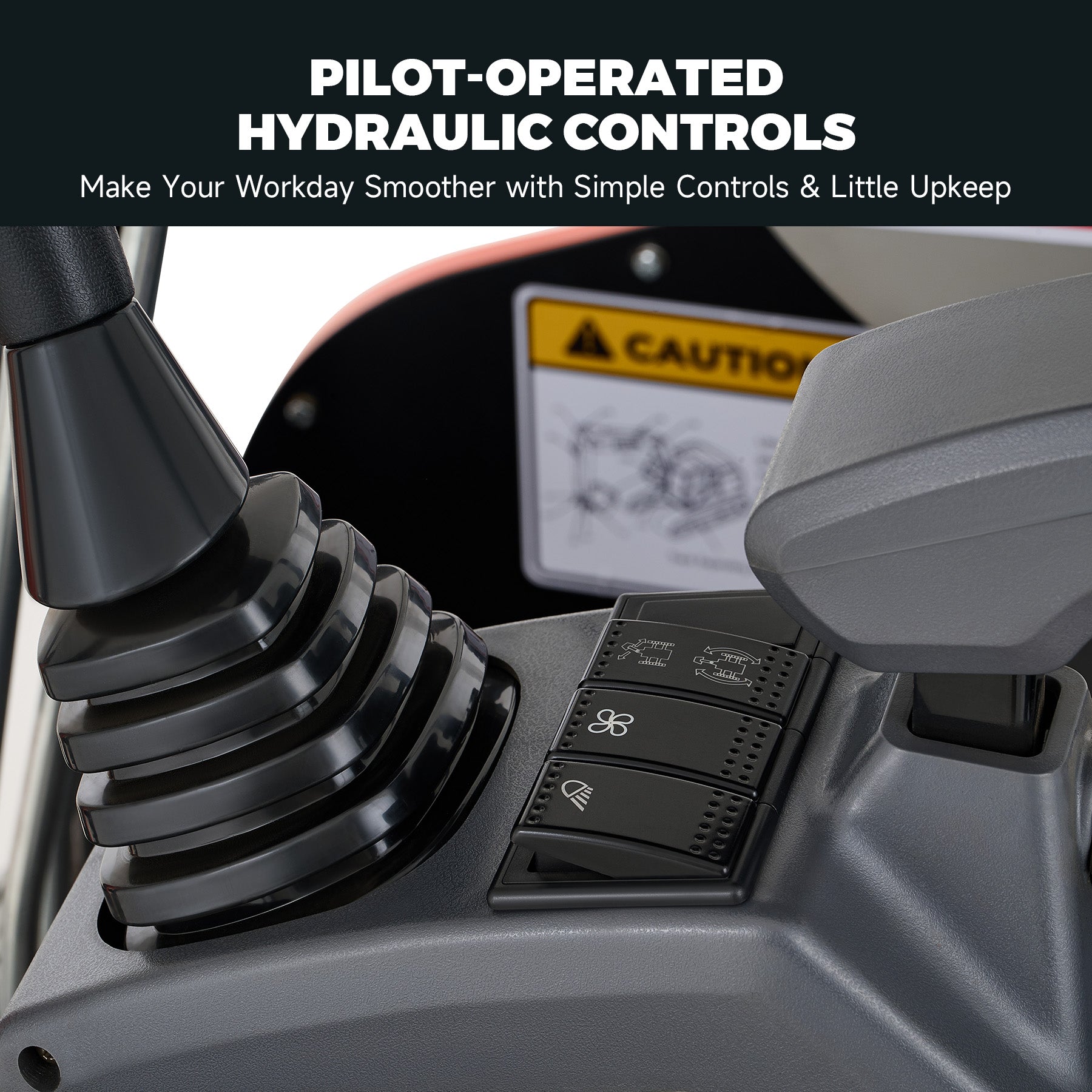

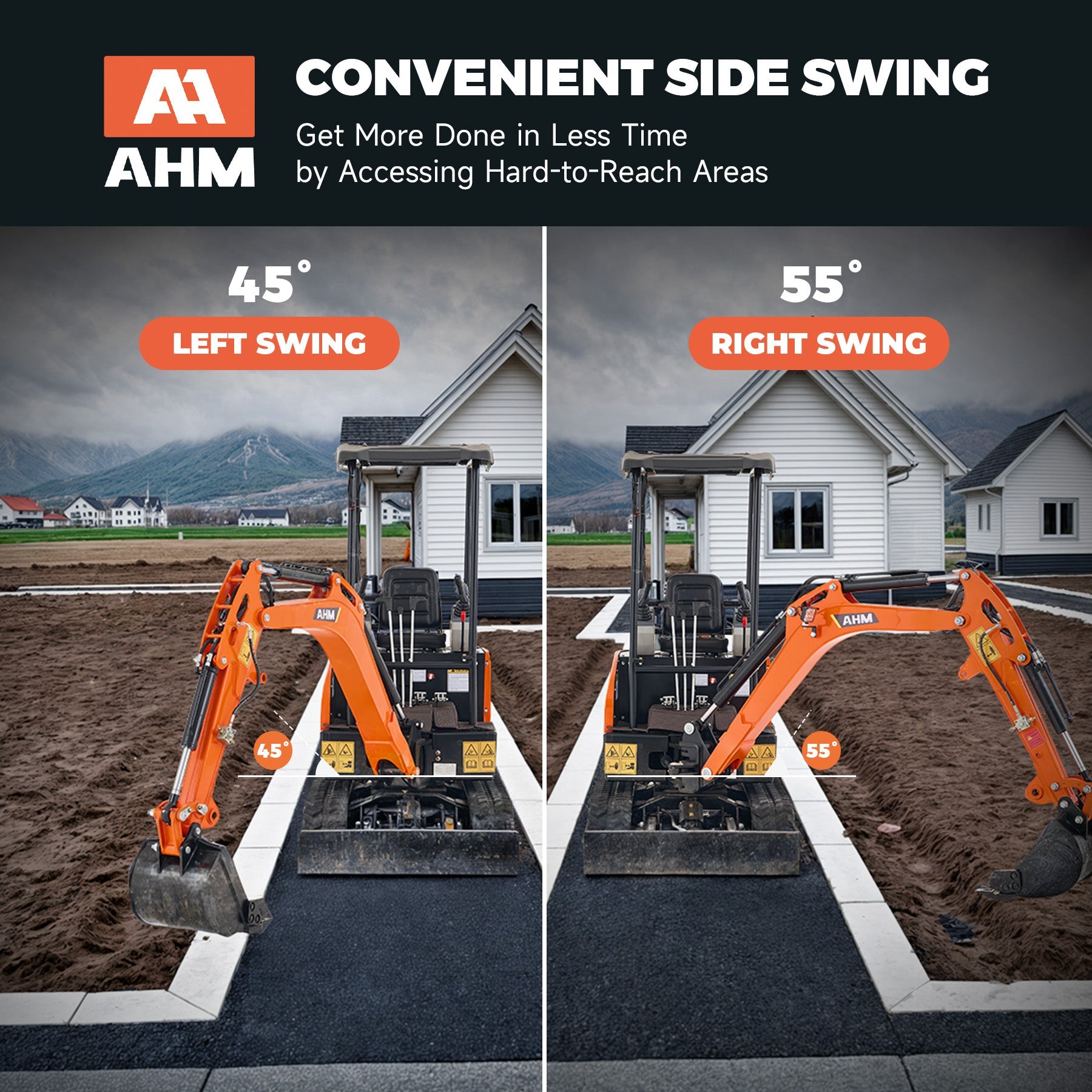

Built for Depth Built for Pros The AHM AX-17 23HP B&S gasoline mini excavator is built for serious digging with pro-level performance you can count on. With an 88.9-inch digging depth and 134.5-inch max digging radius it takes on deep jobs without breaking a sweat. The **upgraded swing boom** lets you dig tight spots from any angle. This 3'7" wide machine lifts up to 551 pounds and delivers smoother control with pilot-operated hydraulics. It’s the deepest digging and best value mini excavator under 2 tons. Operating Weight 3651 lb Max. Dig Depth 88.9 in. Horsepower 23 HP Max. Load Capacity 551 lb. Briggs & Stratton Dual Cylinder 3864 engine Double Enhanced Power and Improved Efficiency Briggs & Stratton Efficient Engine Equipped with a Briggs & Stratton **Dual Cylinder** 3864 engine, this compact powerhouse packs advanced technologies, delivering exceptional power and efficiency while being lighter than competitors. Boasting 70% more horsepower and 50% larger displacement than 13.5hp 420cc models, it ensures superior performance. - **V-Twin OHV Technology**: Offers better balance, increased power, and optimized performance for longer life and improved fuel economy. - **Robust Construction**: Features cast iron sleeve, balanced crankshaft, and full-pressure lubrication, ensuring longevity and wear resistance. Max. Bucket Digging Force: 2923 lbf (13 kN) 29% Deeper Than Others - Get serious digging power with the AX-17, packing an 88.9-inch max digging depth and 2923 lbf of digging force. From breaking through rock-hard clay to moving heavy loads, this machine makes tough jobs easy. - With a 134.5-inch max digging radius, a 70.1-inch dumping height, and a compact 32.3-inch swing radius, the AX-17 delivers muscle and reach where other small machines can't. Precise Hydraulic Pilot Control System - The precise hydraulic pilot control system outperforms cheap mechanical controls. When you stop the joystick, the machine responds immediately with smooth, precise action. Unlike the delay in traditional mechanical systems, pilot control ensures smoother, safer operation while reducing wear and extending the machine’s lifespan. - In addition, the hydraulic pilot lock switch adds an extra layer of protection, preventing accidental machine movement by locking the hydraulic system when idle, ensuring safety during transport or while not in use. Swing Boom for Better Performance - Maximize your mini excavator’s potential with the swing boom feature. It allows the arm to move side-to-side without repositioning the machine, making it perfect for tight spaces and tricky angles. - Save time, work more efficiently, and protect the ground from unnecessary wear. Whether you're working close to walls or in narrow spots, the swing boom gives you the precision and flexibility you need to get the job done right. Compatible with Multiple Attachments - Equipped with enhanced hydraulics, our compact crawler excavator effortlessly accommodates high-flow attachments like auger, hydraulic thumb, and hydraulic breaker hammer(not incl.). - From effortlessly demolishing tough materials to achieving precision in drilling tasks and securely handling debris, our tools excel in diverse environments. [ Buy Excavator Attachments ](/collections/mini-excavators-attachments) Your Safety is Our Priority Our excavators are designed with advanced safety and efficiency. The hydraulic oil cooler maintains consistent oil temperatures, preventing overheating and protecting critical components, reducing wear, and extending equipment life. The hydraulic safety lock immobilizes controls during maintenance or unintended activation, reducing risks and enhancing safety in compliance with OSHA standards. Compact Power with Zero Tail Swing Our zero tail swing excavator is built for tight spaces, offering full rotation without hitting obstacles behind. It lets you work right up against walls, fences, or structures with total freedom of movement. The reduced tail design improves safety, boosts efficiency in narrow job sites, and keeps your worksite clean and damage-free while delivering serious digging power where it matters. Easy Maintenance On this heavy-duty compact excavator, maintenance is quick and easy. Located conveniently at the rear, accessible maintenance ports allow effortless removal of guards and straightforward servicing of key components. These accessible points minimize downtime, ensuring your machine operates at peak performance consistently. Ready-to-Use Hydraulic System Our small excavator comes with hydraulic oil pre-filled and ready to work. A built-in meter makes it easy to monitor oil levels and temperature, so you always stay on top of your machine’s condition. Clear labels on the body make daily checks and operation smooth and hassle-free. Specification - Material: Steel, Rubber - Engine Power: 23 hp (17 kW) - Max. Load Capacity: 551 lb. (250 kg) - Max. Slope Grade: 30° - Bucket Volume: 1.06 ft³ (0.03 m³) - Bucket Width: 15.7 in. (400 mm) - Max. Digging Depth: 88.9 in. (2258 mm) - Max. Digging Height: 9 ft. 4 in. (2840 mm) - Max Dump Height: 70.1 in. (1781 mm) - Max. Digging Radius: 134.5 in. (3417 mm) - Fuel Consumption: 0.95 gal/h (3.6 L/h) - Fuel Tank Volume: 2.25 gal. (8.5 L) - Warranty: 1 Year Package List - 1x Mini Excavator - 1x Oil Filter - 1x Adjustable Wrench - 4x Wrenches - 1x Grease Gun - 1x Grease Gun Nozzle - 4x Hex Wrenches - 1x Socket - 1x Pipe Clamp Wrench - 4x Adapters - 1x Instruction Manual Specs & Compare [Product Manual](https://cdn.shopify.com/s/files/1/0822/8251/2670/files/AX-17_AX-17J_Manual.pdf?v=1745376967) Units US Metric US- US - Metric Key Specifications Operating Weight 3651 lb - - Max. Bucket Digging Force 2923 lbf - - Max. Digging Depth 88.9 in. - - Width 3'7" - - Tail Swing Type Reduced - - Engine Emissions Tier (EPA) Tier 4 - - Model Briggs & Stratton Dual Cylinder 3864 - - Gross Power 23 HP - - Engine Fuel Gasoline - - Maximum Governed RPM 3600 rpm - - Rated Torque 35 ft lb. - - Displacement 38.3 in³ - - Stroke 2.76 in. - - Bore 2.97 in. - - Performance Operating Weight 3651 lb - - Weight Class - - Max. Traveling Speed 2.5 km/h - - Bucket Digging Force 2923 lbf - - Max. Digging Radius 134.5 in. - - Min. Swing Radius 32.3 in. - - Max. Digging Depth 88.9 in. - - Max Dump Height 70.1 in. - - Platform Ground Clearance 16.1 in. - - Bucket Volume 1.06 ft³ - - Bucket Width 15.8 in. - - Capacities Fuel Tank Volume 2.25 gal. - - Fuel Consumption 0.95 gal/h - - Fuel Type CF-4 15W-40 - - Hydraulic System Hydraulic Tank Volume 2.8 gal. - - Hydraulic Oil ISO VG 68 - - Main Pump Flow 9.5 gal/min - - Rated Pressure 3191 psi - - Max. Pressure 3626 psi - - Dimension Overall Length in Travel Position 130.7" - - Width 3'7" - - Height with Operator Cab 7'6" - - FAQ ### What is the engine cooling method? The engine cooling method is air-cooled. ### What is the fuel type? The fuel type is gasoline with an octane rating of 90 or higher. ### What is the capacity of the fuel tank and the fuel consumption rate? The capacity of the fuel tank is 8.5 liters, and the fuel consumption rate is 0.95 gal/h (3.6 L/H). ### What is the engine model? The engine model is BRIGGS & Stratton Dual Cylinder 3864. ### What accessories are included with the machine? The machine comes with only one digging bucket and does not include any additional attachments. ### What is the travel speed of the excavator? The travel speed of this excavator is 2.5 km/h.
