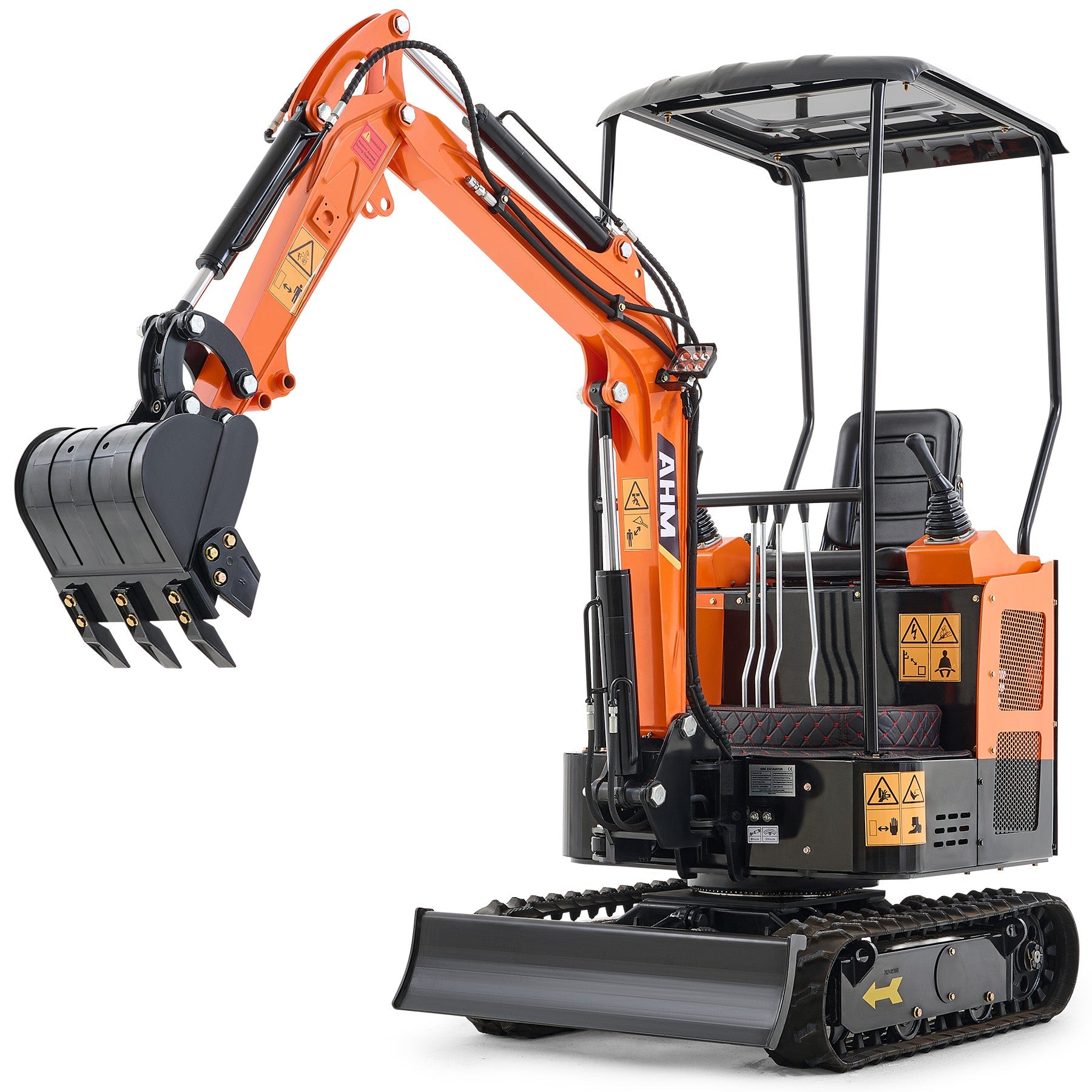

AX-16C | 23 HP B&S Engine Mini Excavator with Swing Boom

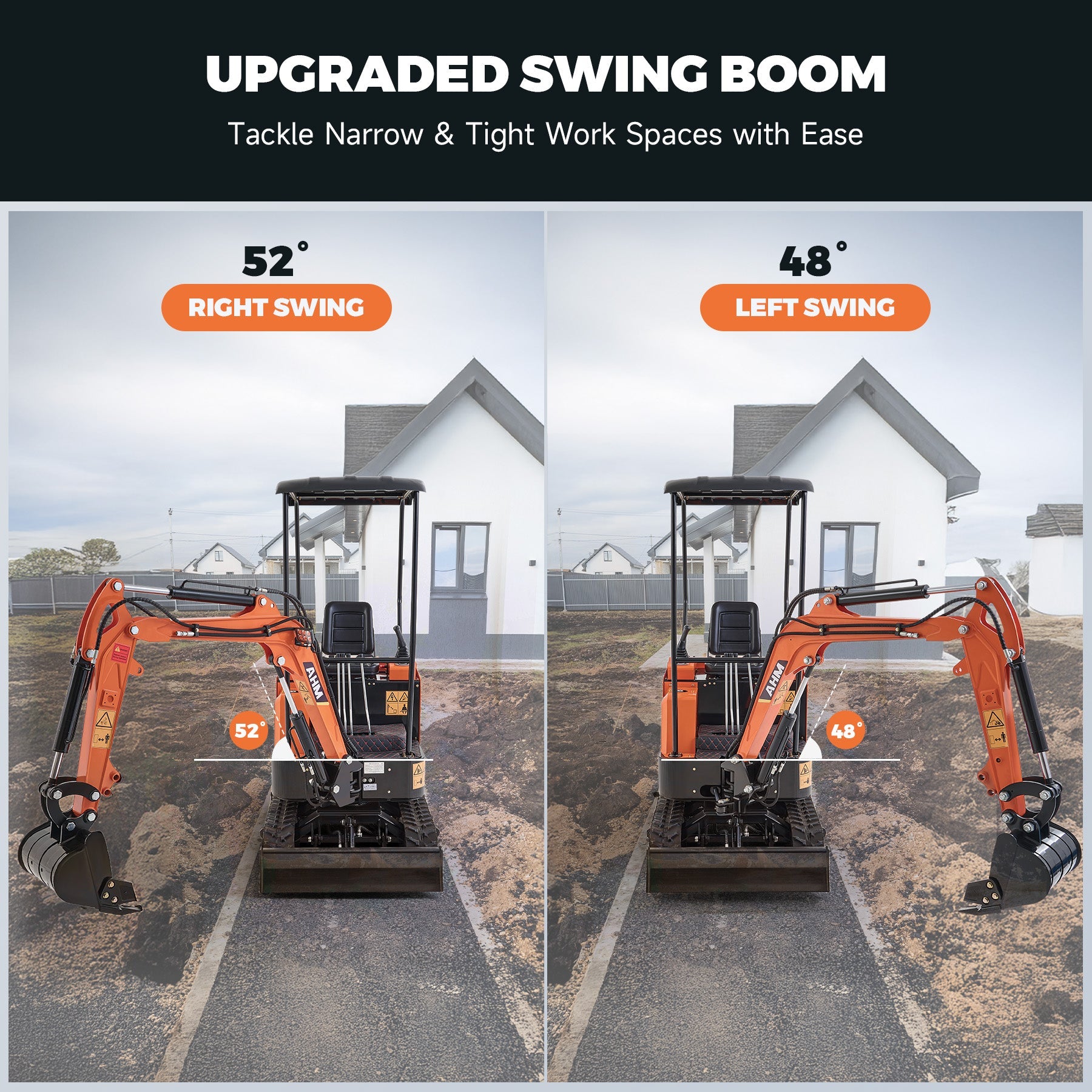

The AHM AX-16C 23 HP B&S gasoline mini excavator features its upgraded swing boom, letting you dig from any angle without moving the machine. With a 71-inch digging depth, 114-inch max digging radius, and just 3'33" wide, this little beast handles cramped areas like a champ. It lifts up to 265 lb and won't mess up your site thanks to its reduced tail-swing. For a powerful, versatile mini excavator that gets things done, the AX-16C is the upgrade you're looking for.

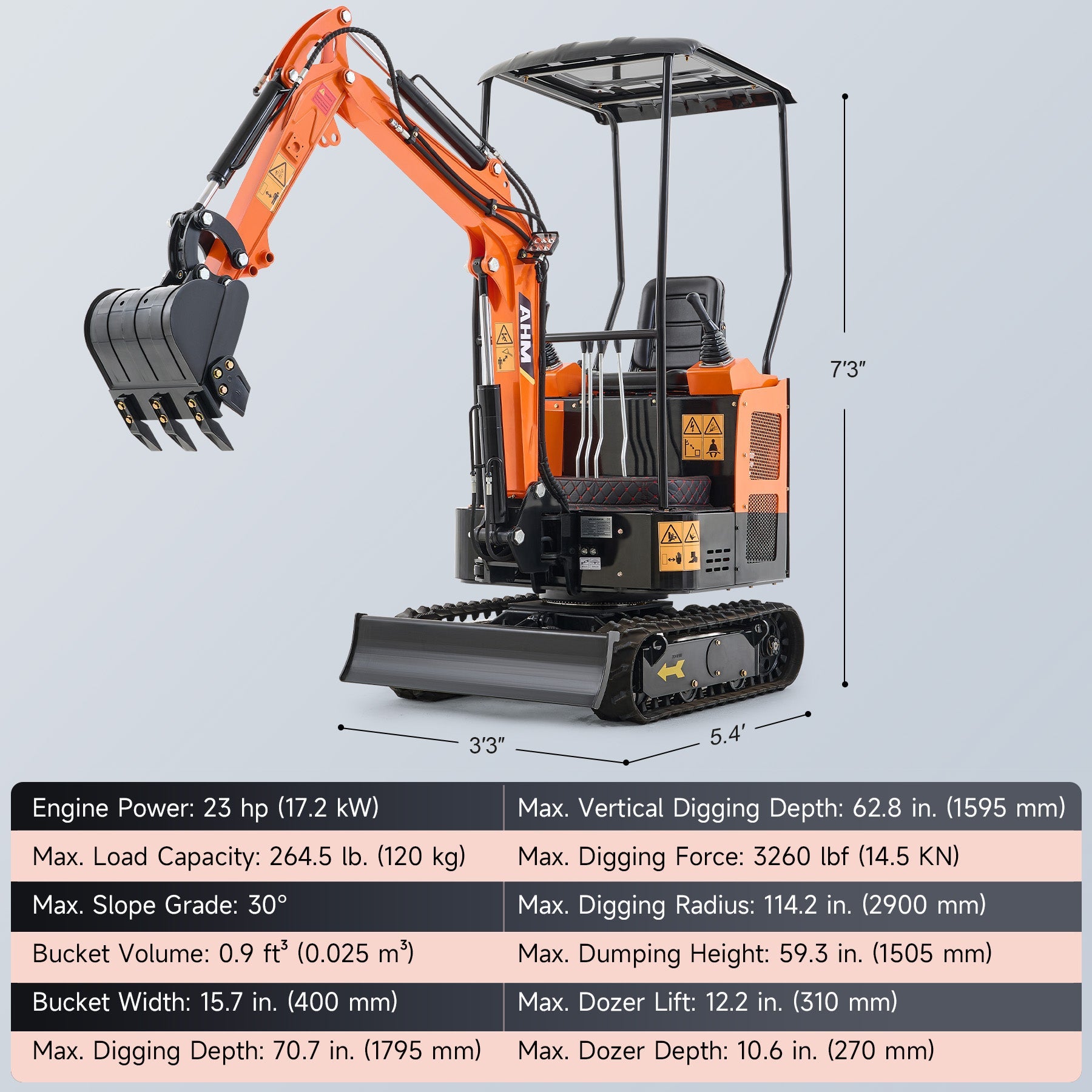

Specification

• Material: Steel, Rubber
• Engine Power: 23 hp (17.2 kW)
• Max. Load Capacity: 265 lb. (120 kg)
• Max. Slope Grade: 30°
• Bucket Volume: 0.88 ft³ (0.03 m³)
• Bucket Width: 15.7 in. (400 mm)
• Max. Digging Depth: 71 in. (1795 mm)
• Max. Digging Force: 3262 lbf (14.5 kN)
• Max. Digging Radius: 114.2 in. (2900 mm)
• Max. Dumping Height: 59.3 in. (1505 mm)
• Max. Dozer Lift: 12.2 in. (310 mm)
• Max. Dozer Depth: 10.6 in. (270 mm)
• Fuel Consumption: 0.4 gal/h (1.5 L/h)
• Fuel Tank Volume: 1.84 gal. (7 L)
• Warranty: 1 Year

Package List

• 1x Mini Excavator
• 1x Hydraulic Oil Filter
• 4x Pipe Clamps
• 4x Grease Fittings
• 1x Grease Gun
• 1x Hard Pipe Nozzle
• 1x Flexible Pipe Nozzle
• 1x Adjustable Wrench
• 1x L-Shaped Wrench
• 1x Grease
• 1x Wrench Set
• 1x Hardware Package
• 1x Instruction Manual
