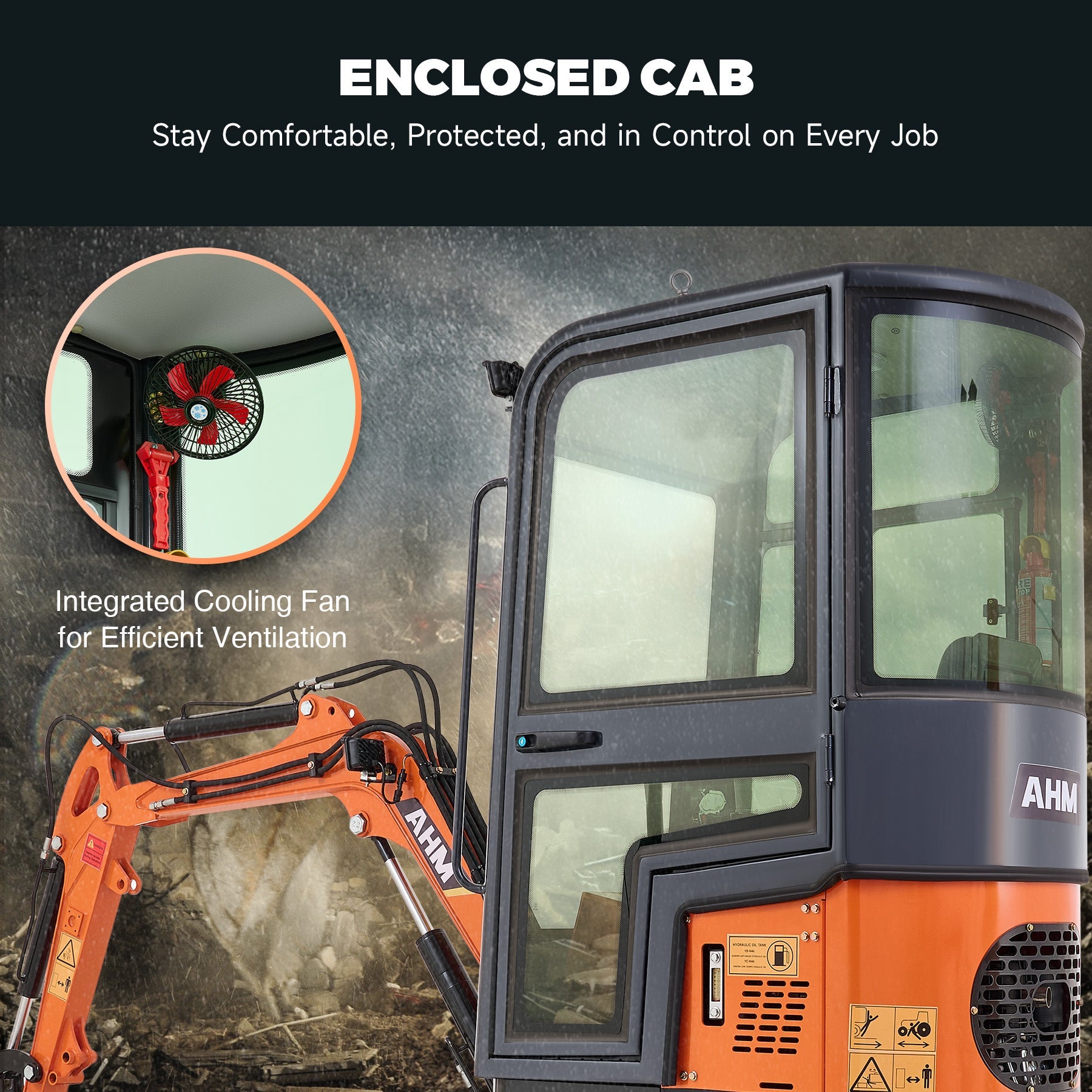

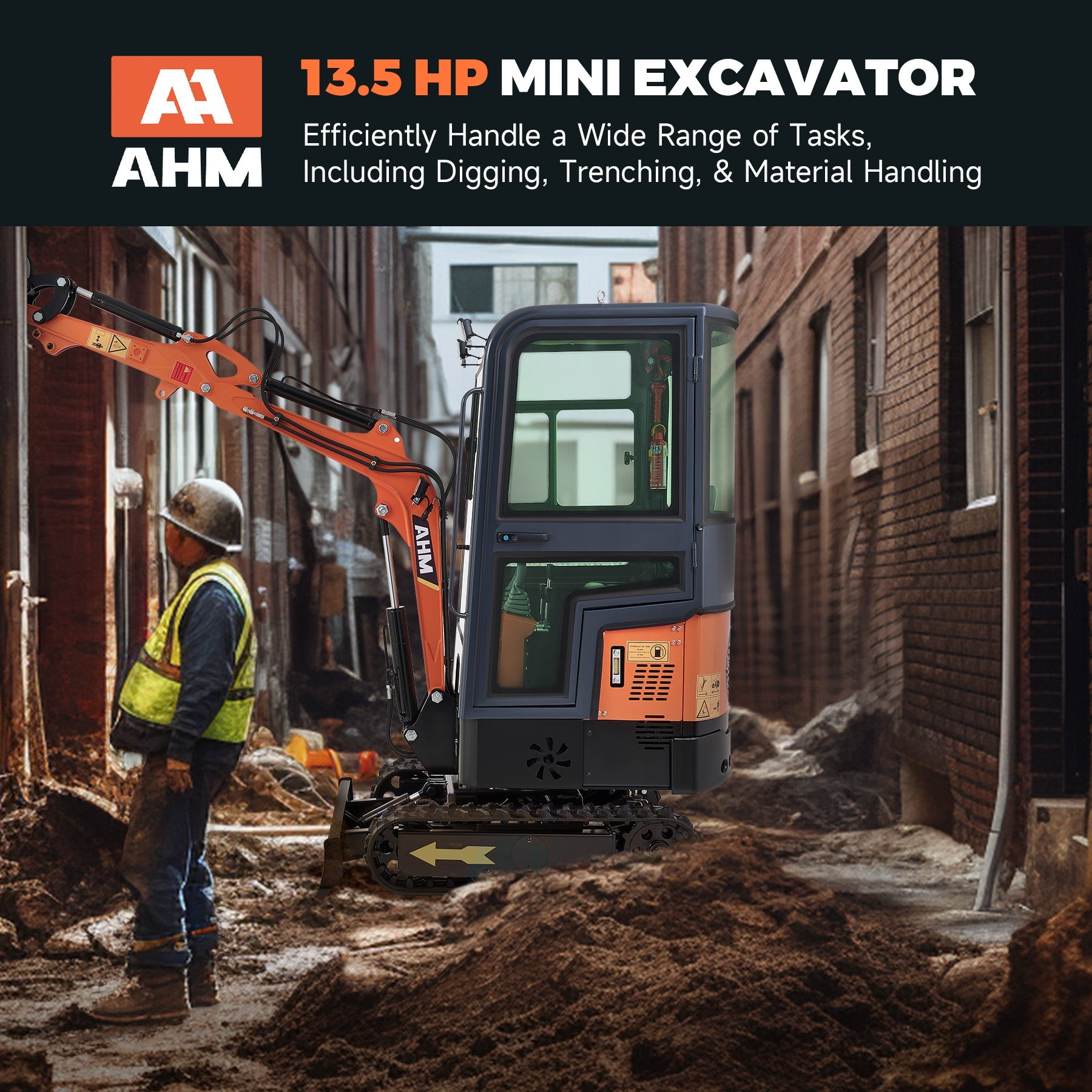

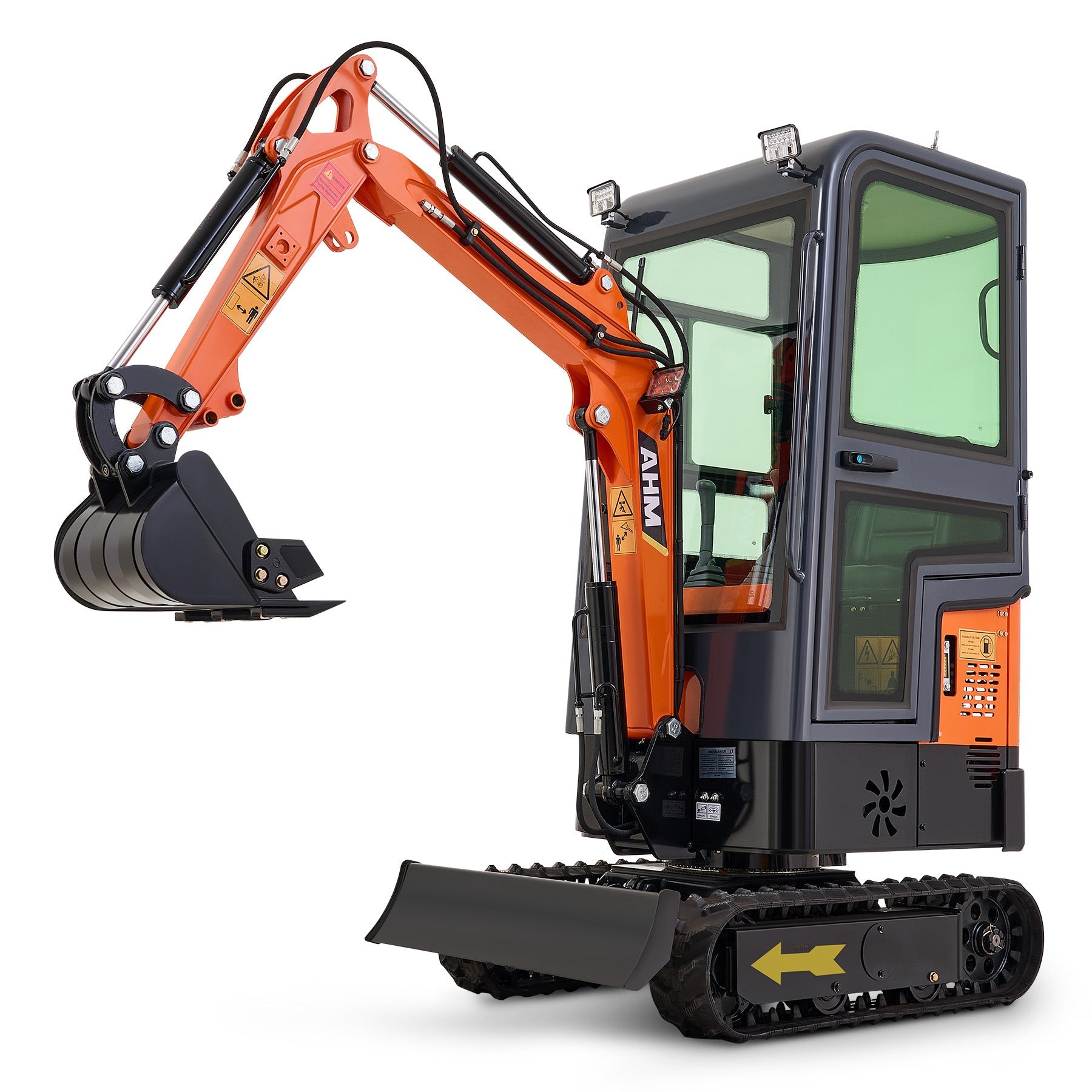

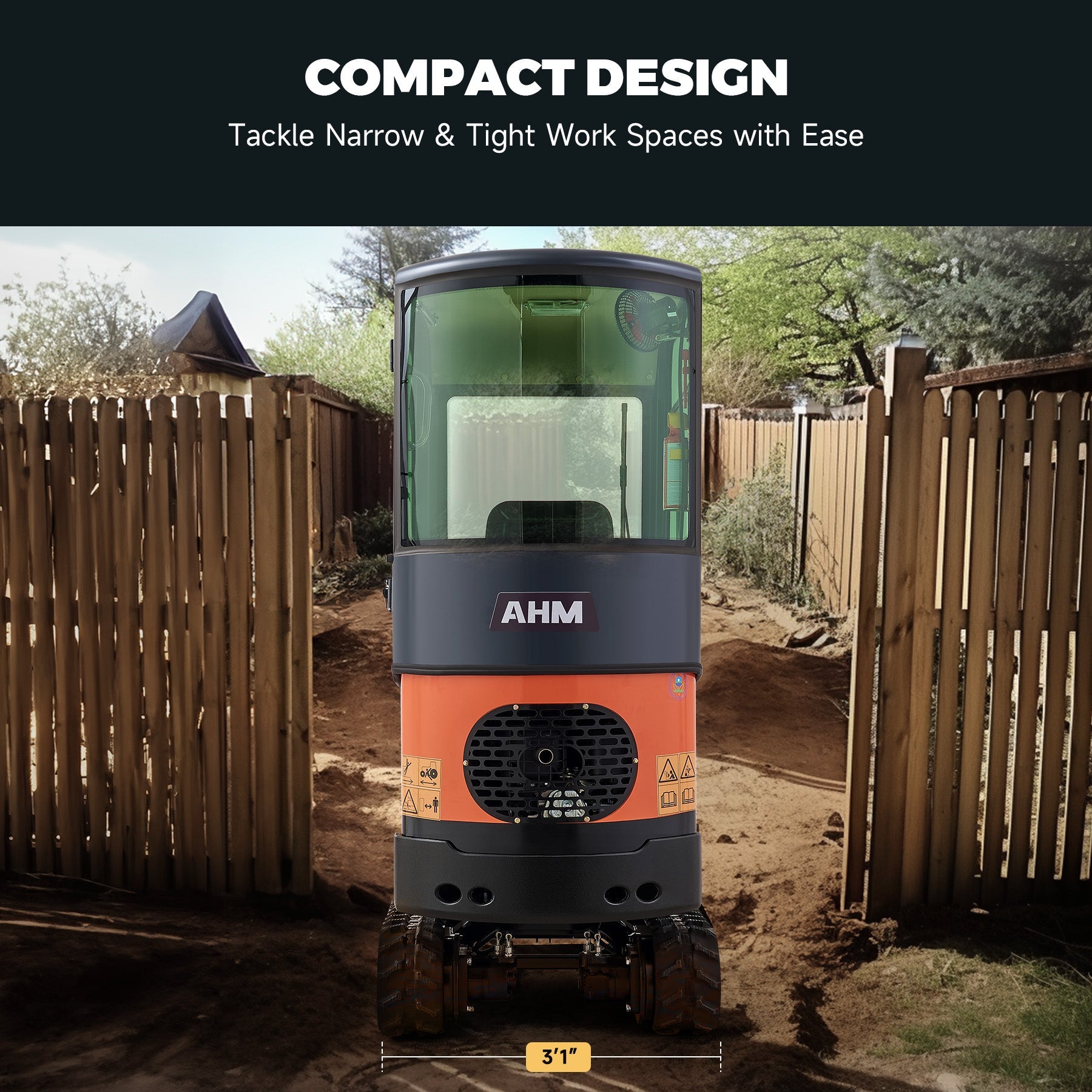

AX-12C | 13.5 HP B&S Engine Mini Excavator with Enclosed Cab

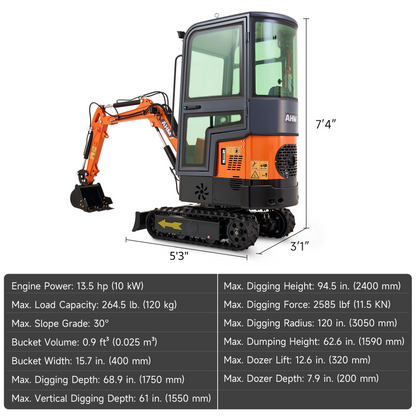

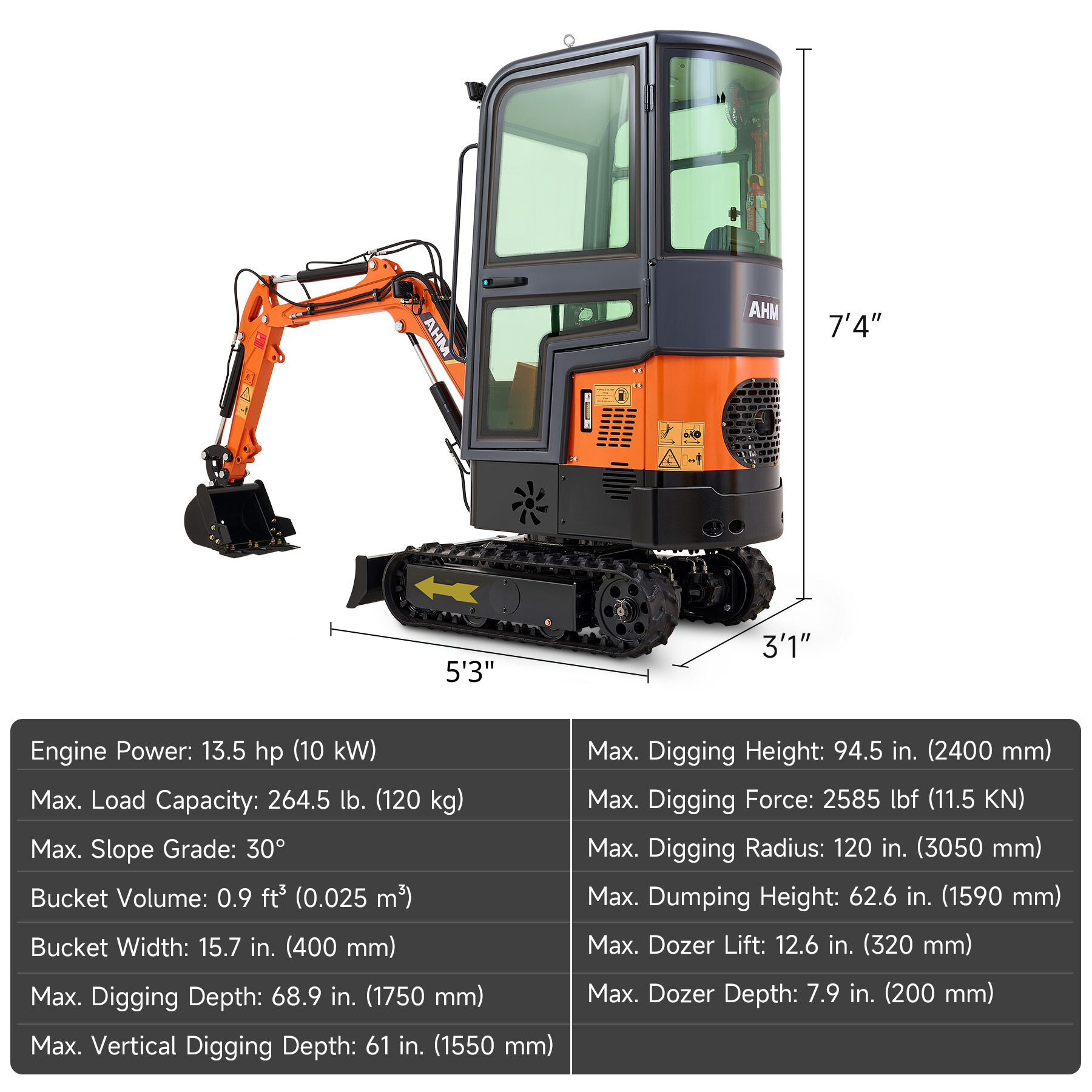

Specification

• Material: Steel, Rubber
• Engine Power: 13.5 hp (10 kW)
• Max. Load Capacity: 265 lb. (120 kg)
• Max. Slope Grade: 30°
• Bucket Volume: 0.88 ft³ (0.03 m³)
• Bucket Width: 15.7 in. (400 mm)
• Max. Digging Depth: 69 in. (1750 mm)
• Max. Vertical Digging Depth: 61 in. (1550 mm)
• Max. Digging Height: 94.5 in. (2400 mm)
• Max. Digging Force: 2585 lbf (11.5 KN)
• Max. Digging Radius: 120.1 in. (3050 mm)
• Max. Dumping Height: 62.6 in. (1590 mm)
• Max. Dozer Lift: 12.6 in. (320 mm)
• Max. Dozer Depth: 7.9 in. (200 mm)
• Fuel Consumption: 0.26 gal/h (1 L/h)
• Fuel Tank Volume: 1.74 gal. (6.6 L)
• Warranty: 1 Year

Package List

• 1x Mini Excavator
• 1x Hydraulic Oil-Pickup Filter Element
• 1x Tool Box
• 1x Grease Gun
• 1x Lubricating Grease
• 1x Hose Nozzle
• 1x Socket
• 1x Socket Lever
• 3x Nuts
• 4x Grease Fittings
• 4x Pipe Clamps
• 6x Wrenches
• 1x Instruction Manual
