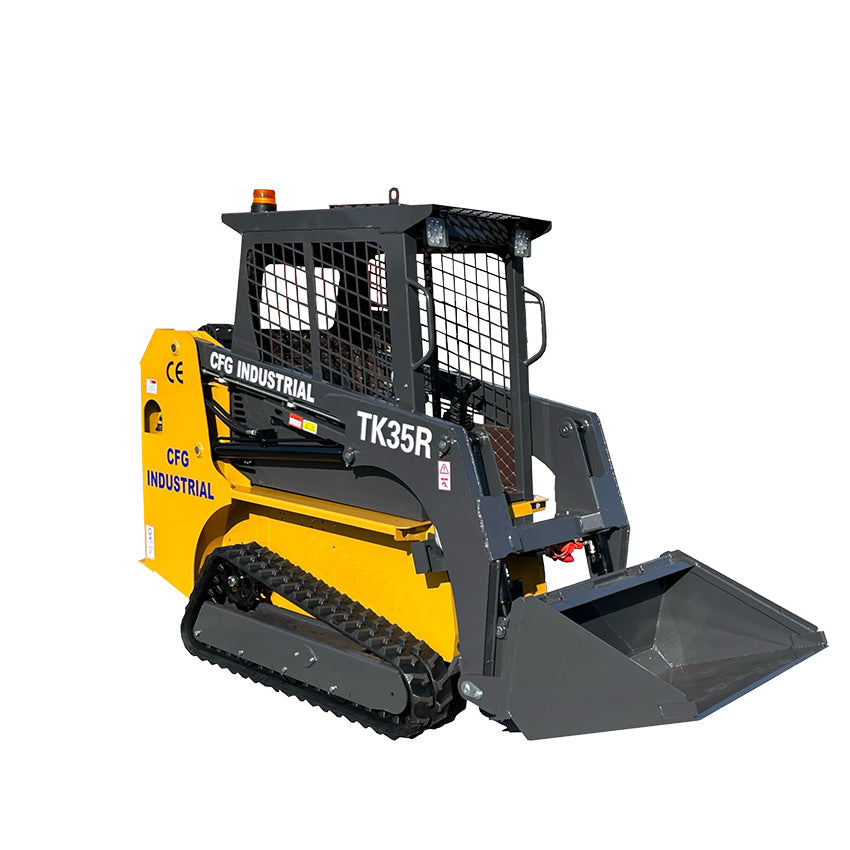

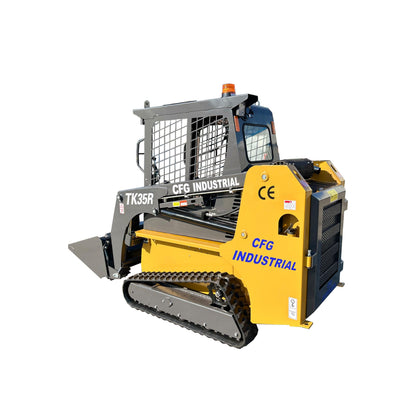

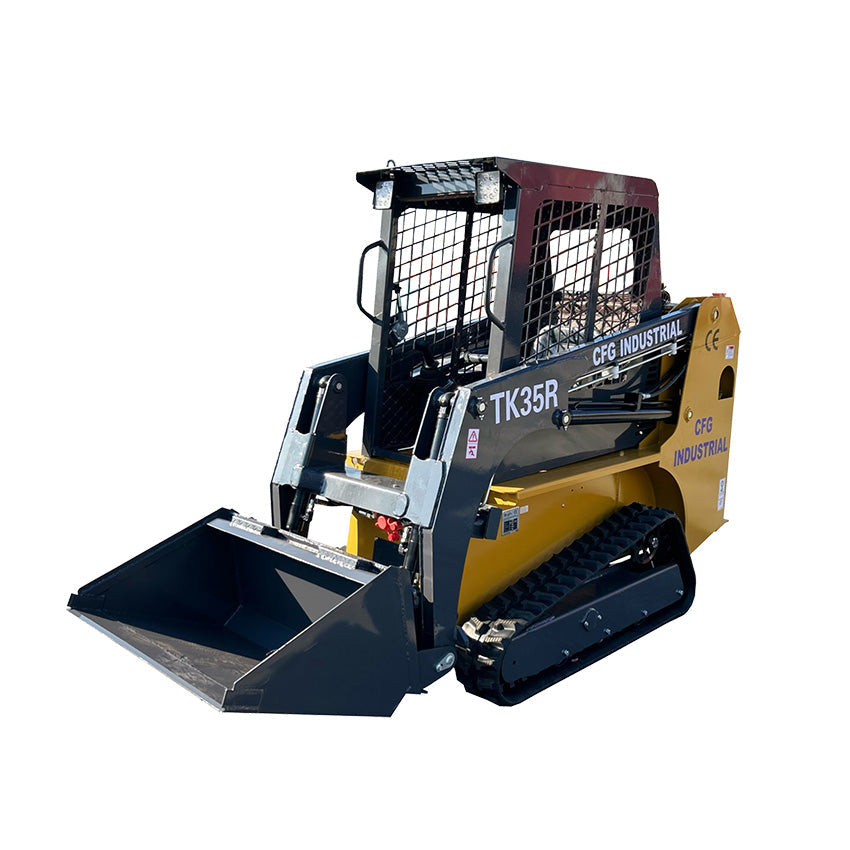

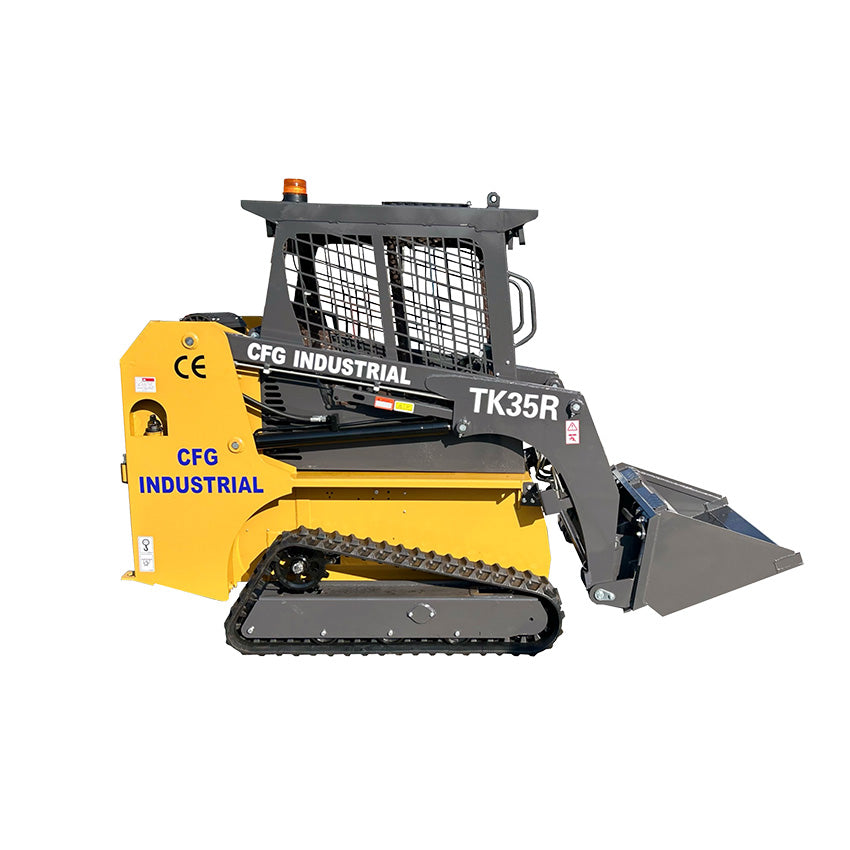

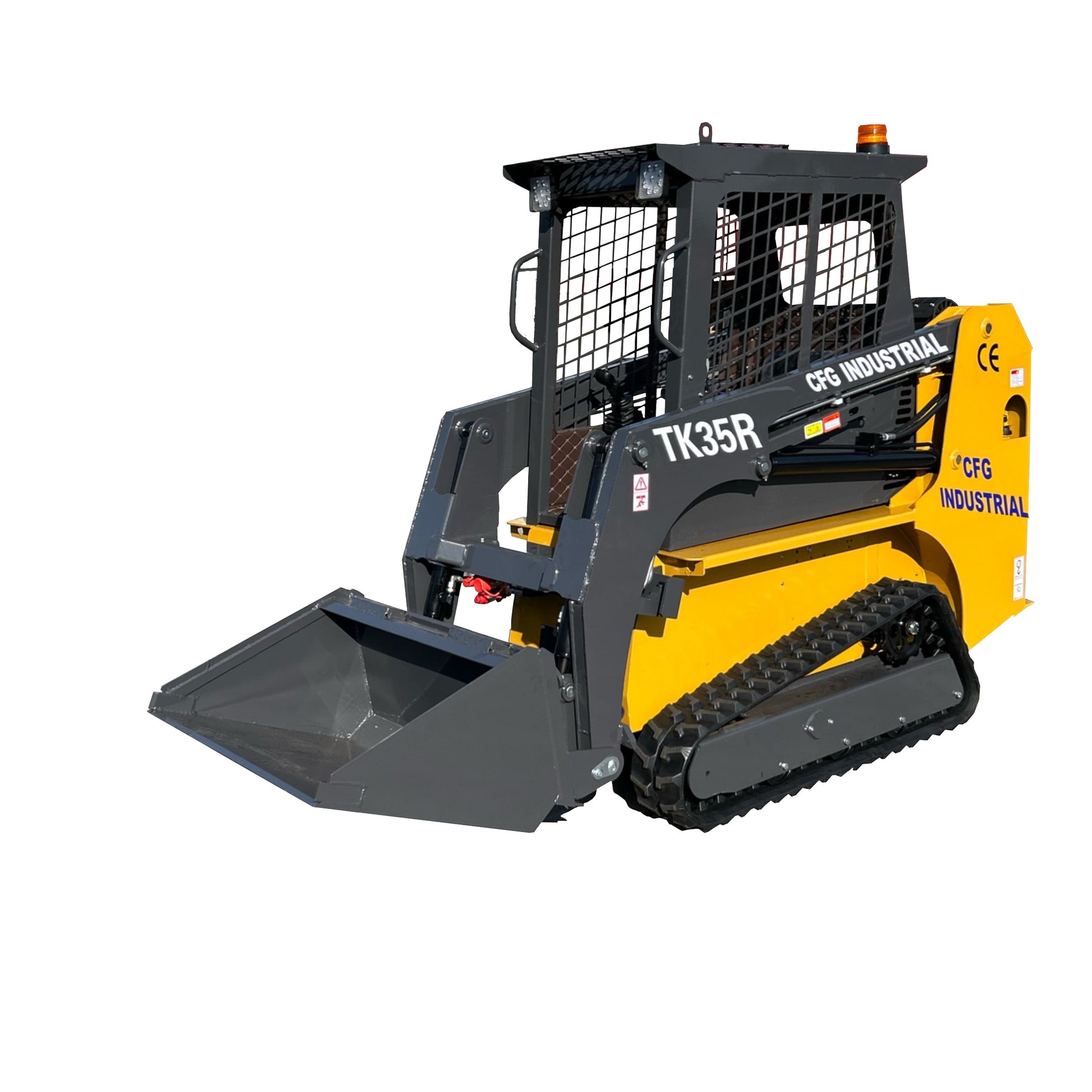

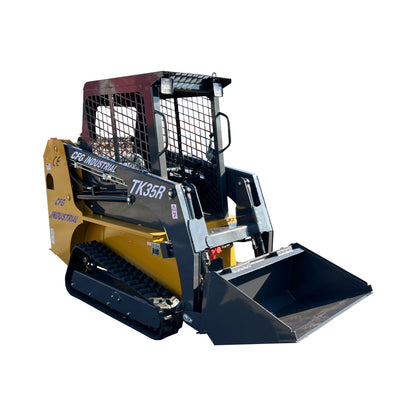

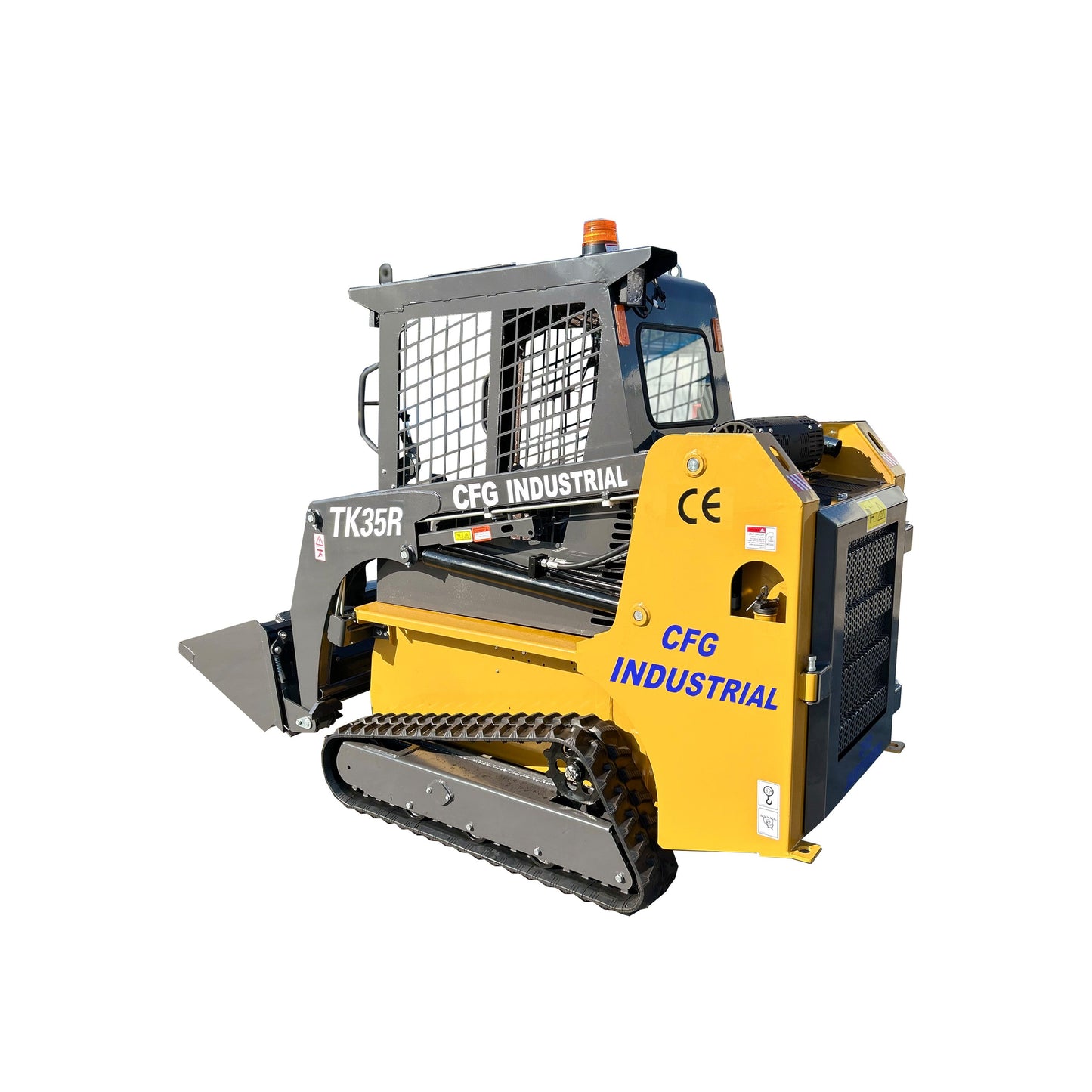

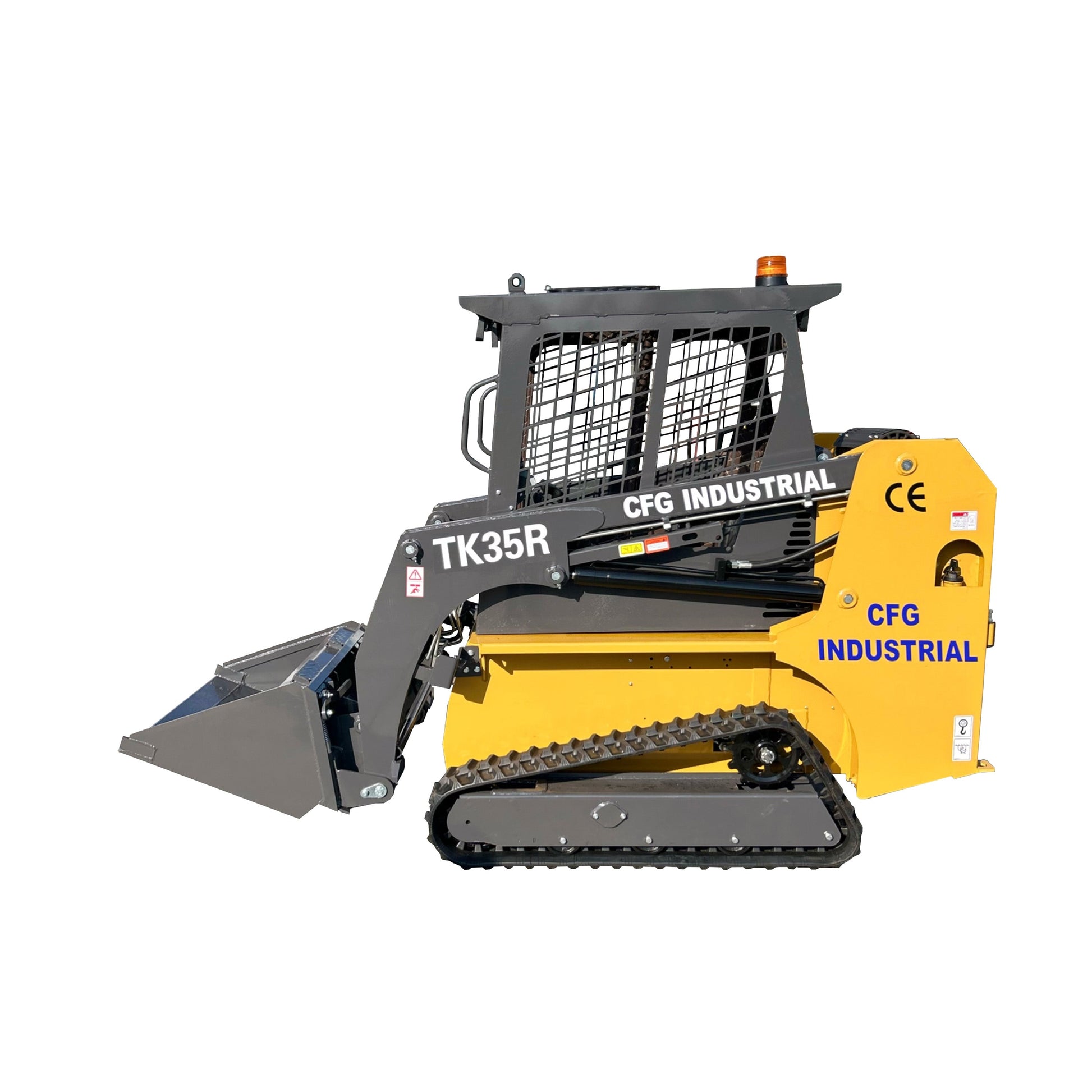

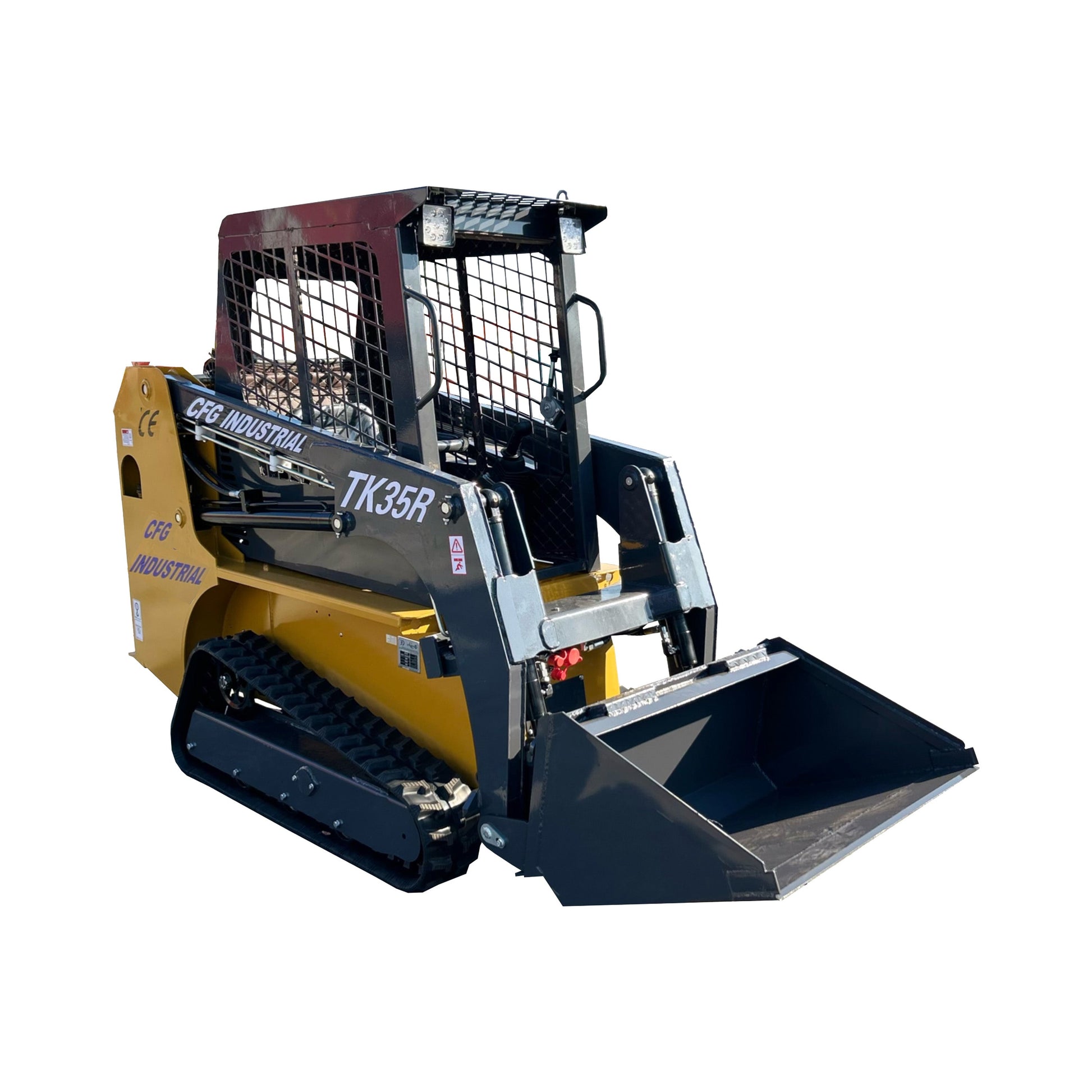

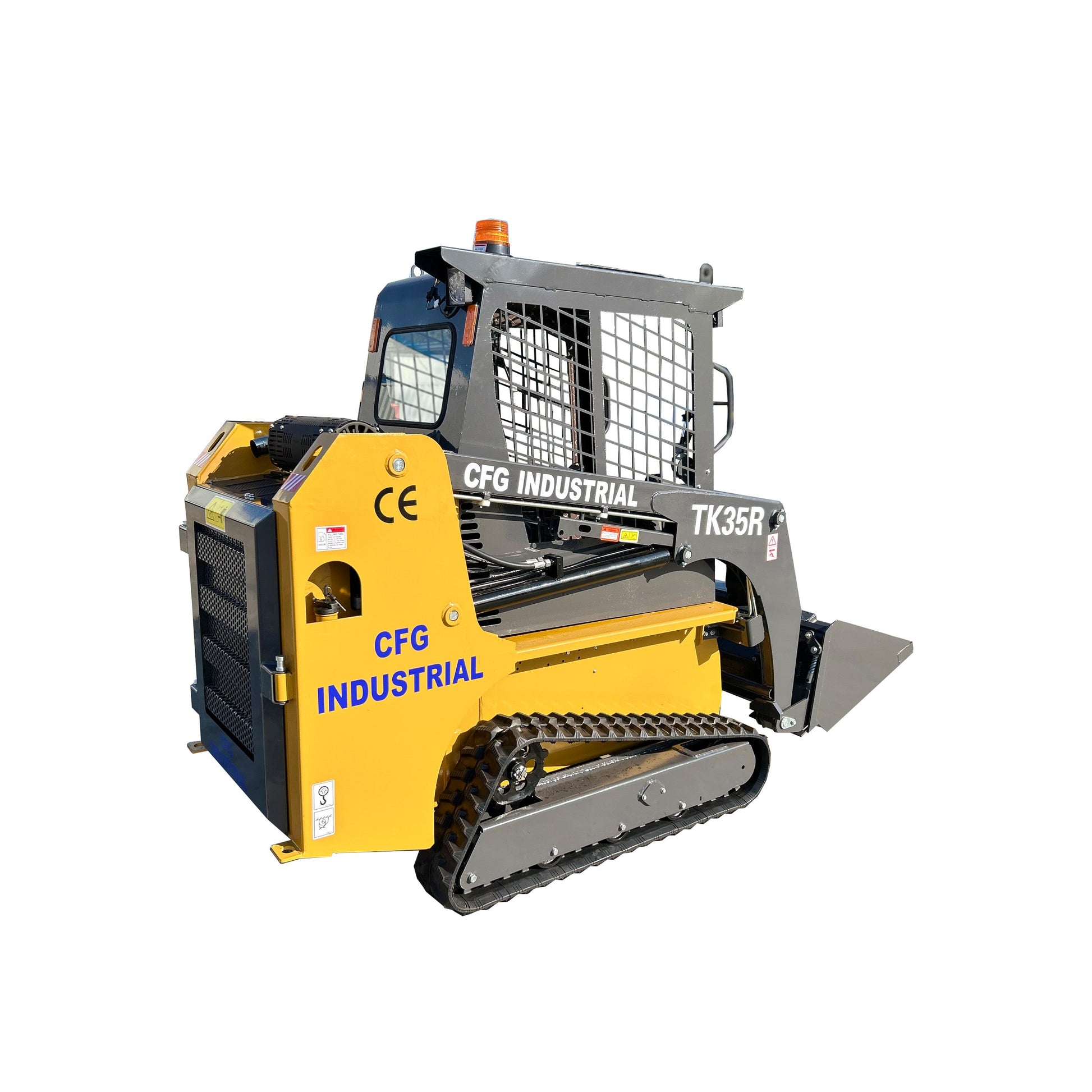

AGT-TK35R 1550 KG Stand-On Mini SKid Steer With RATO Engine

Technical Data:

• Model Information: TK35R

Basic Performance Parameters

• Working Weight(kg): 1550
• Bucket capacity(m³): 0.16
• Travel speed low/high speed(Km/h): 4.5
• Maximum lifting force (Kg): 380
• A Maximum working height(mm): 3686
• H Maximum unloading height(mm): 1933
• I Loading distance at maximum unloading height (mm): 650
• L Wheelbase(mm): 1127
• M Ground clearance(mm): 145
• G Bucket discharge angle: 40°

Equipment Body

• U Bucket width(mm): 950
• F Overall Length(mm): 2911
• T Overall Width(mm): 912
• C Overall Height(mm): 910
• R Rear axle to bumper(mm): 1860

Engine

• Engine Brand: Rato999
• Maximum horsepower(Ps): 32.8
• Maximum power(Kw): 24
• Cooling method: Fan cooling
• Fuel Type: Gasoline

Fuel tank

• Fuel tank(L): 20L
