Compact Track Loader - QSF2.8t4TC74

Introducing the high-performance QSF2.8t4TC74 Compact Track Loader, designed for demanding applications with excellent power and versatility. Equipped with a 74.8 HP engine and a turbocharged intake system, this loader delivers exceptional torque and efficiency, meeting EPA emission standards for environmentally-friendly operation.

This compact loader is track-driven with 1782 mm track width, providing enhanced stability and traction on various surfaces, especially in tough off-road conditions. It is also equipped with dual-path high-flow hydraulic output, ensuring you can handle attachments and jobs that require additional power.

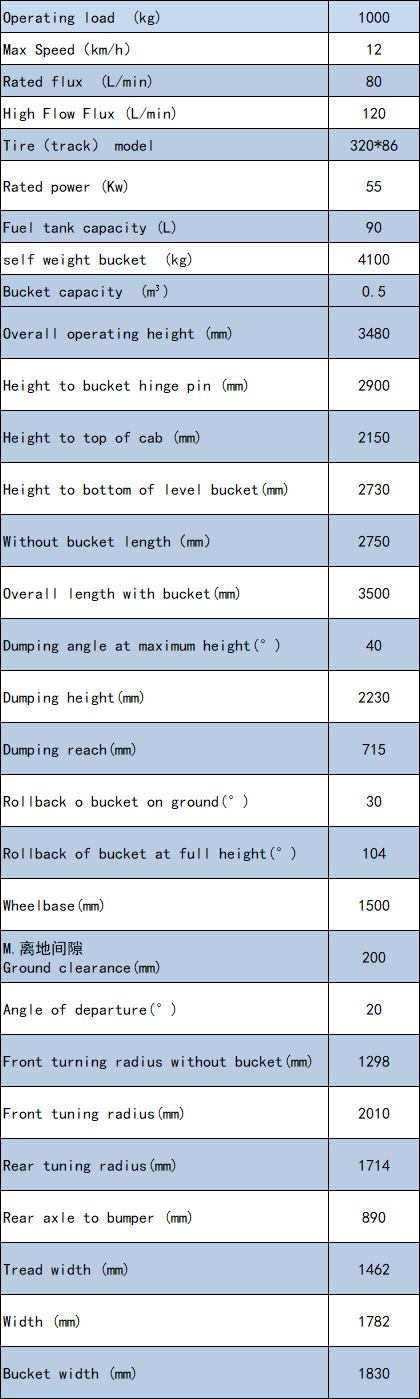

Basic parameters:

• Engine Model: QSF2.8t4TC74 with a 2.8L displacement, providing reliable power and durability.
• Horsepower: 74.8 HP, achieving a rated speed of 2500 RPM.
• Rated Load Capacity: 1000 kg with a maximum breakout force of 21 kN, ensuring powerful lifting and digging capabilities.
• Bucket Capacity: 0.5 m³, perfect for handling various materials with ease.
• Hydraulics: Featuring a high-quality Rexroth hydraulic pump and Husco valve, ensuring smooth and responsive operation.
• Gear Motor: Rexroth Dual Gear, offering superior efficiency for demanding tasks.
• Operating Weight: 4100 kg, providing the stability needed for heavy-duty operations.

Dimensions & Handling:

• Overall Dimensions: 3650x1880x2160 mm (with standard bucket).
• Bucket Width: 1880 mm, giving it excellent material handling capability.
• Travel Speed: 9-18 km/h, with a fast and responsive control system.
• Maximum Operating Height: 4065 mm, making it ideal for working in construction and material handling applications.

Additional Specs:

• Fuel Tank Capacity: 80 liters for extended operation.
• Ground Clearance: 200 mm, ensuring smooth performance across rough terrains.
• Dump Height: 2230 mm with a maximum dump angle of 40°, and 104° bucket flip angle at maximum height for efficient unloading.
• Hydraulic System Pressure: 9-18 bar, offering the necessary power for intensive tasks.
