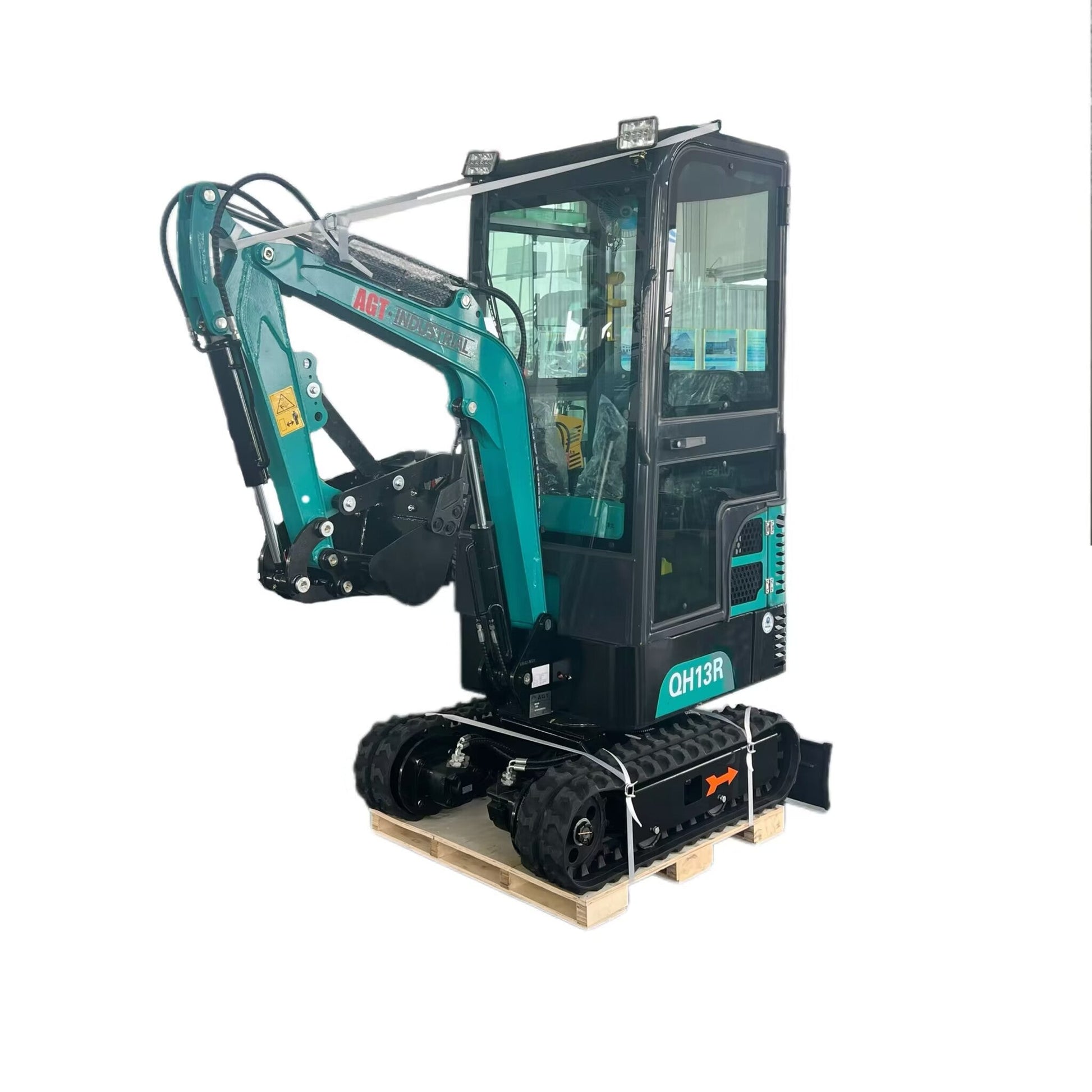

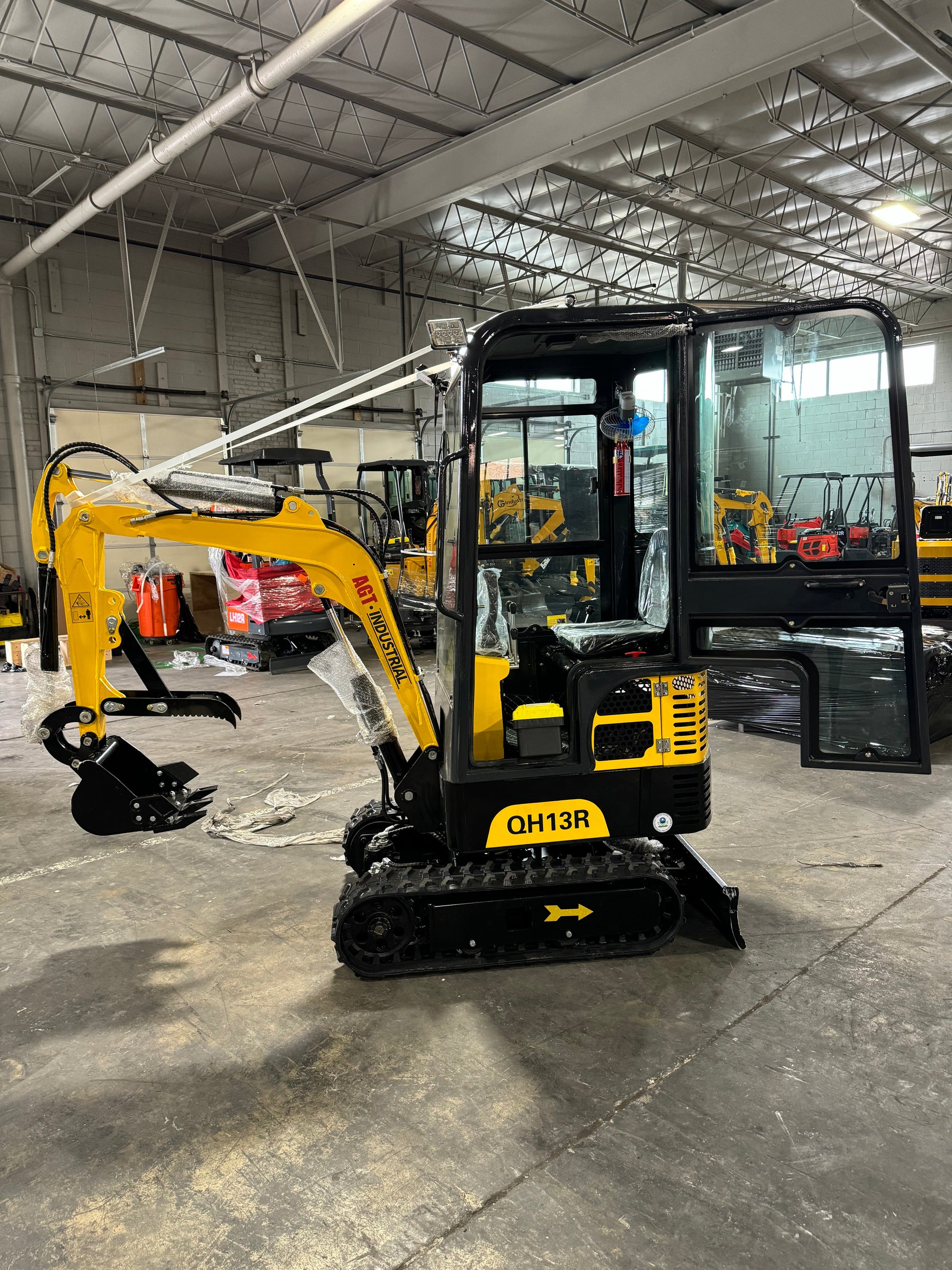

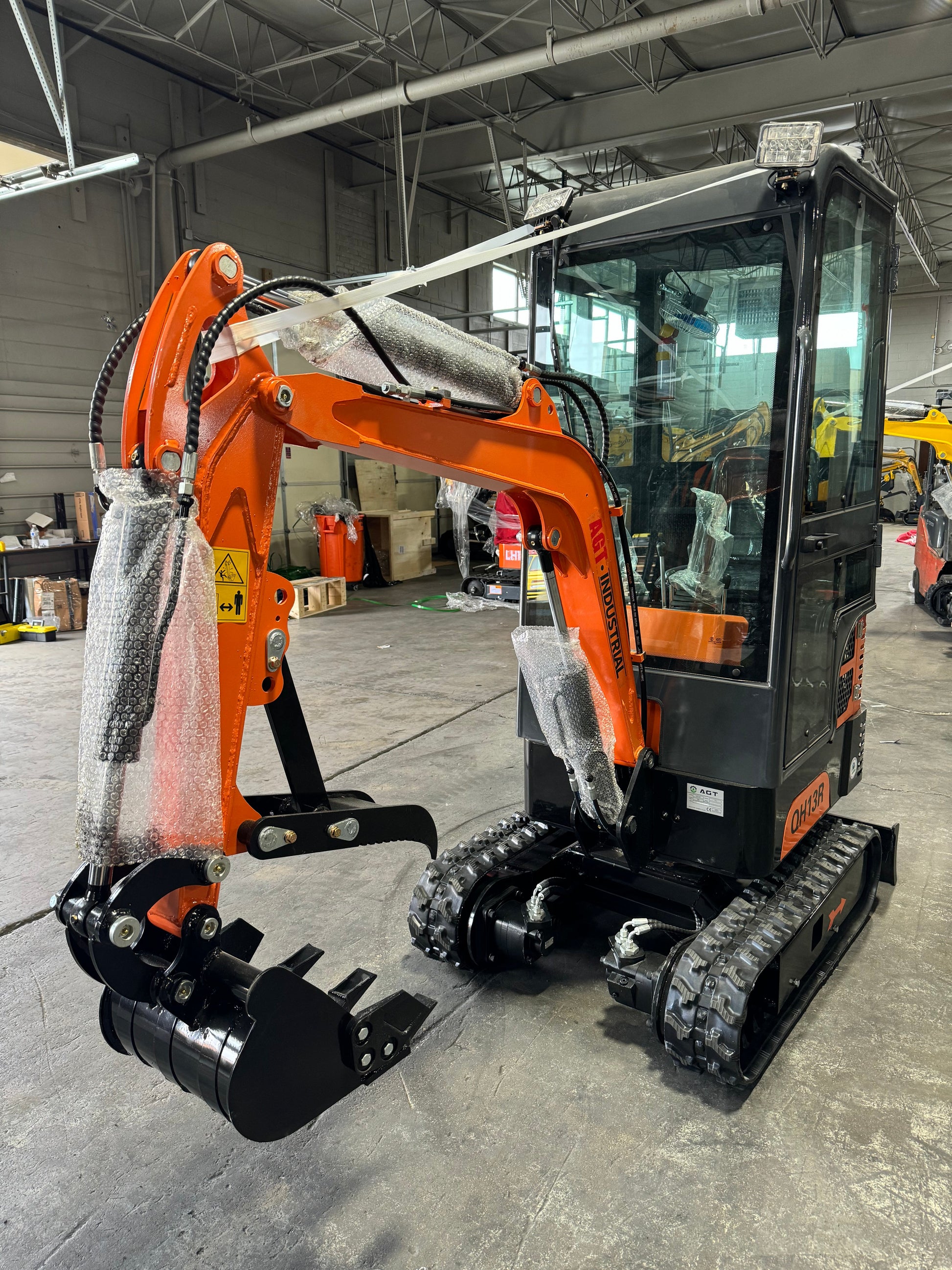

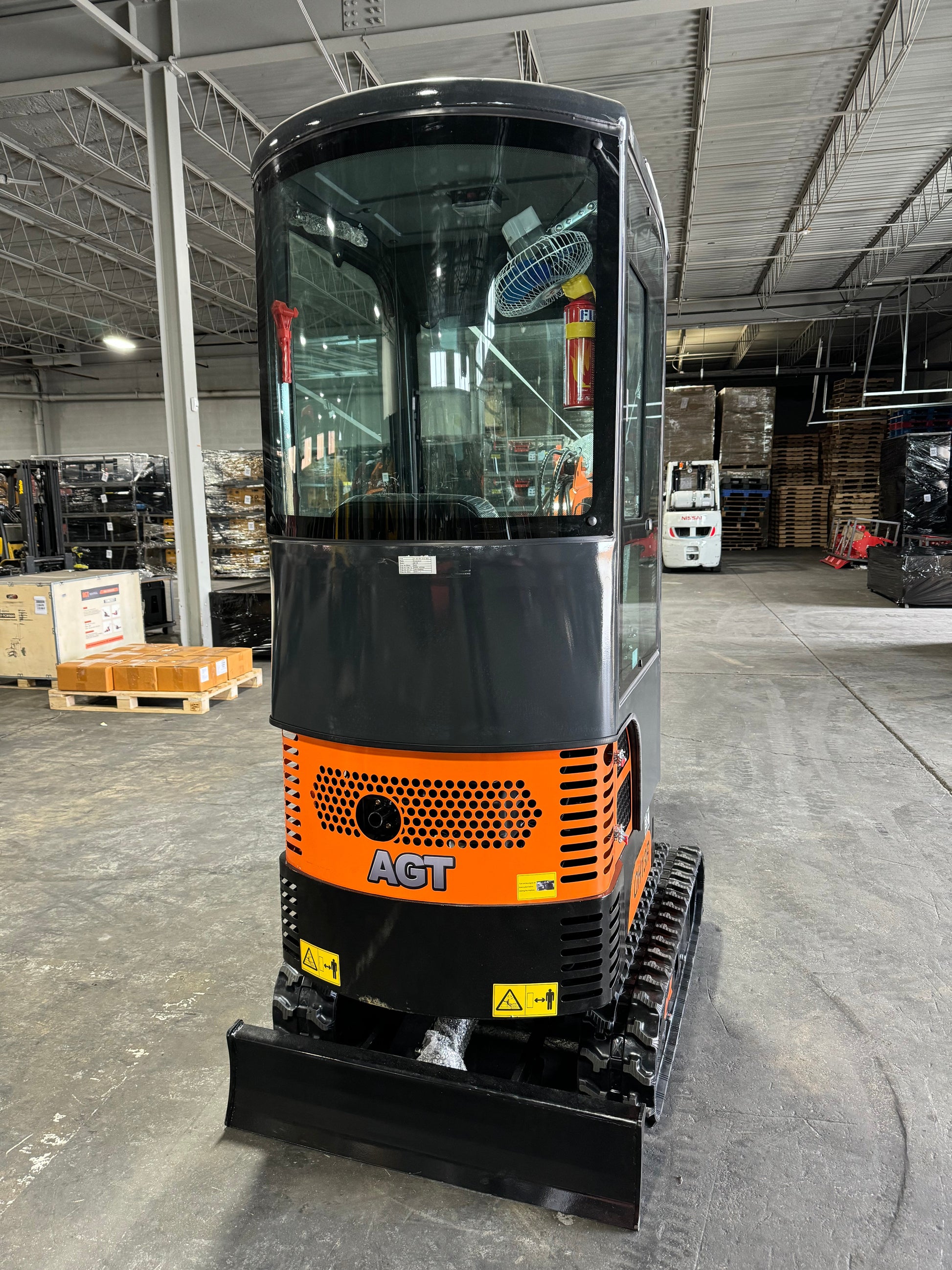

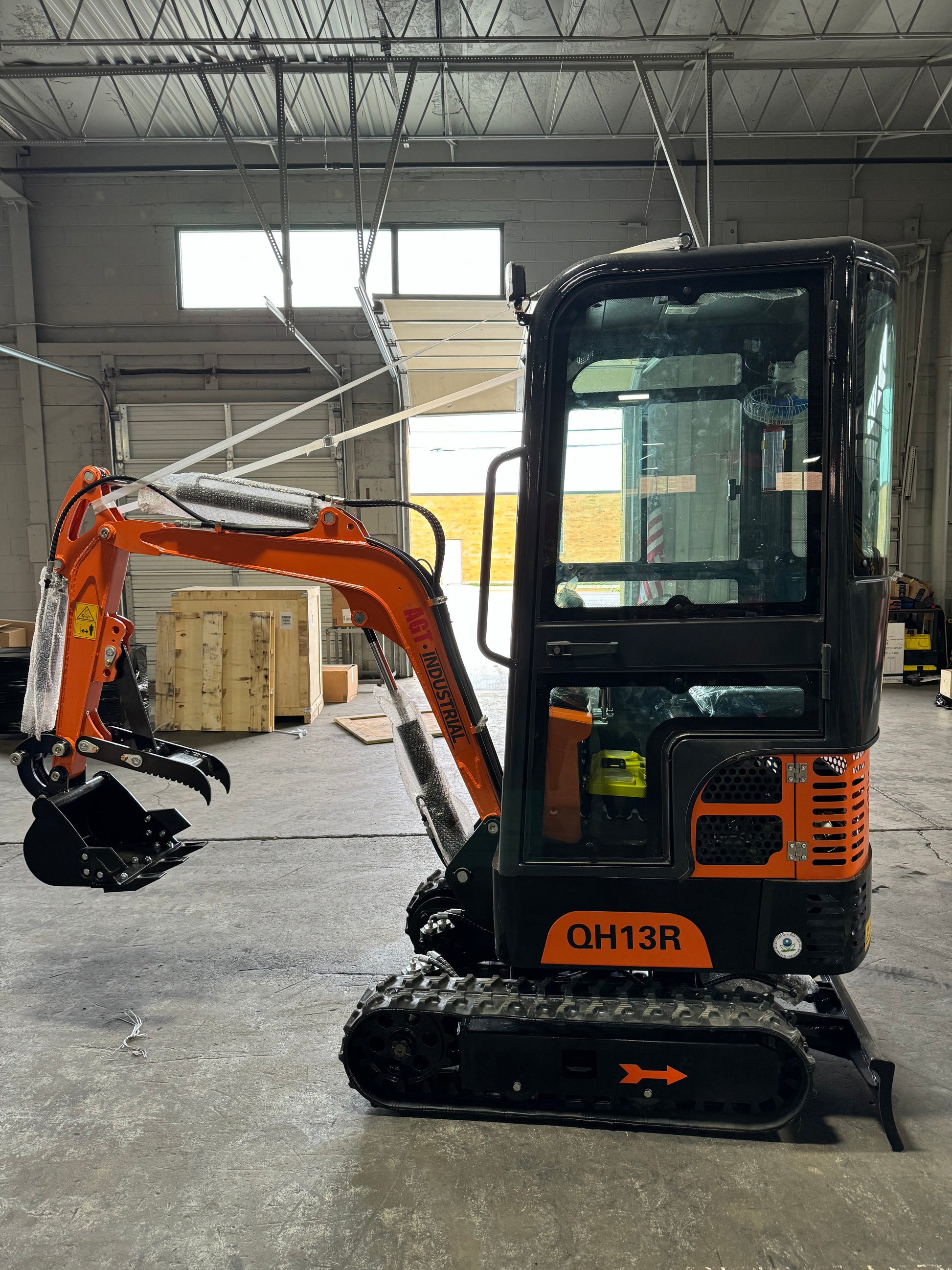

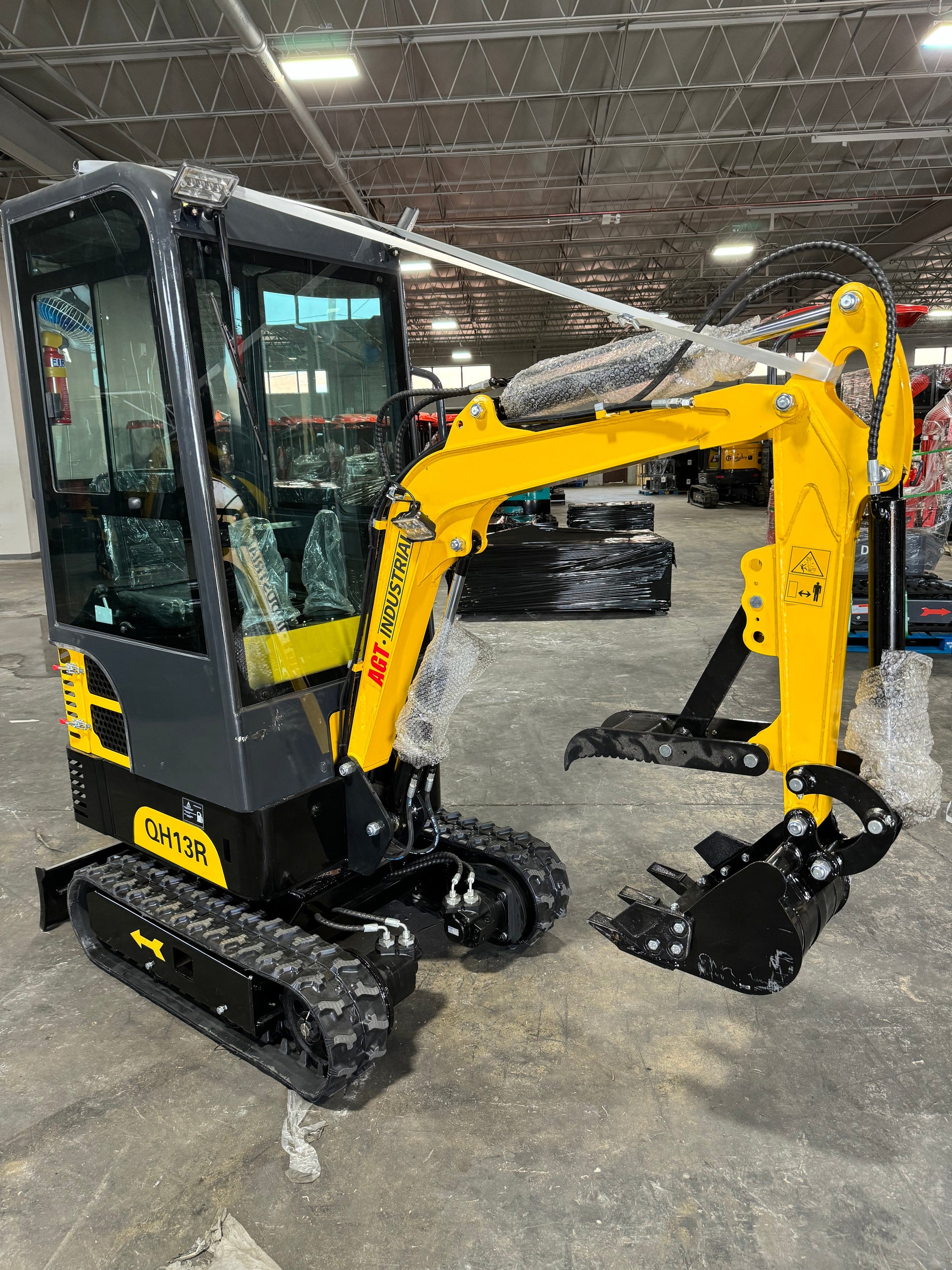

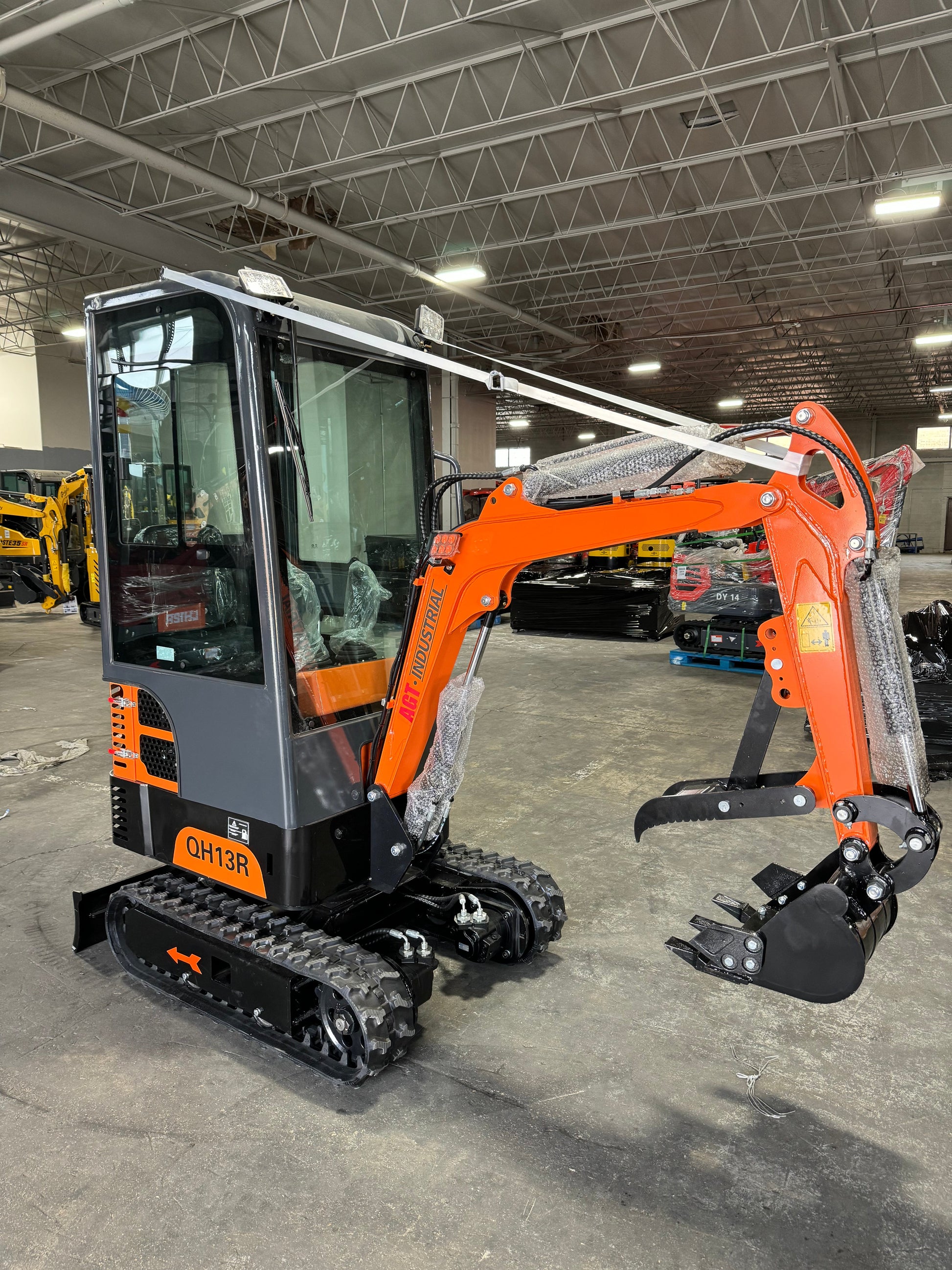

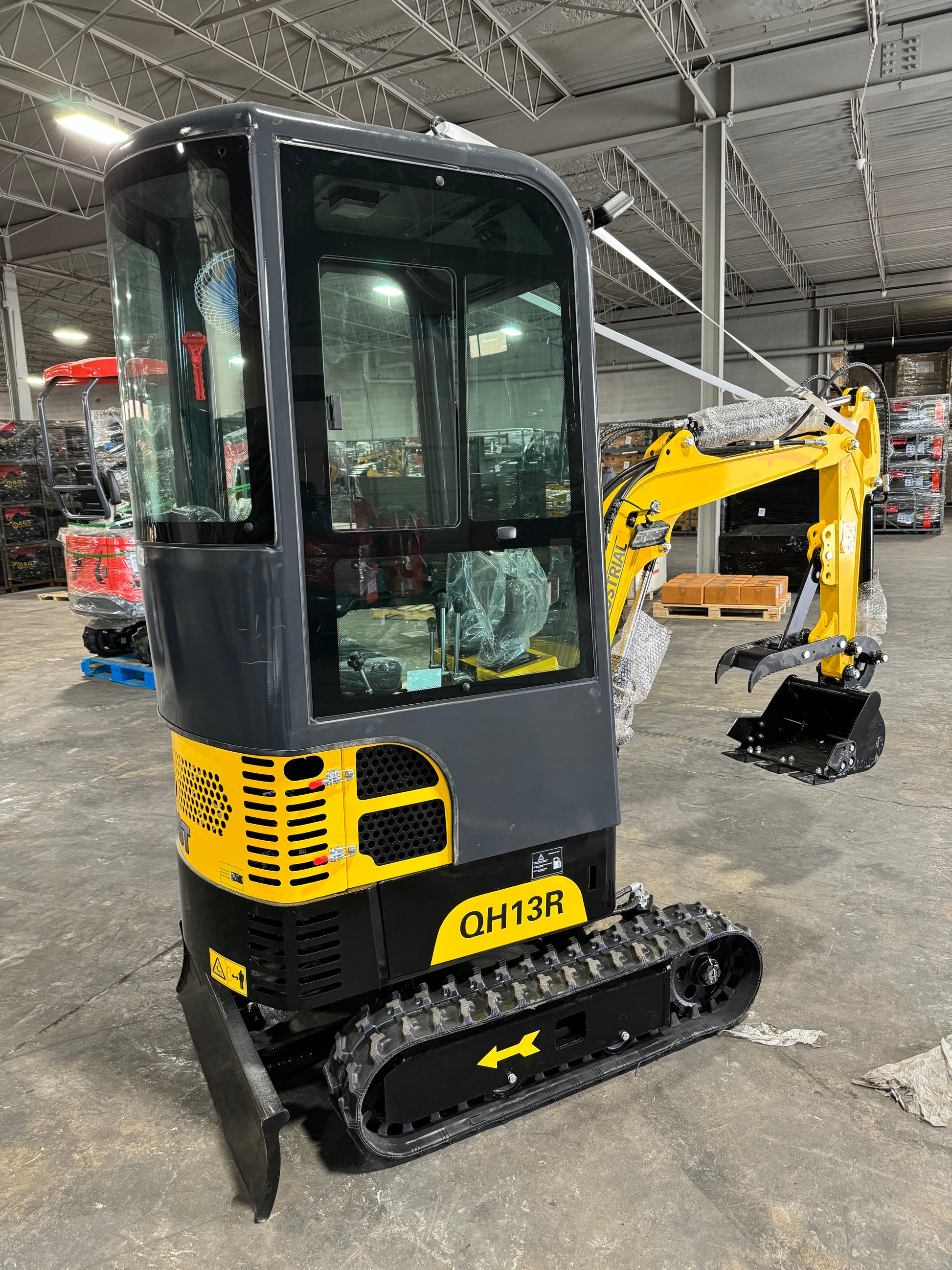

AGT-QH13R 1-Ton 13.5 HP Gasoline Mini Excavator With Enclosed Cab
AGT-QH13R 1-Ton 13.5 HP Gasoline Mini Excavator With Enclosed Cab
Regular price
$3,079.99
Regular price
$7,699.00
Sale price
$3,079.99
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Descriptions:
QH13R small excavators have the following advantages:

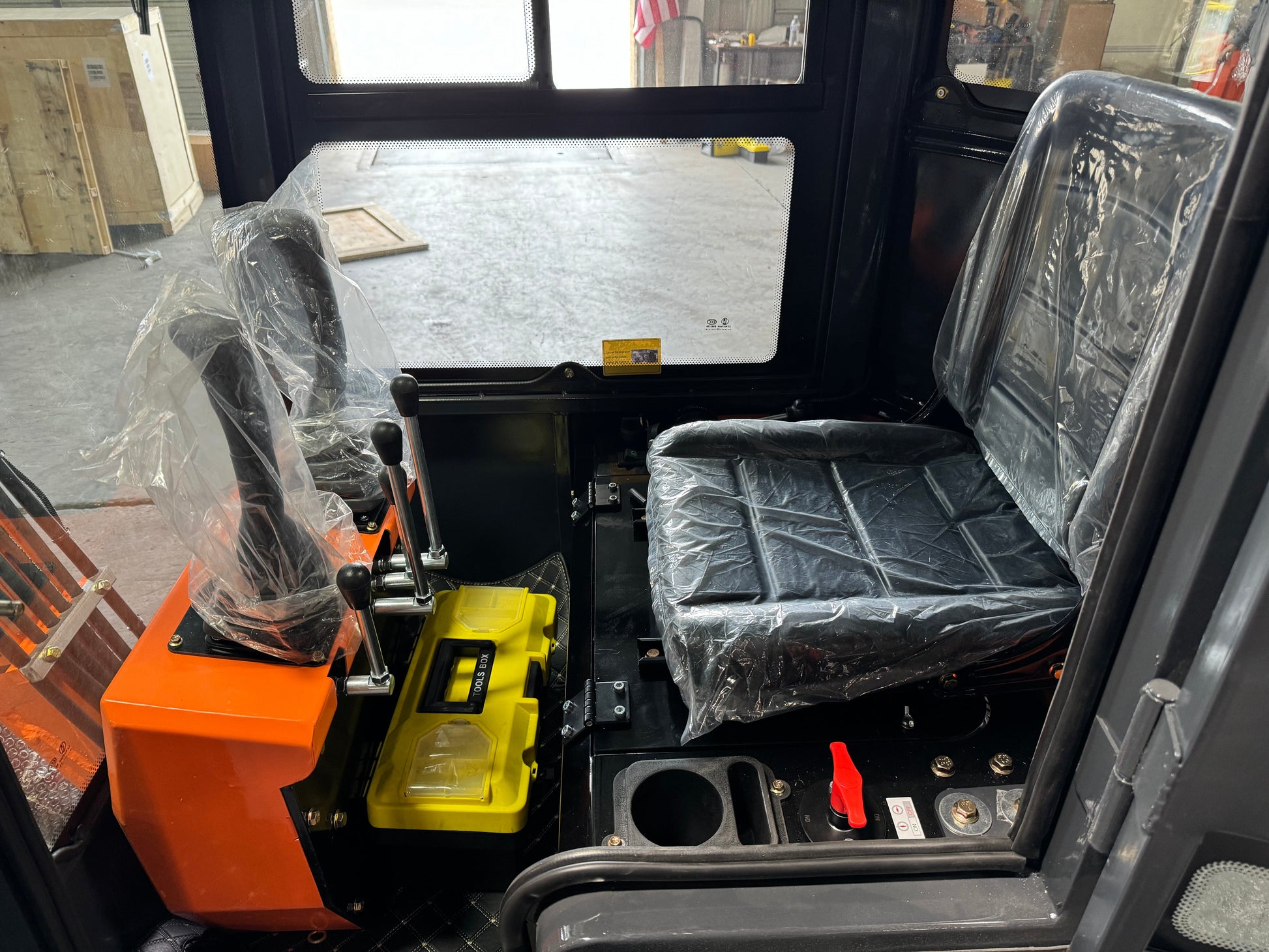

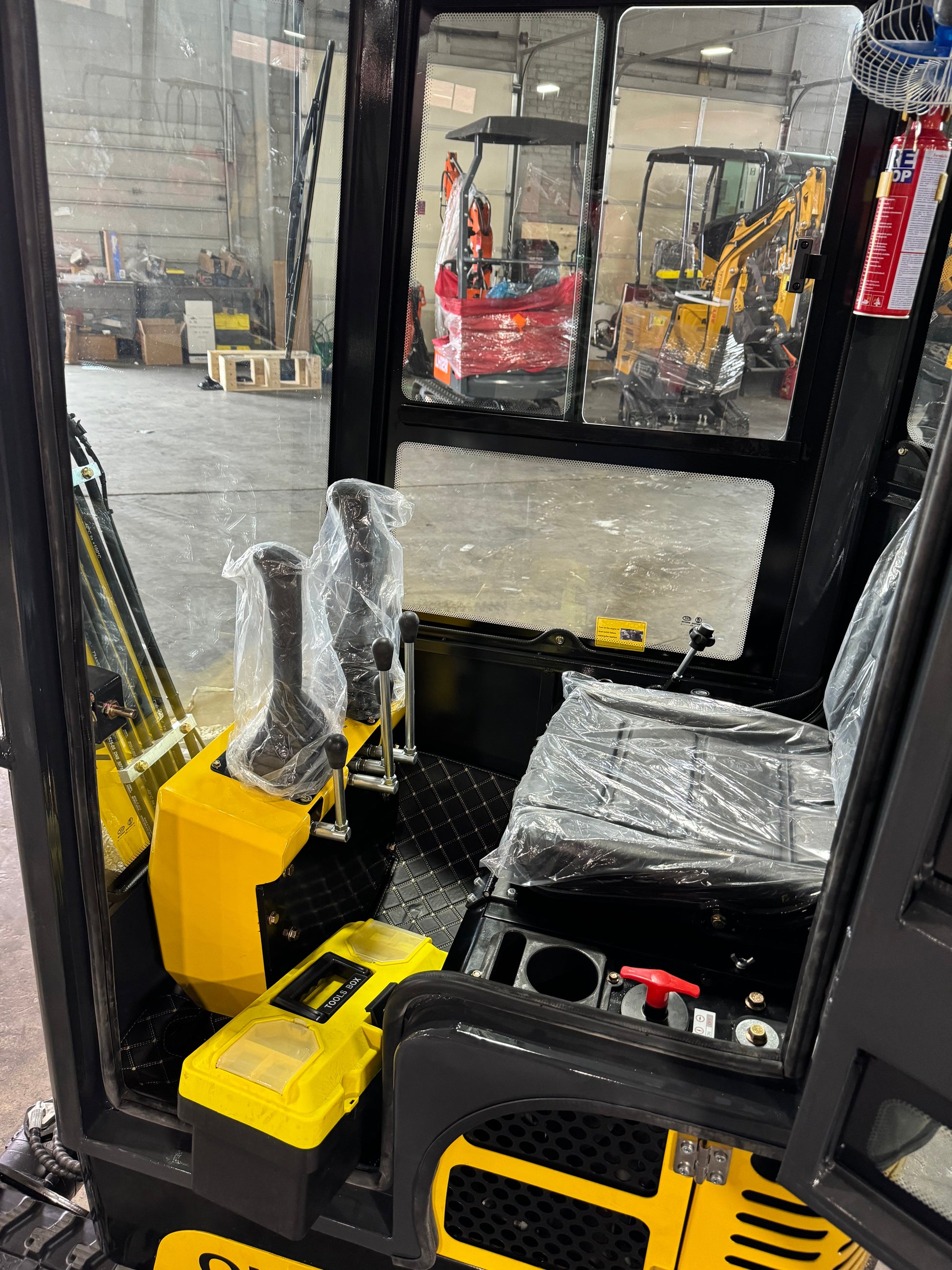

- The cab provides a better operating environment: excavators with cabs provide a closed driving space compared to open excavators, which effectively reduces the impact of noise, dust and other environmental factors on the driver. This makes the operator more comfortable during long hours of operation.
- Provides better visibility and safety: cabs are often designed with large front windshields and side windows that provide better visibility, enabling the operator to see the surroundings and work area more clearly. In addition, cabs can provide additional safety features such as protective doors, seat belts and emergency escape windows for improved operator safety.
- Suitable for complex working environments: Excavators with cabs are suitable for a variety of complex working environments, such as building sites, road construction, mines and farmland. Their compact design makes them easier to access tight spaces and crowded job sites, while providing better flexibility and maneuverability.
Technical Data:
- Working Weight(kg): 960kg
- Bucket capacity(m³): 0.03m³
- Climbing ability(%): 30%
- Travel speed low/high speed(Km/h): 0-1.8
Hydraulic system:
- Main pump type/model: gear pump/06
- Rated set pressure (Mpa): 16
- Multi-way valve: 8 joint multi-way valve
- Travel hydraulic motor type: BM6-315
- Rotary hydraulic motor type: BM2-315
- Maximum flow rate of main pump (L/min): 21.6
Basic Performance Parameters:
- Maximum Digging Height(mm): 2560
- Maximum Unloading Height(mm): 1800
- Maximum Digging Depth(mm): 1693
- Max. digging radius(mm): 3060
- Overall Length(mm): 2925
- Overall Height(mm): 2422
- Overall Width(mm): 958
- Bulldozer Width/Height: 907/400
engine:
- Engine Brand: RATO
- Engine Model: R420D
- Max. power(Kw): 9.7
- Max. speed(rpm): 3600
- Cylinders: 1
- Cooling method: fan cooling
- Engine oil change quantity(L): 1.1
- Fuel Type: Gasoline
- Fuel Grade: 92#
- Theoretical fuel consumption(L/h): 0.5-1.2
