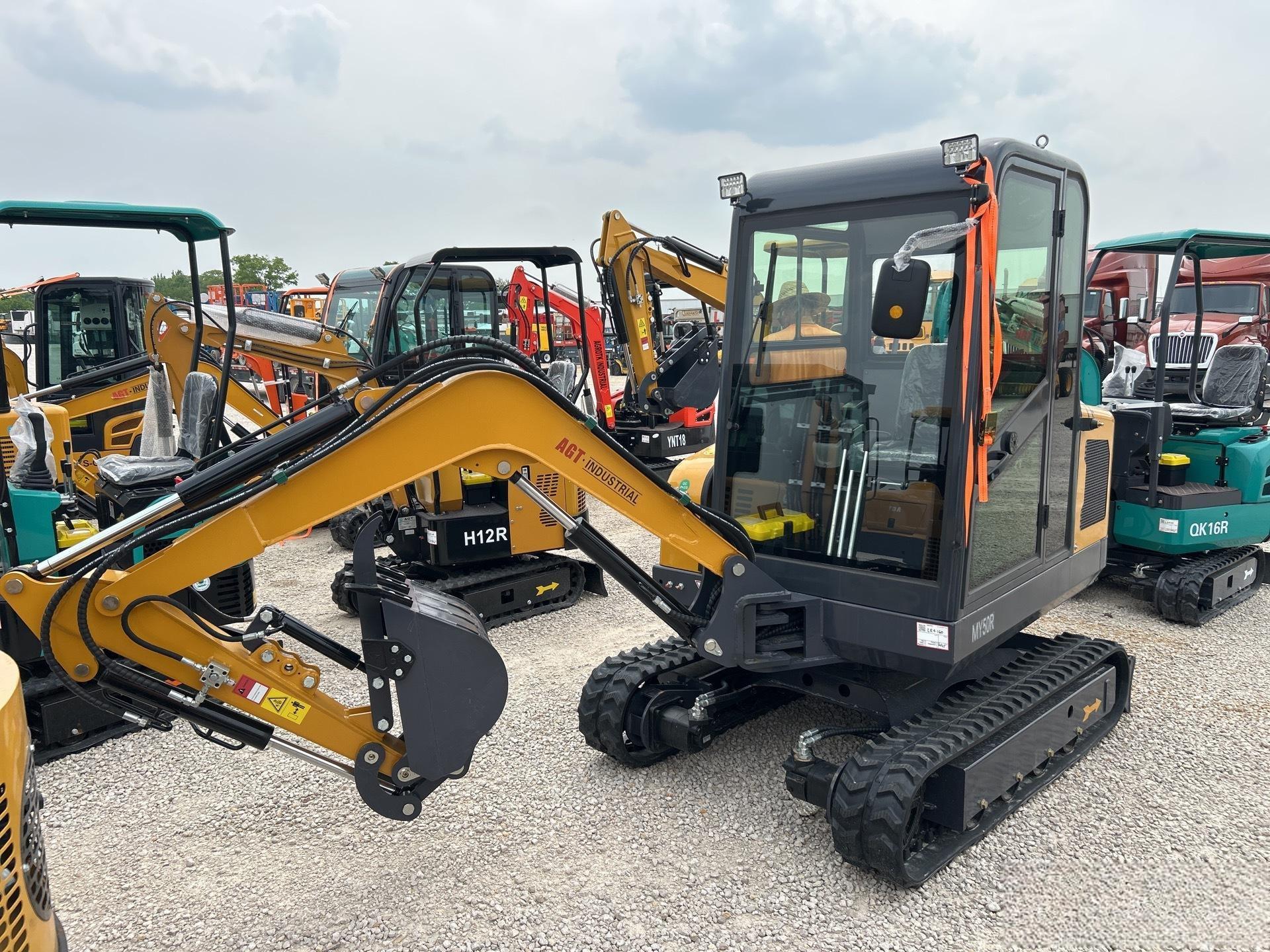

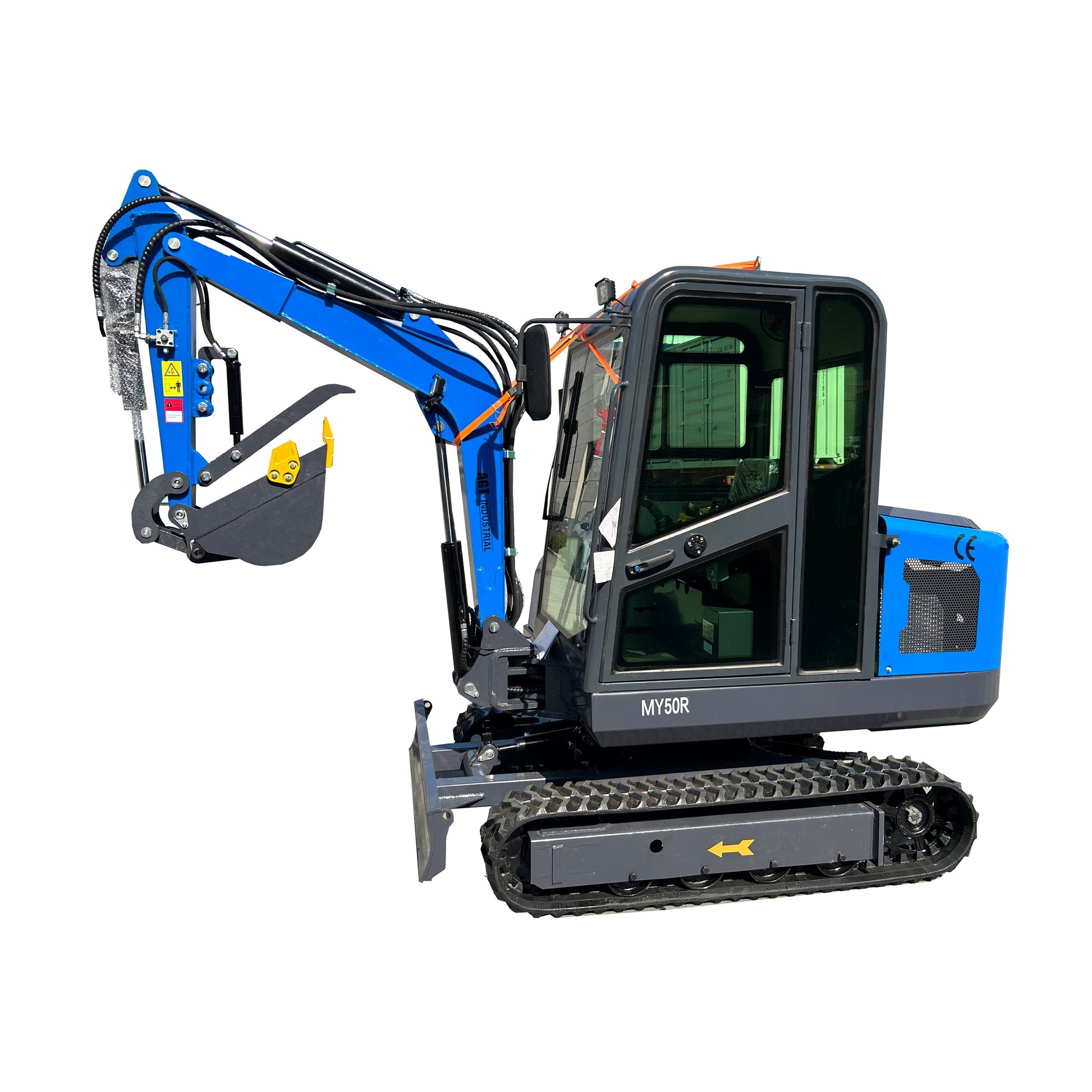

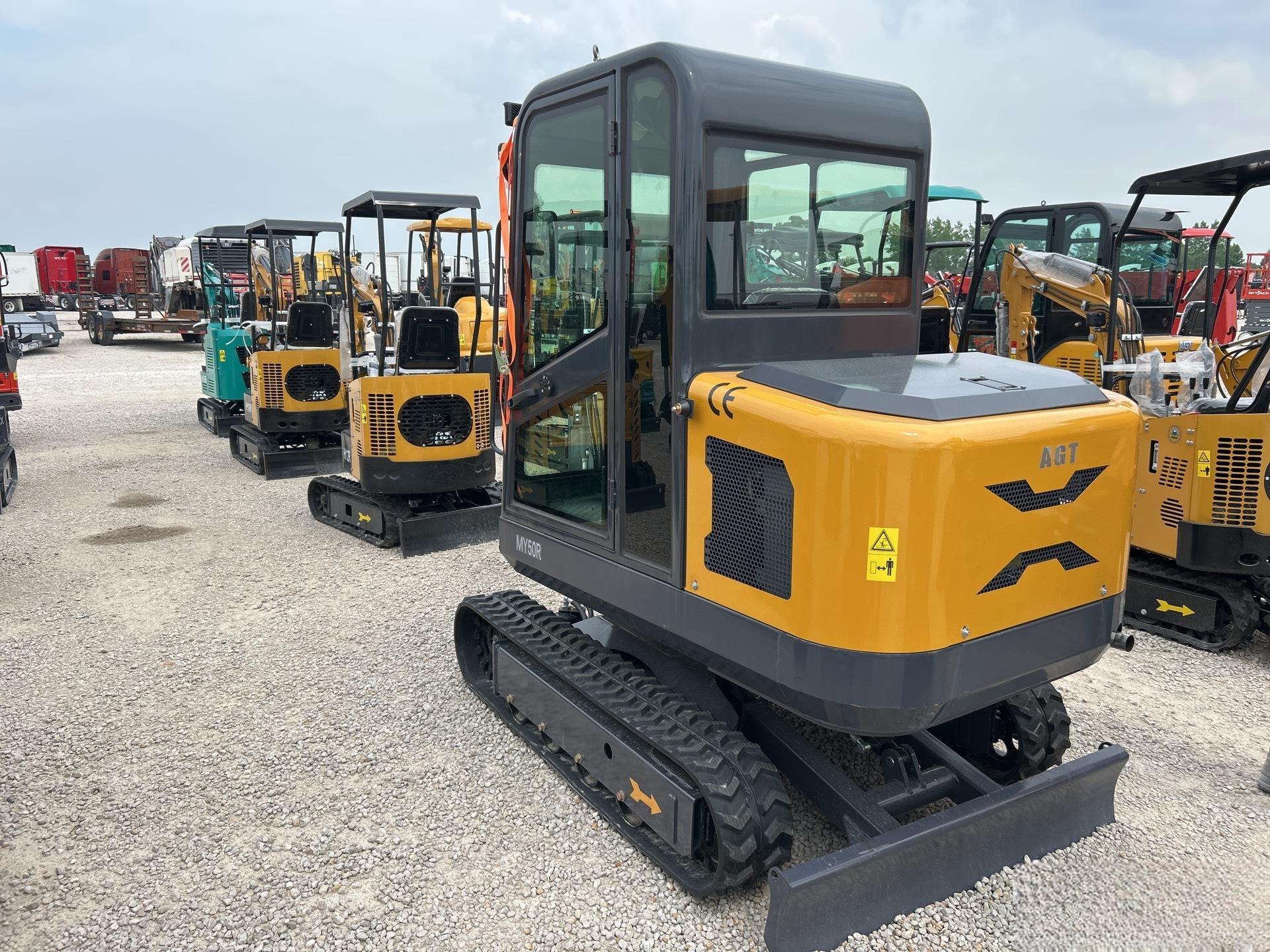

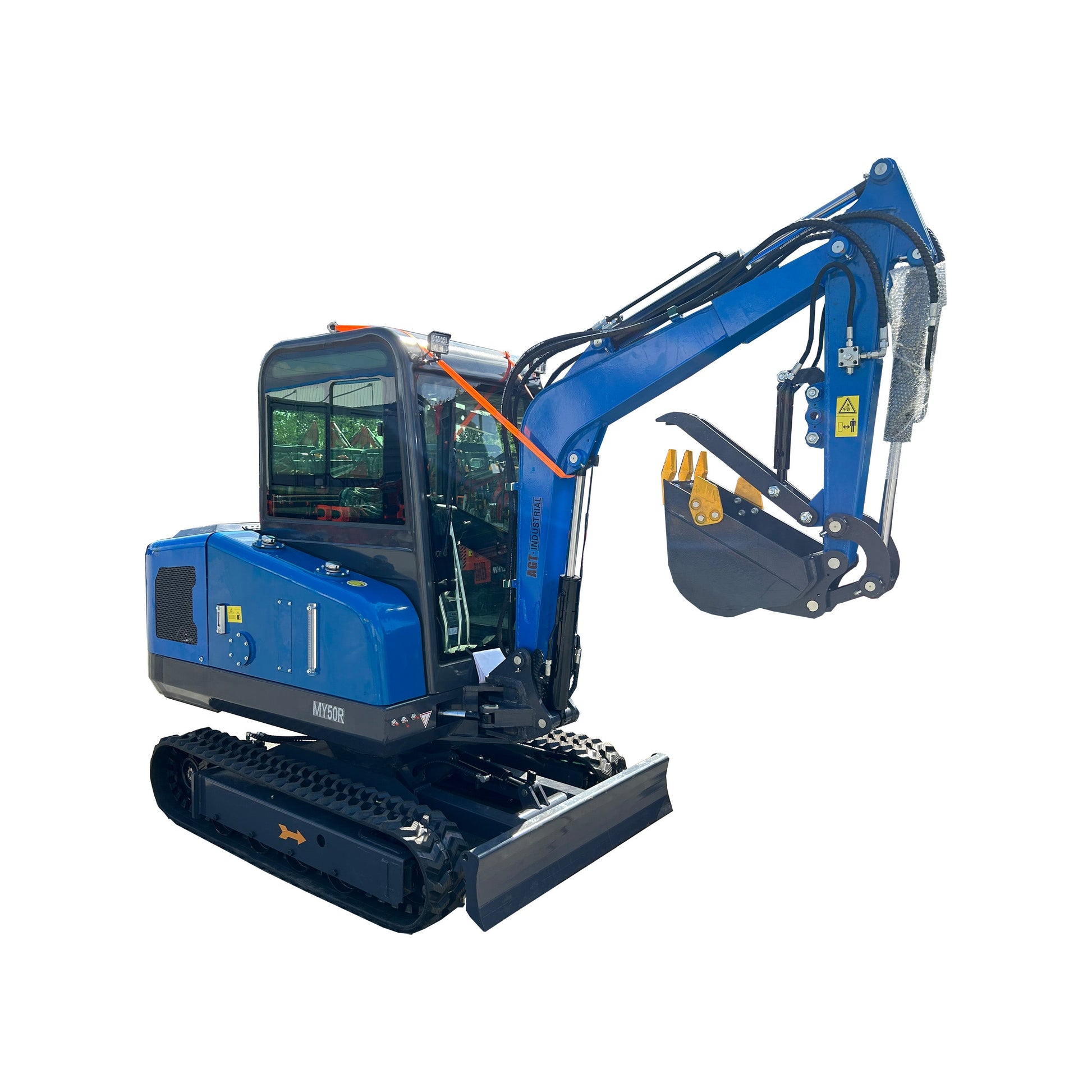

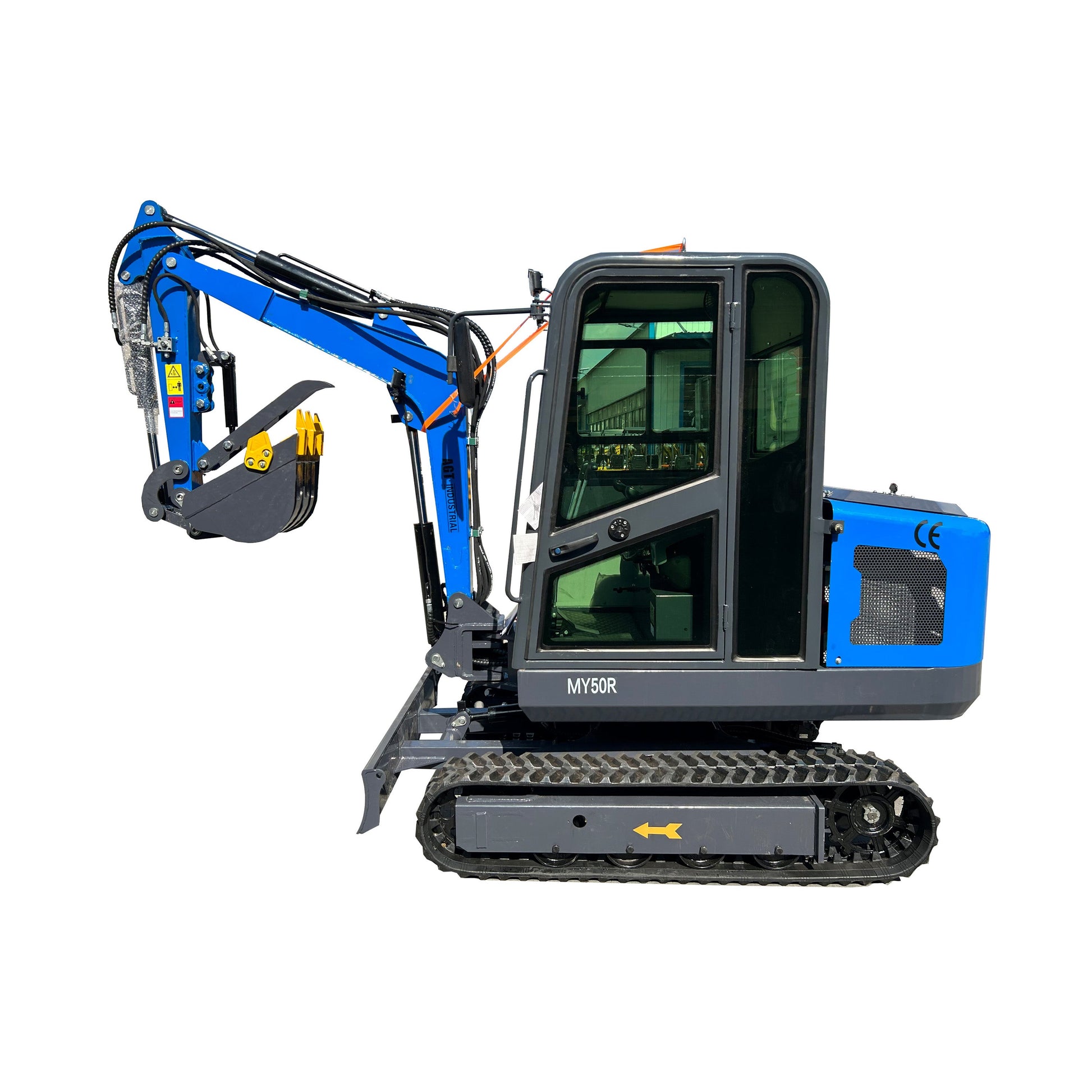

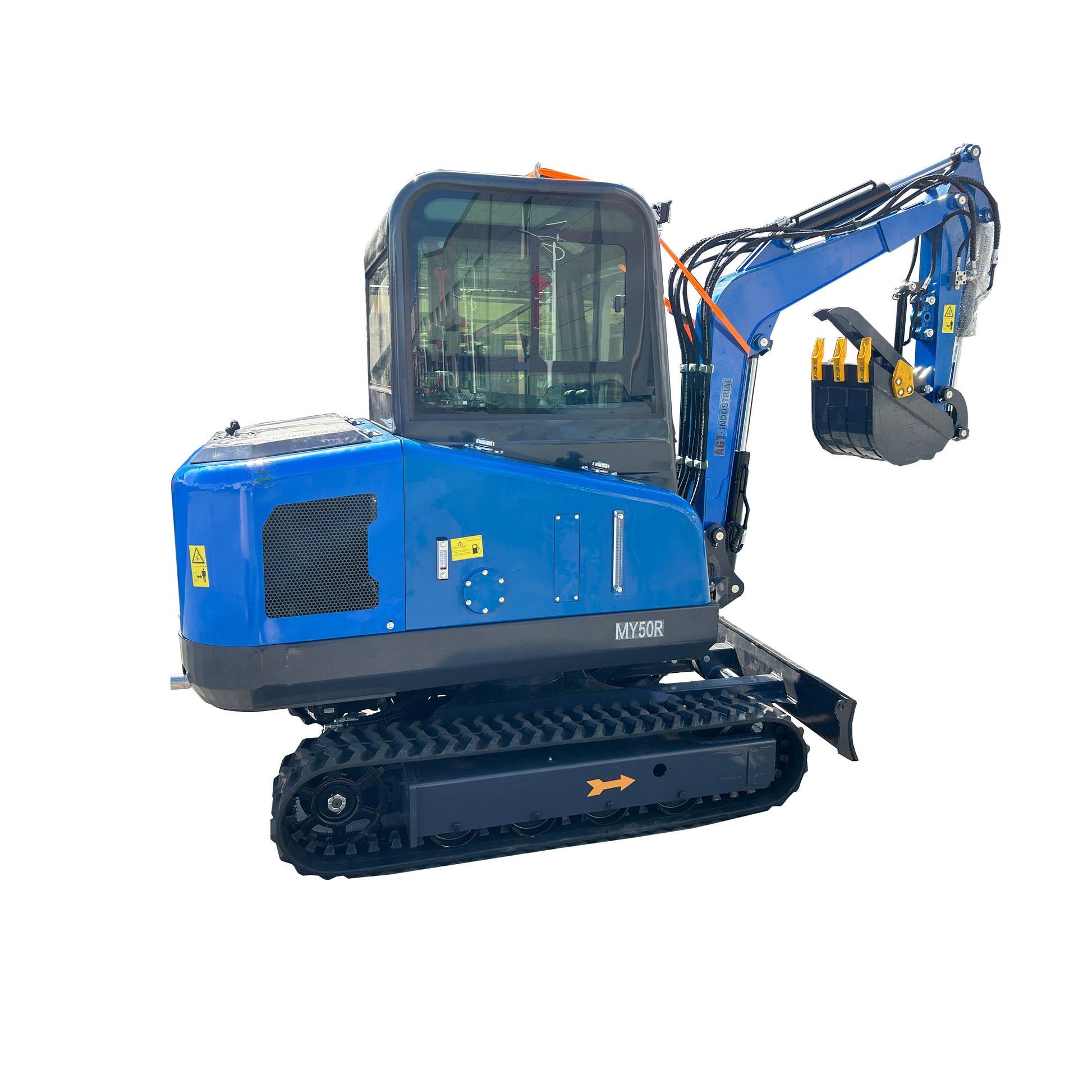

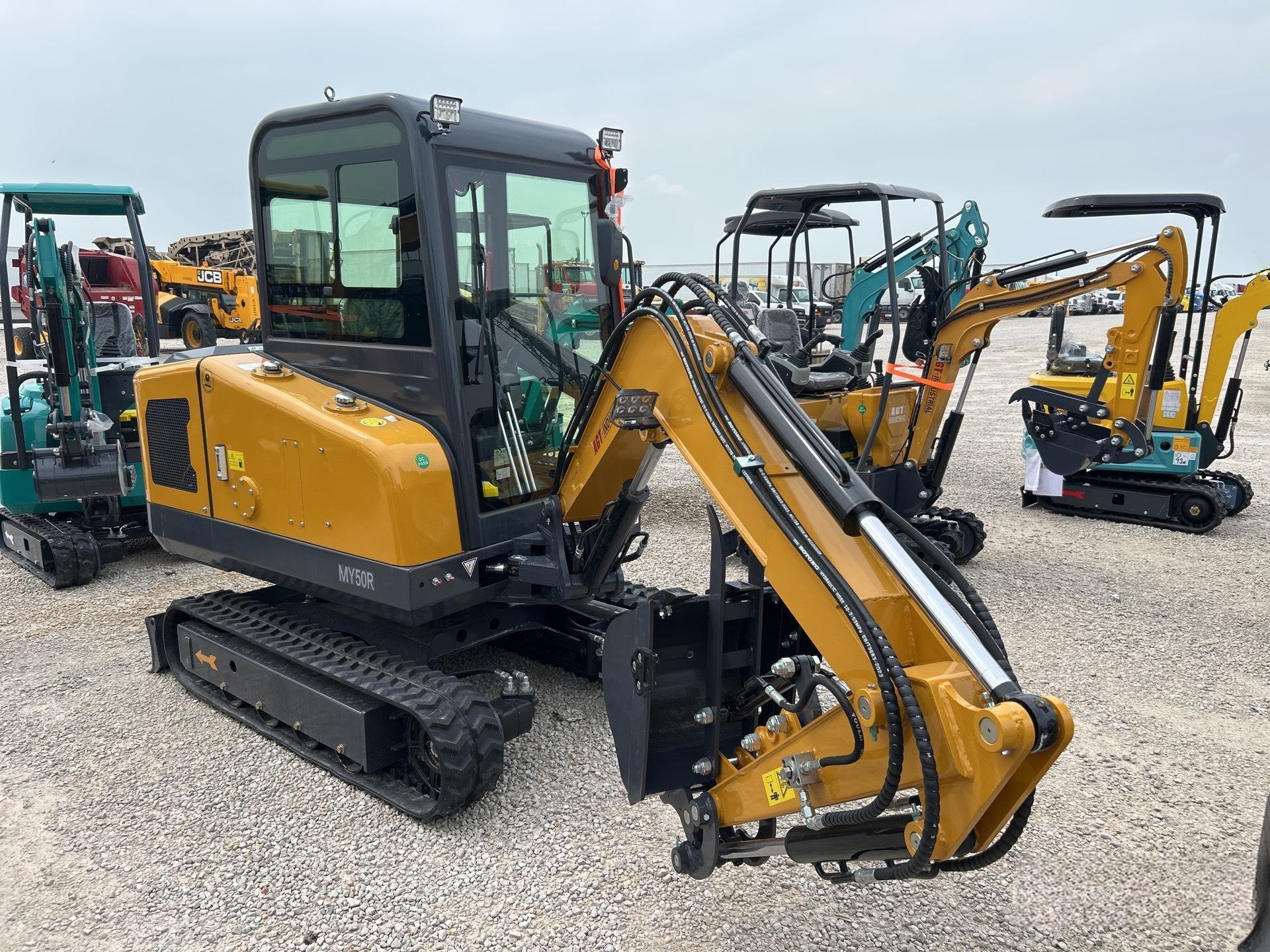

AGT-MY50R 2025 1.2-Ton Mini Excavator With RATO Engine

Technical Data:

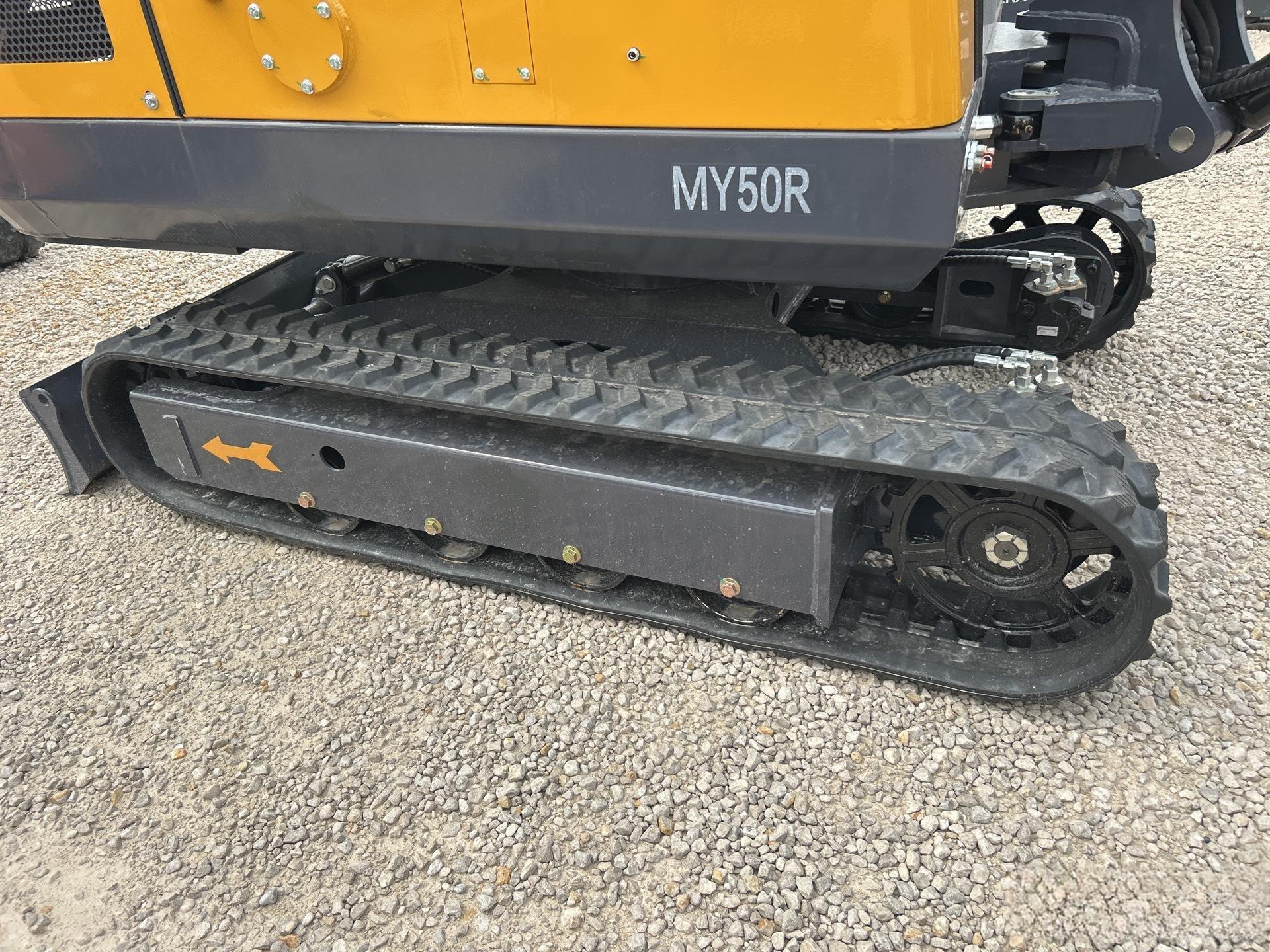

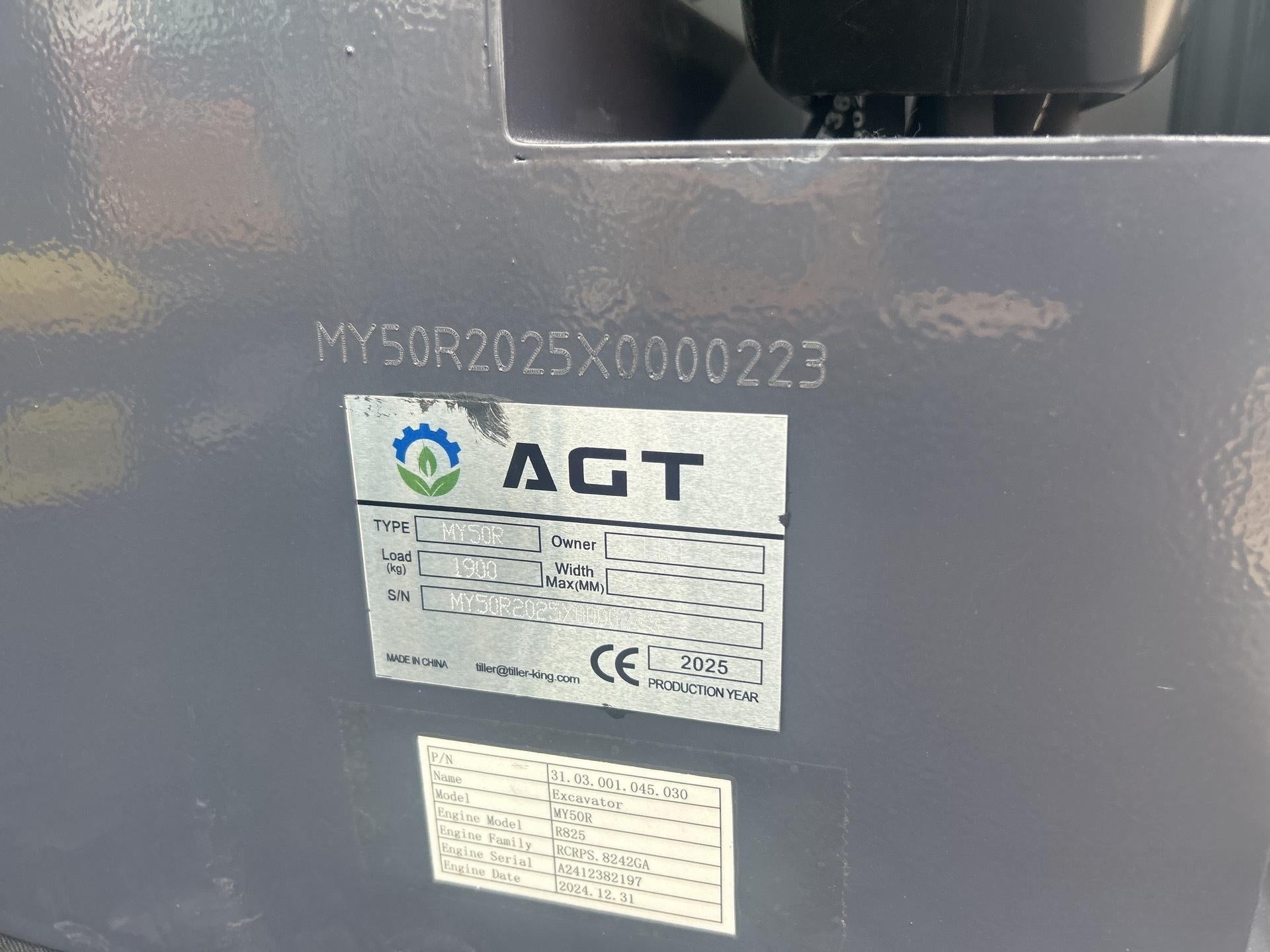

Model Information: MY50R

Basic Performance Parameters

• Working Weight(kg): 1200
• Bucket capacity(m³): 0.23
• Travel speed low/high speed(Km/h): 0-2.0
• Climbing ability(%): 30
• Turn speed(r/min): 9.8
• Maximum Digging force of Bucket (KN): 8.8
• Maximum Digging force of Bucket Rod (KN): 6
• A:Maximum Digging Height(mm): 2755
• B:Maximum Unloading Height(mm): 2180
• C:Maximum Digging Depth(mm): 1983
• D:Maximum Vertical Excavation Depth(mm): 1983
• E:Maximum Excavation Radius(mm): 3318
• F:Minimum radius of Gyration(mm): 2413
• G:Minimum tail radius of Gyration(mm): 1313
• H:Maximum Lifting height of Bulldozer: 251
• I:Maximum Digging height of Bulldozer: 340

Equipment Body

• J:Overall Length(mm): 2895
• K:Overall Width(mm): 1210
• L:Overall Height(mm): 2420
• Bulldozer Width/Height(mm): 1370/236

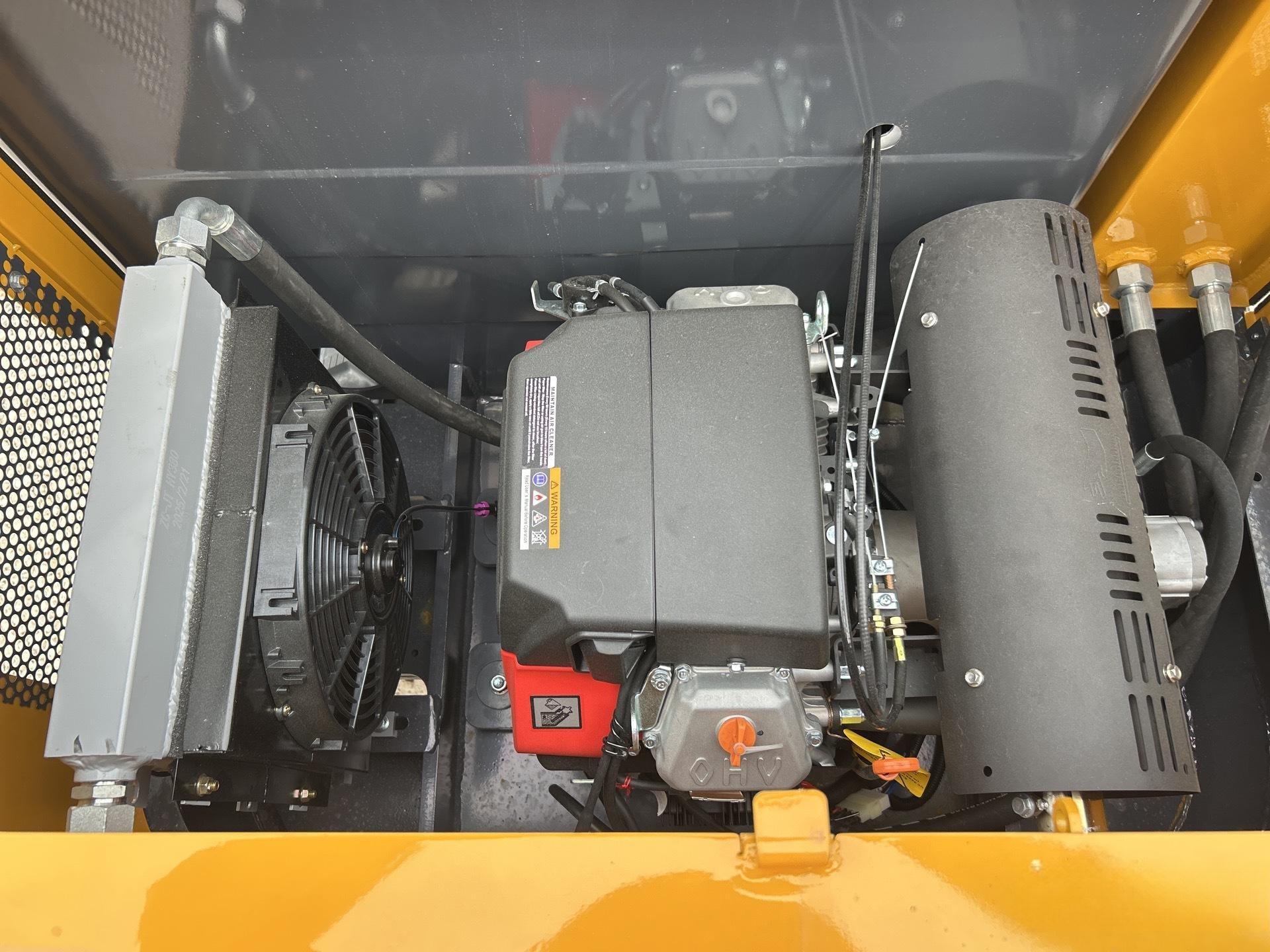

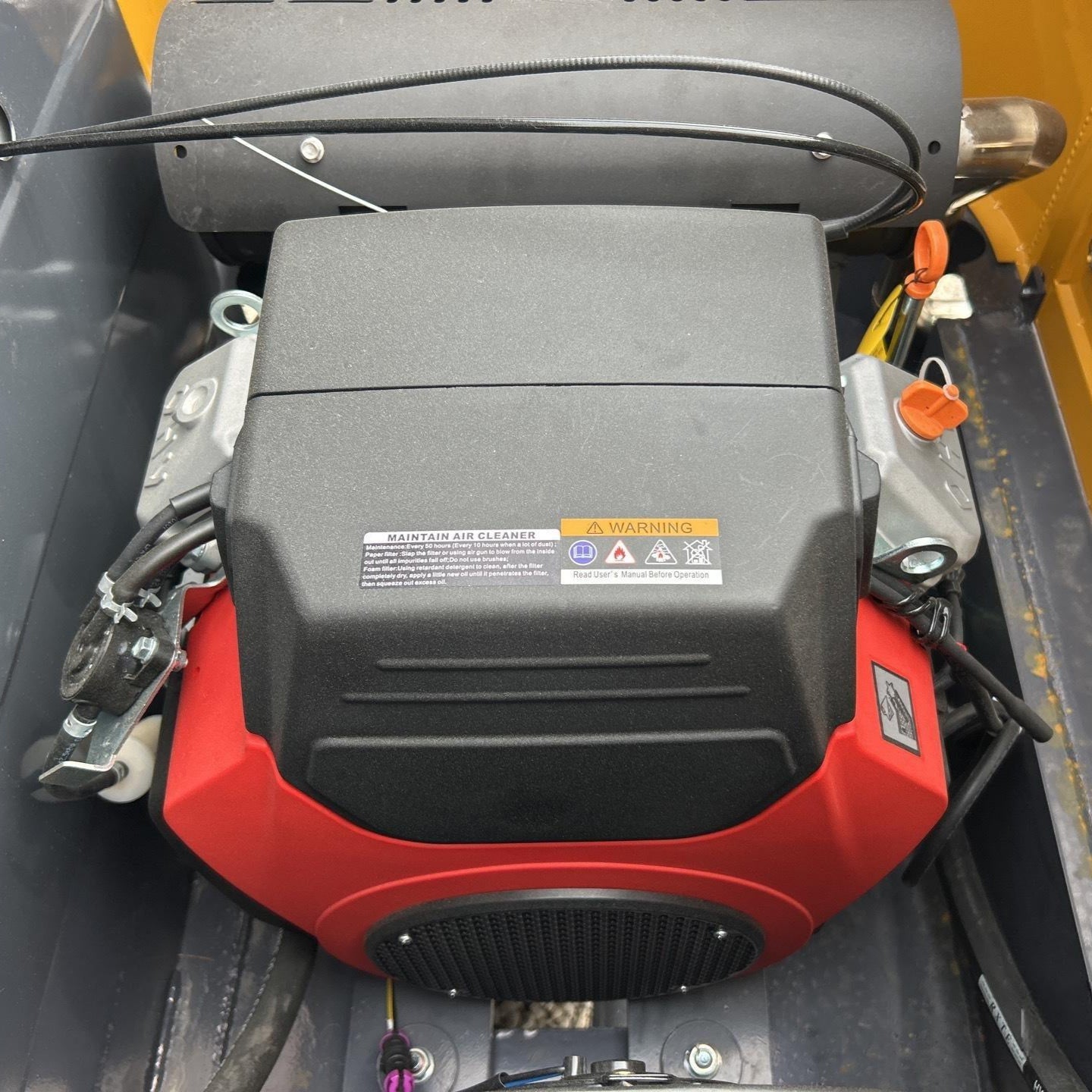

Engine

• Engine Brand: Rato
• Engine model: 825
• Maximum horsepower(ps): 28
• Maximum power(Kw): 21
• Maximum speed(rpm): 3600
• Number of cylinders: 2
• Cooling method: Air cooling
• Engine oil replacement(L): 1.1
• Fuel type: gasoline
• Fuel Label: 92#

Fuel tank

• Fuel tank(L): 33

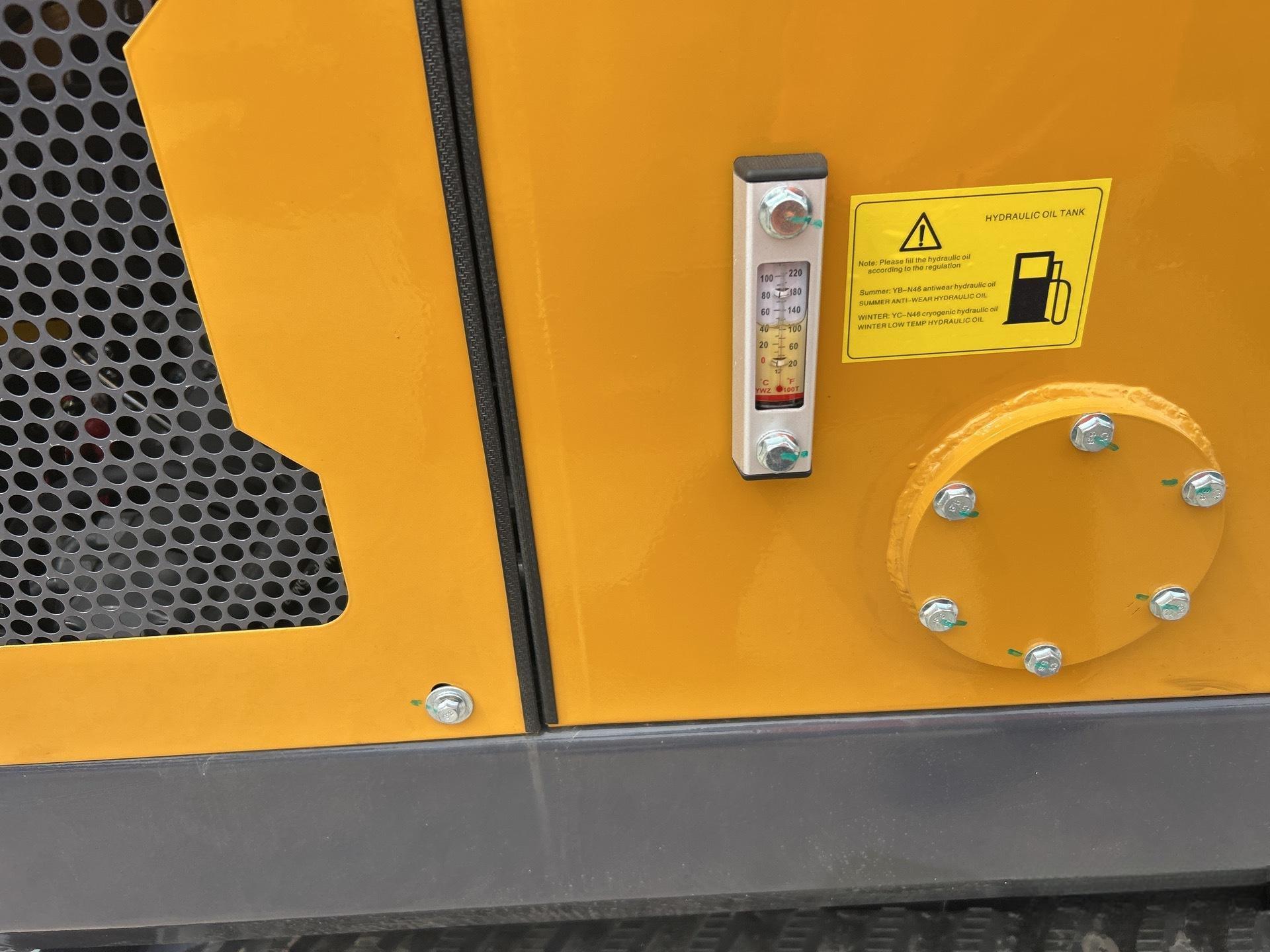

• Hydraulic oil tank(L): 25
