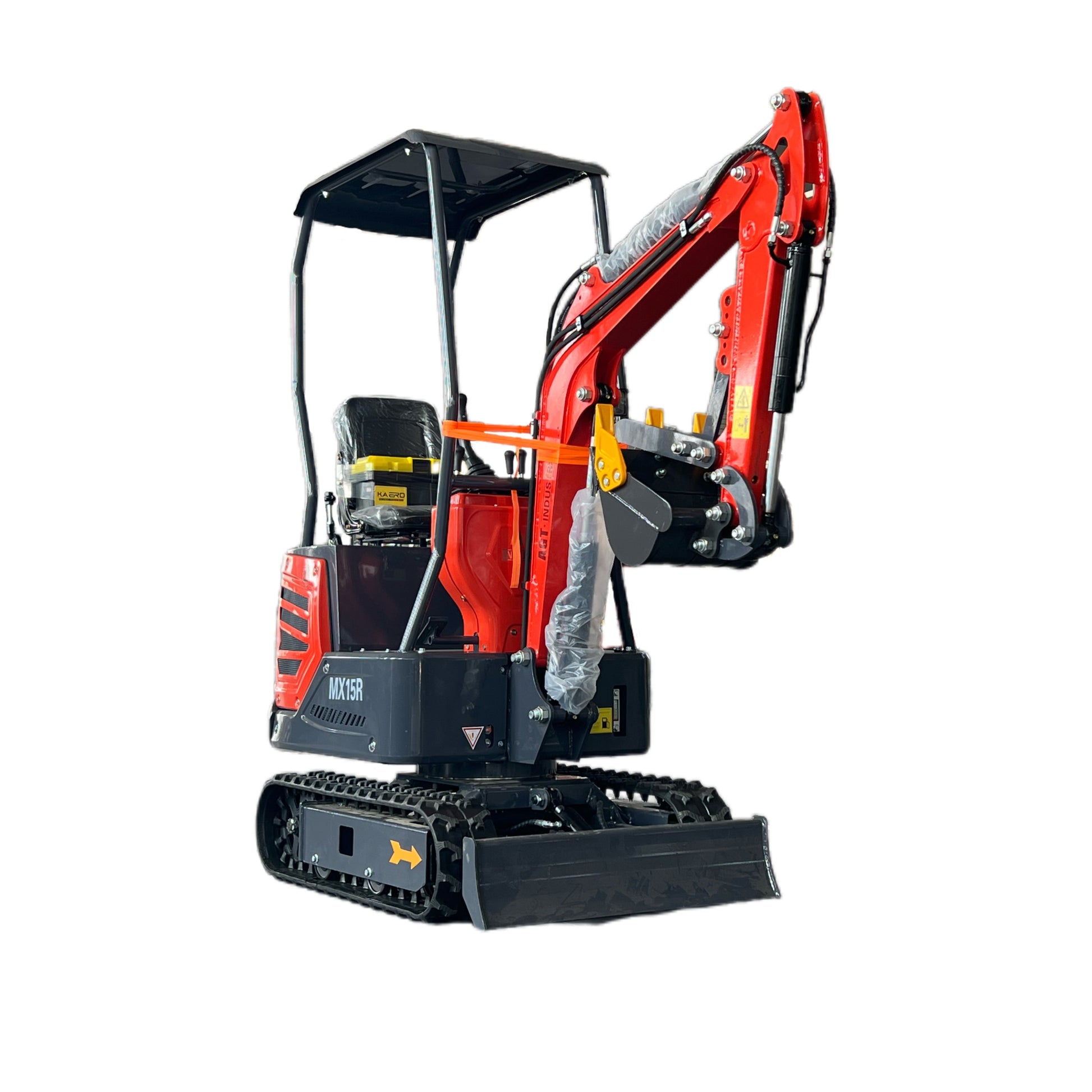

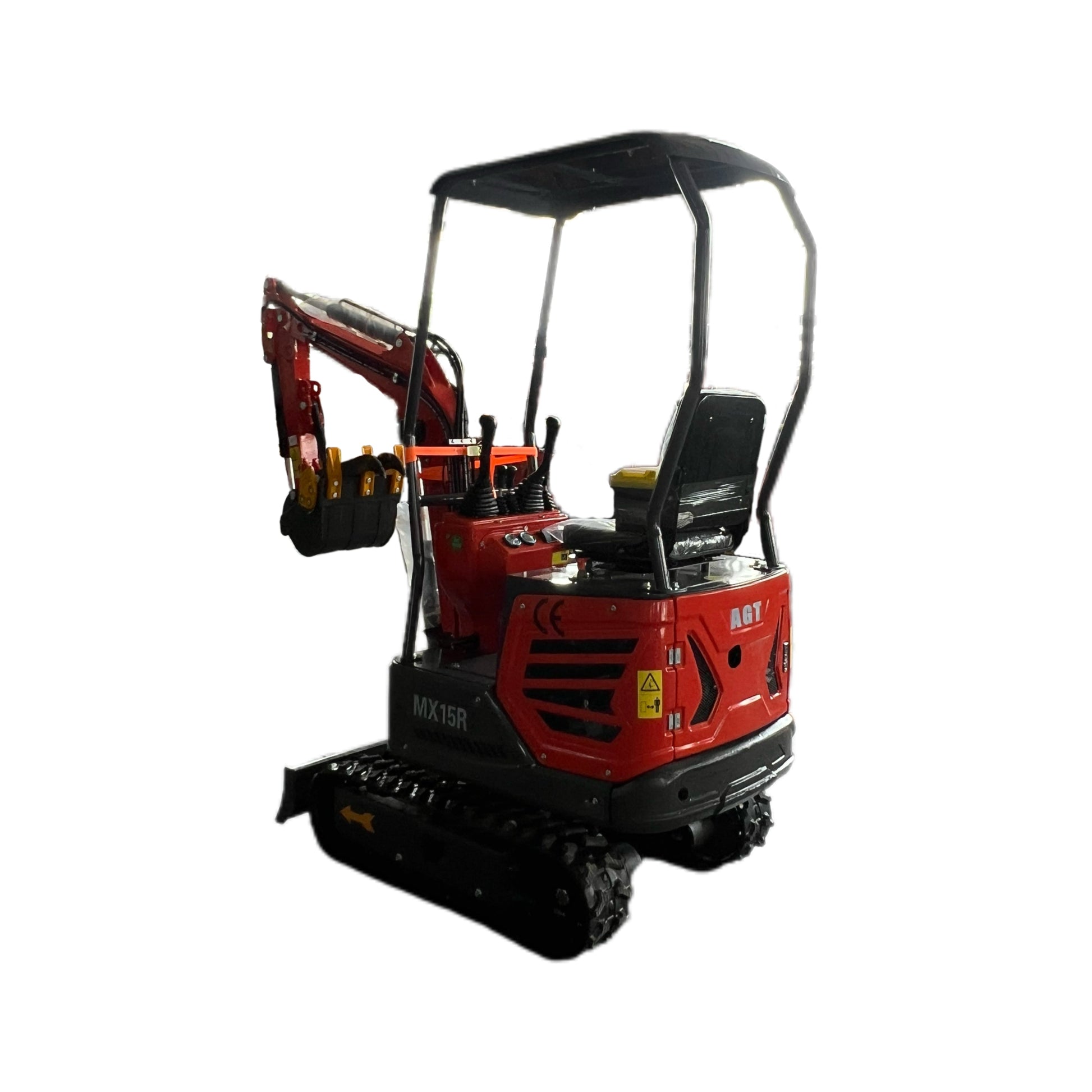

AGT - MX15R 1 Ton Mini Excavator – RATO Gasoline Engine

AGT-MX15R 1 Ton Mini Excavator – RATO Gasoline Engine | Compact Crawler Digger

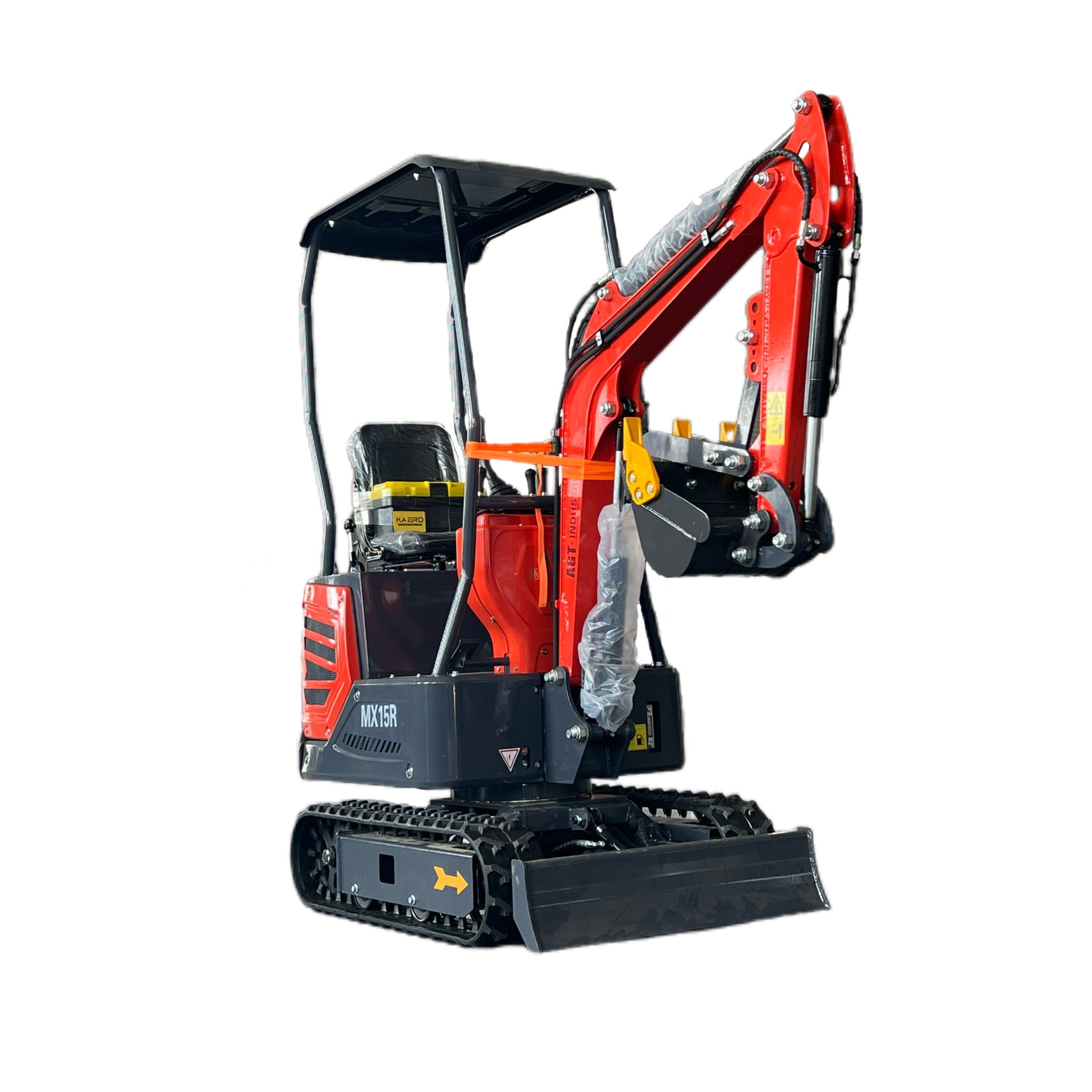

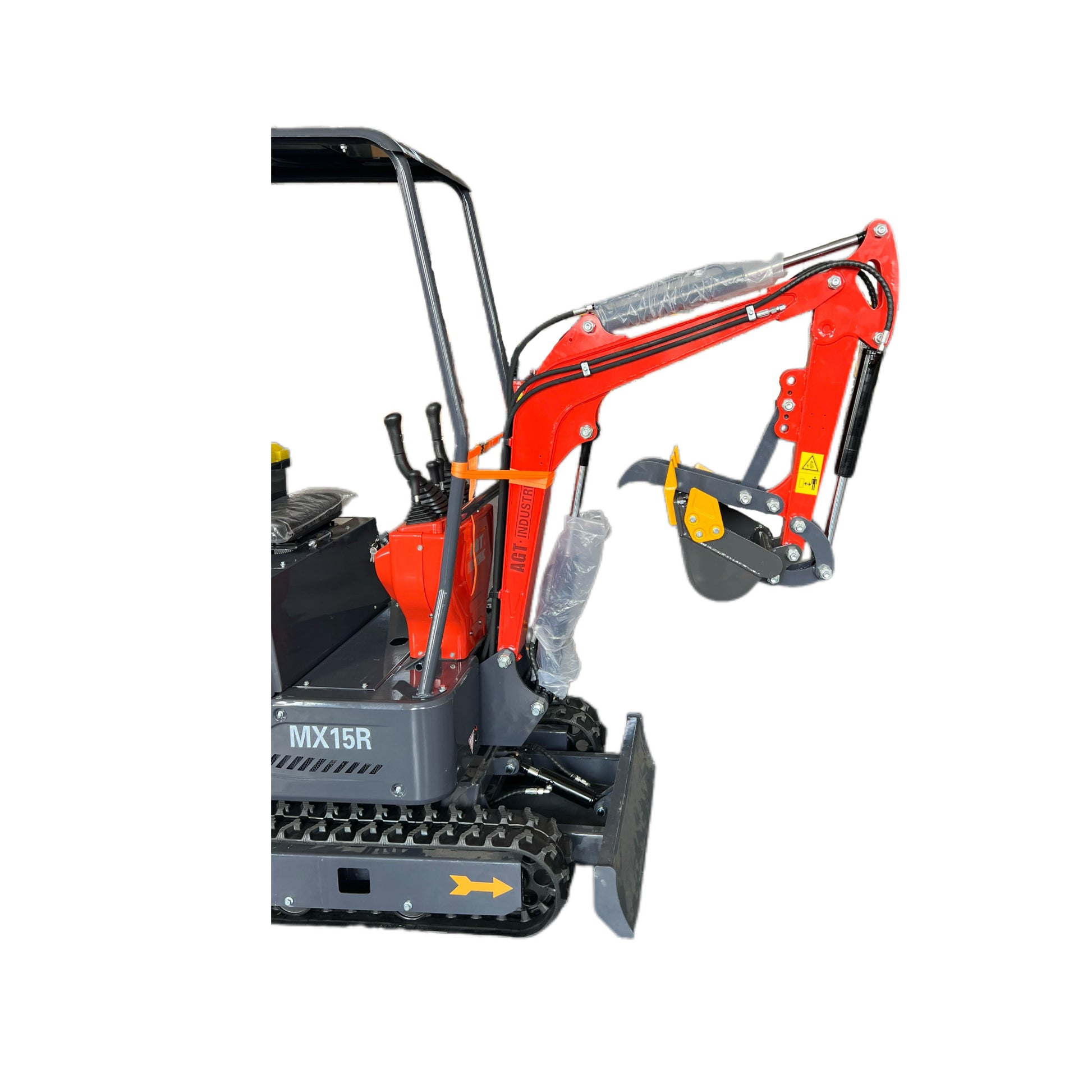

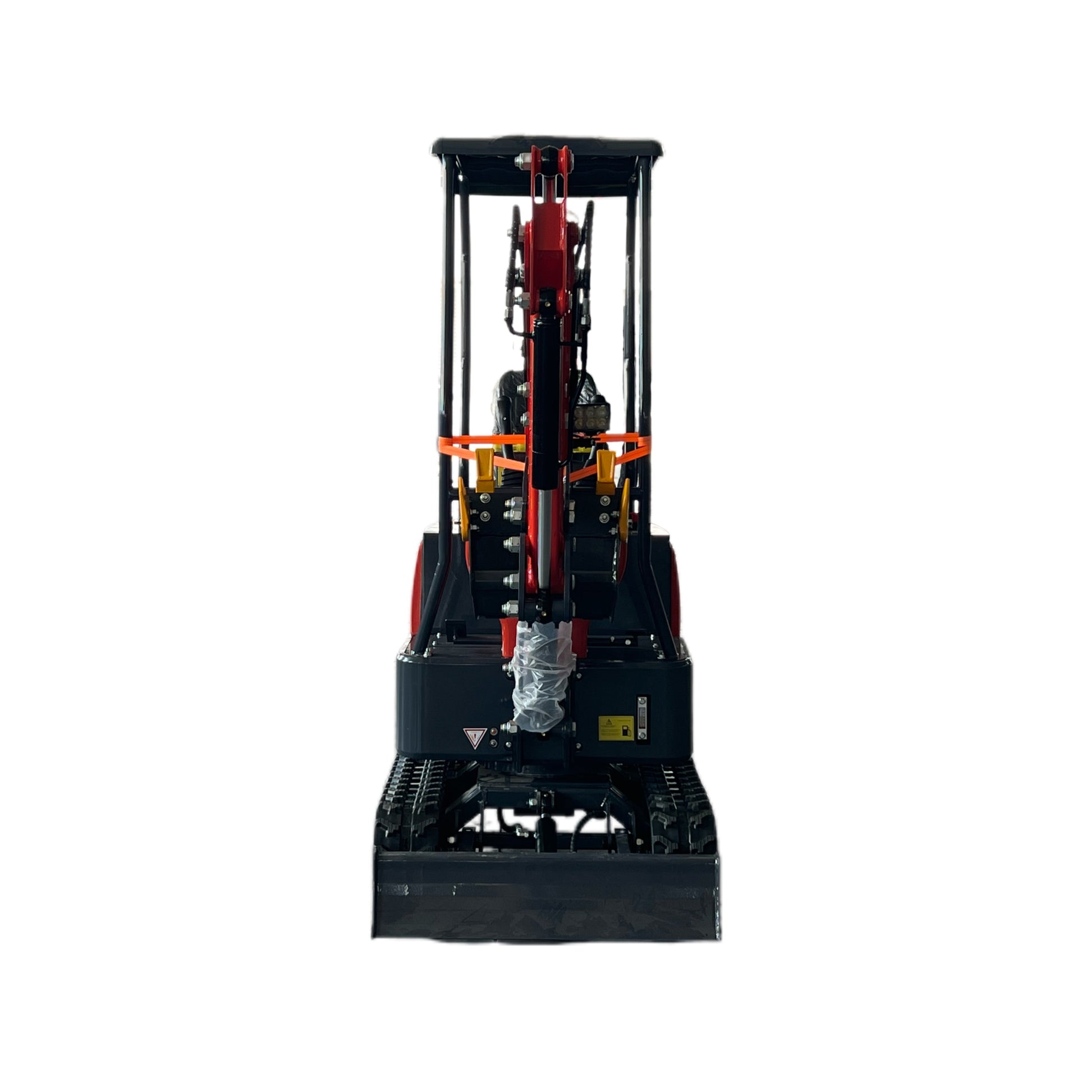

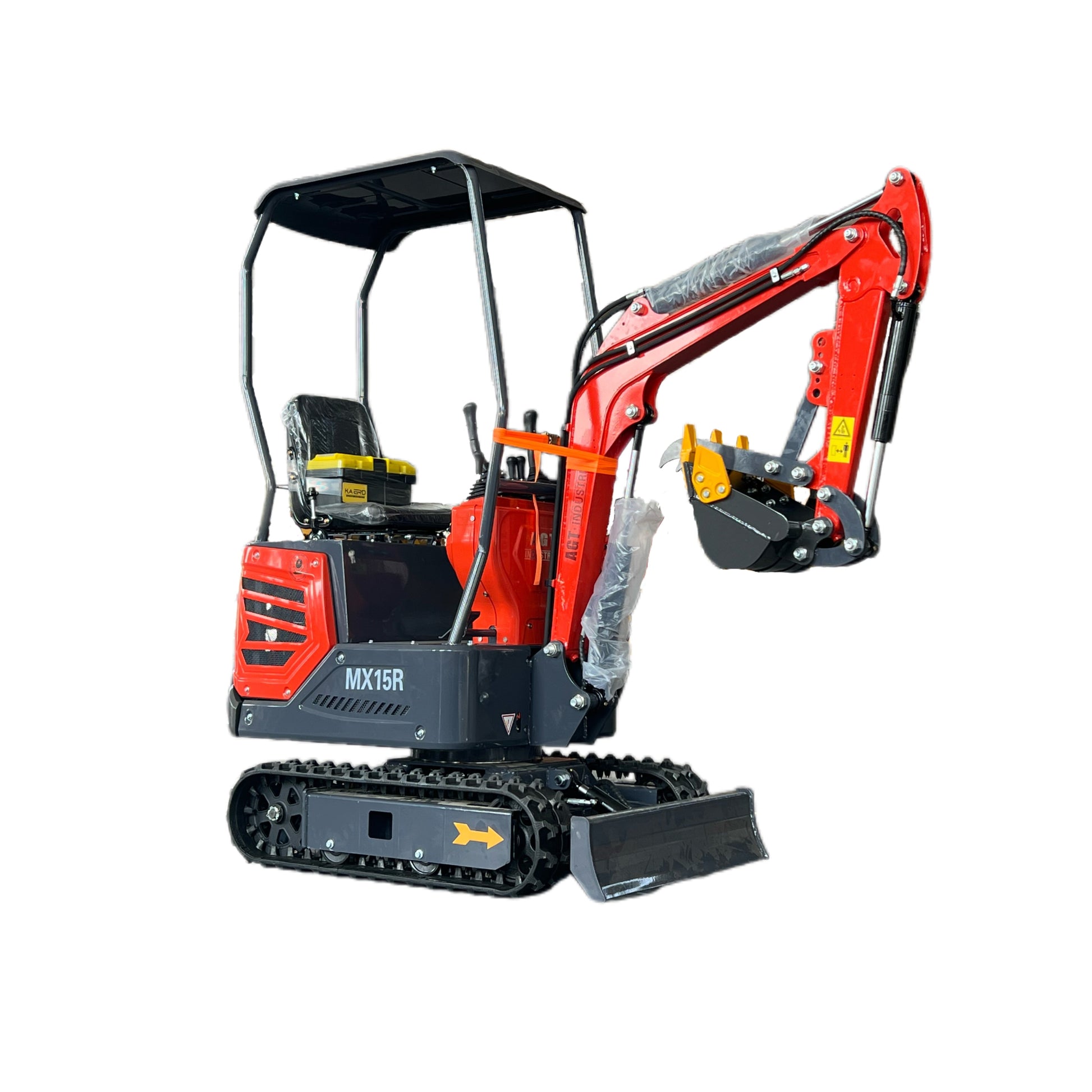

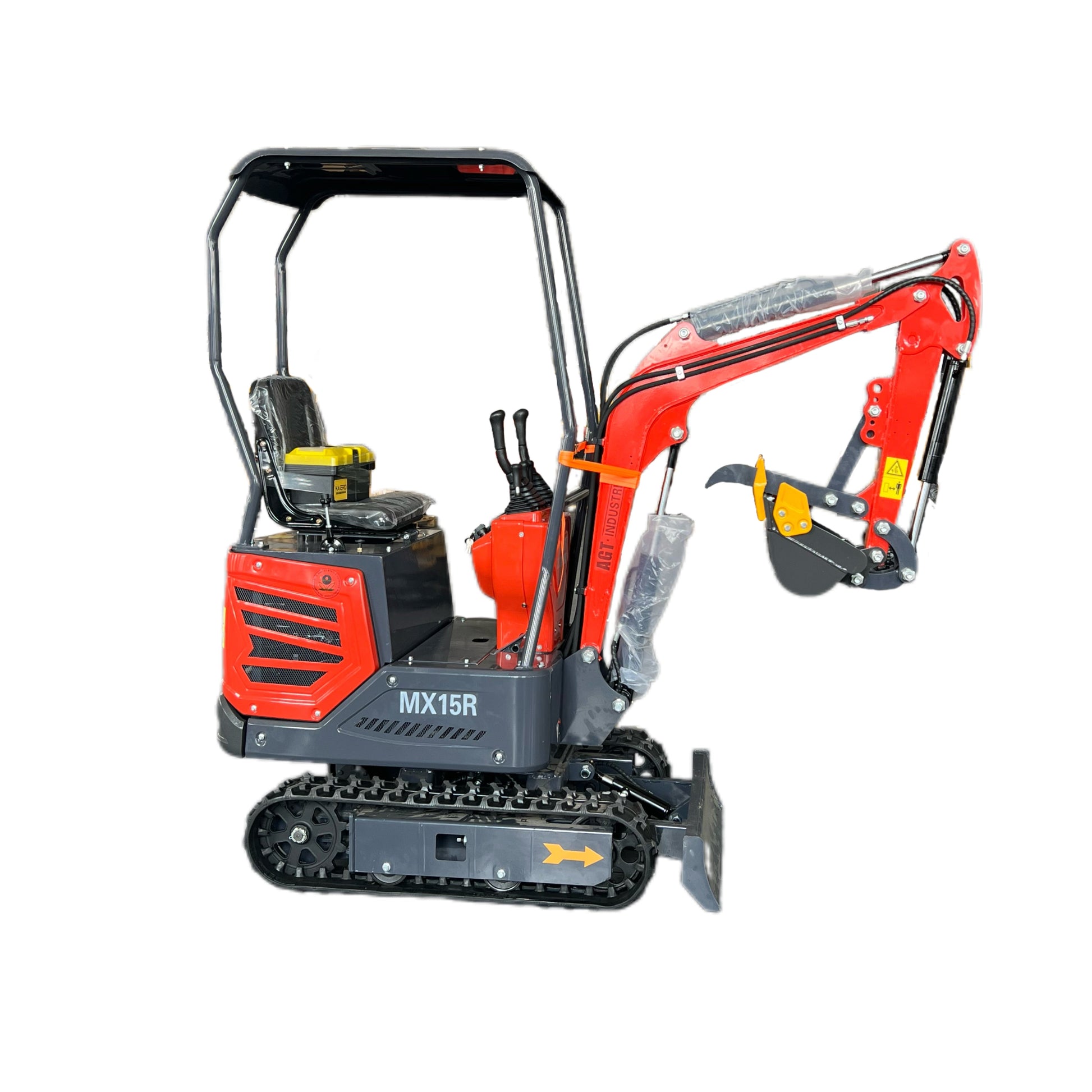

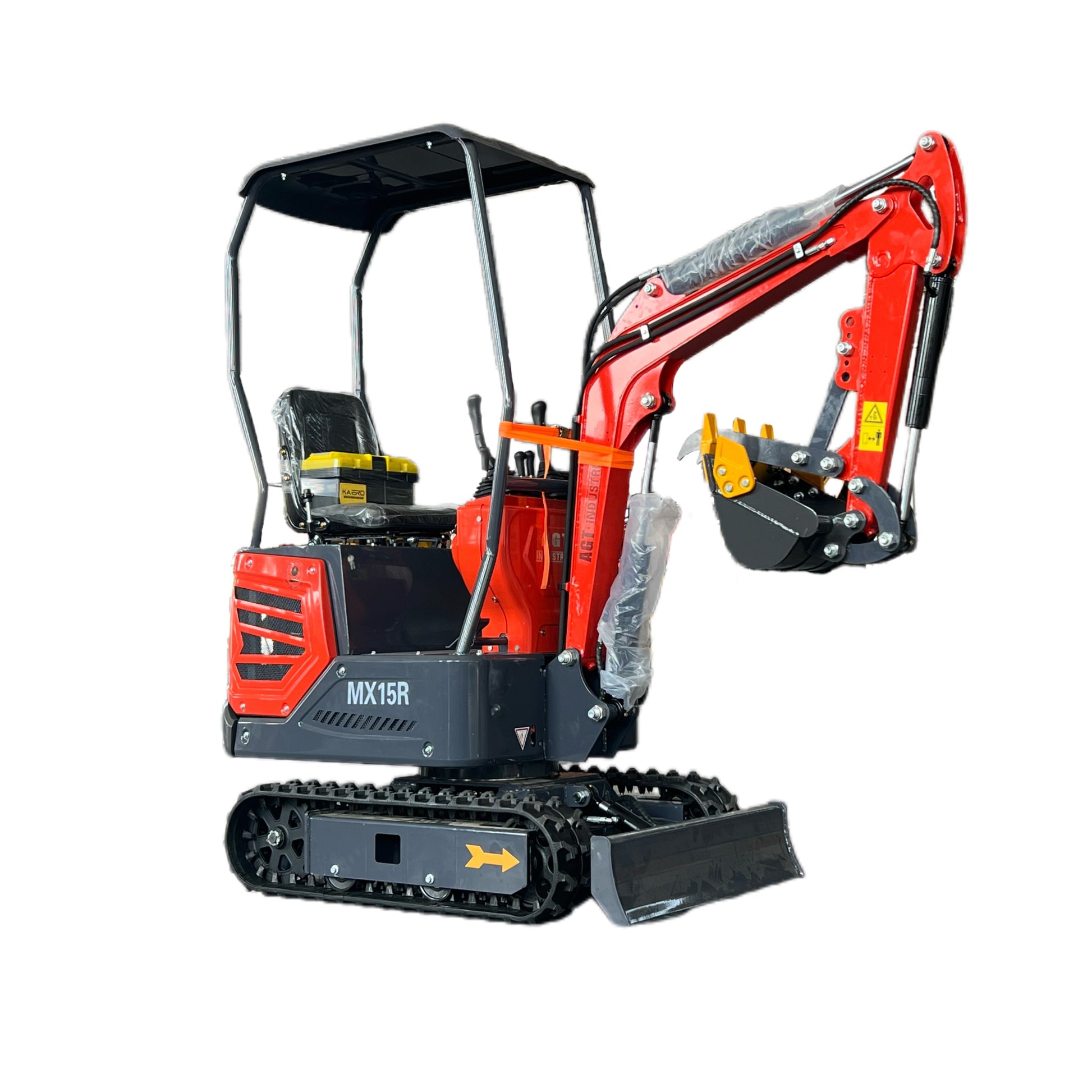

The AGT MX15R Mini Excavator is built for small to mid-sized projects, offering efficient performance in compact spaces such as farms, gardens, orchards, and construction sites. With a 940 kg operating weight and 5.8 ft digging depth, it combines power and maneuverability in a durable design.

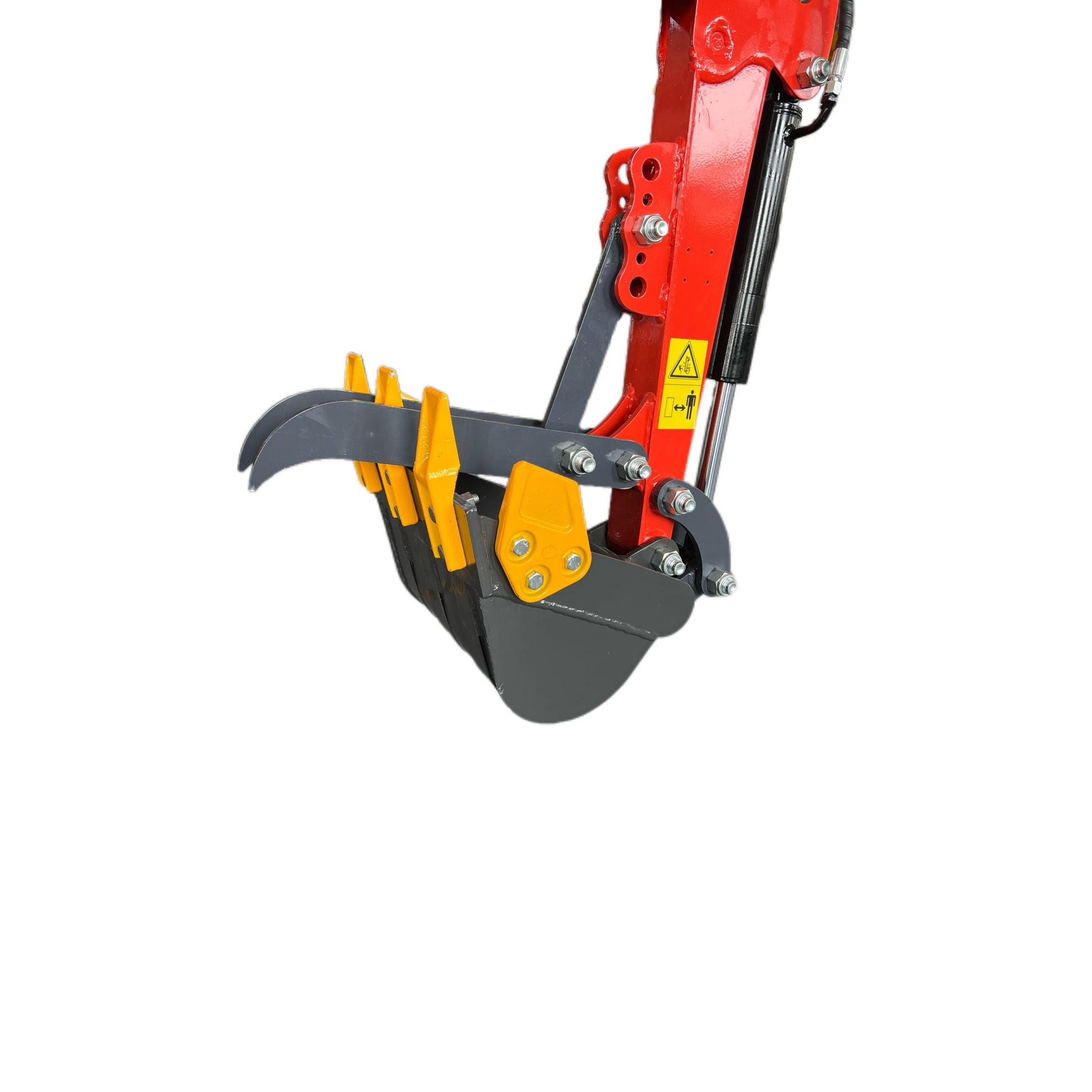

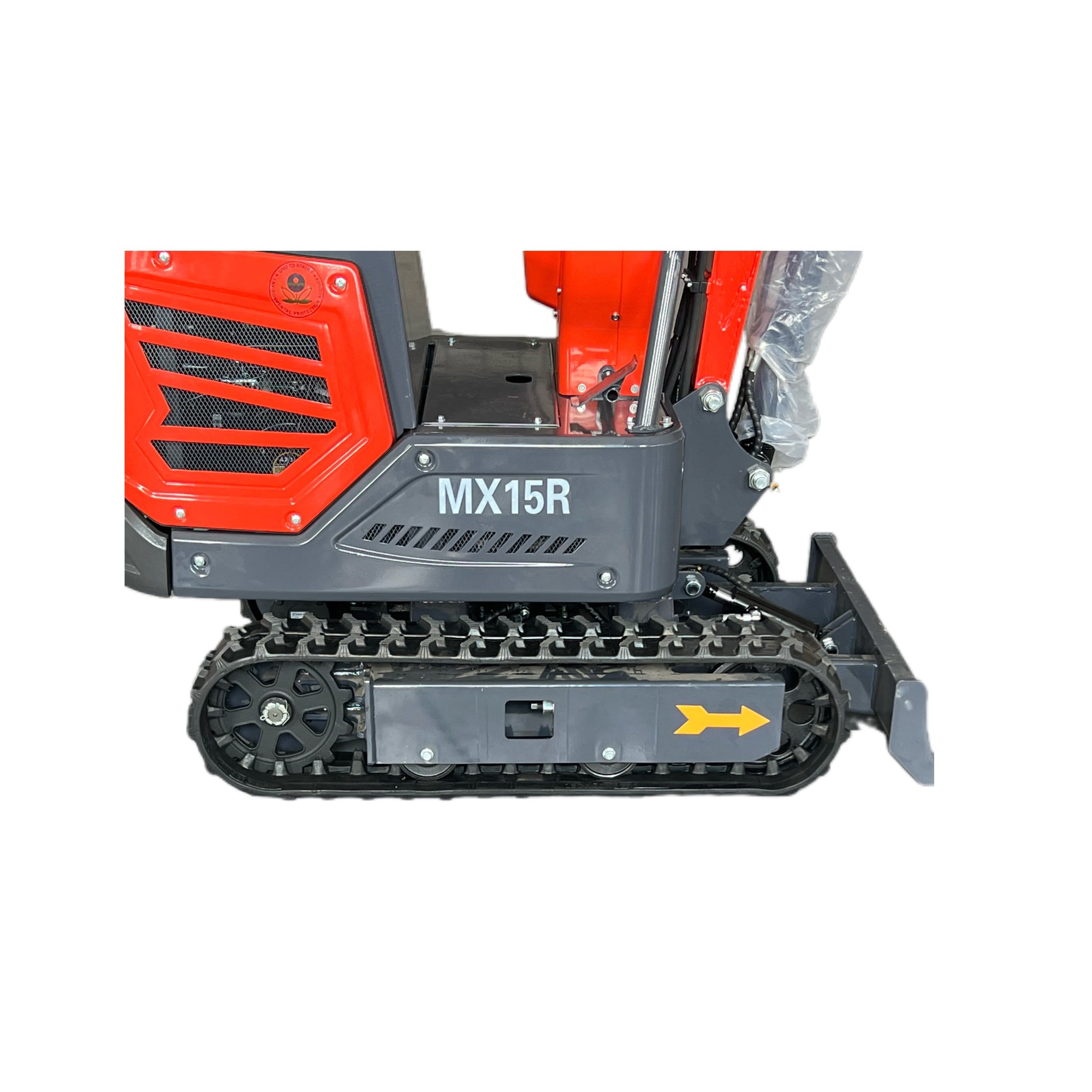

Equipped with a 9.8 kW 3-cylinder gasoline engine, rubber tracks, and a reinforced frame, the MX15R is made for daily use. It includes a hydraulic blade, side-swing boom, manual thumb, and auxiliary line—ready for attachments like augers, grapples, tilt buckets, and rakes.

Technical Data:

• Operating Weight: 940 kg
• Engine: 9.8 kw gasoline engine
• Max Horsepower: 13.1 hp
• Fuel Tank: 6.6L (92# Gasoline)
• Hydraulic Tank: 23L
• Bucket Capacity: 0.025 m³
• Travel Speed: 0-3 km/h
• Climbing Ability: 30%
• Turning Speed: 10 rpm
• Bulldozer Width/Height: 1000 mm/180 mm

Dimensions:

• Max Digging Height: 2583 mm
• Max Unloading Height: 1850 mm
• Max Digging Depth: 1769 mm
• Max Vertical Excavation Depth: 1600 mm
• Max Excavation Radius: 3041 mm
• Min Gyration Radius: 1584 mm
• Min Tail Radius: 849 mm
• Max Blade Lift: 288 mm
• Max Blade Dig Depth: 146 mm

Working Range:

• Overall Length: 3200 mm
• Overall Width: 936 mm
• Overall Height: 2210 mm
