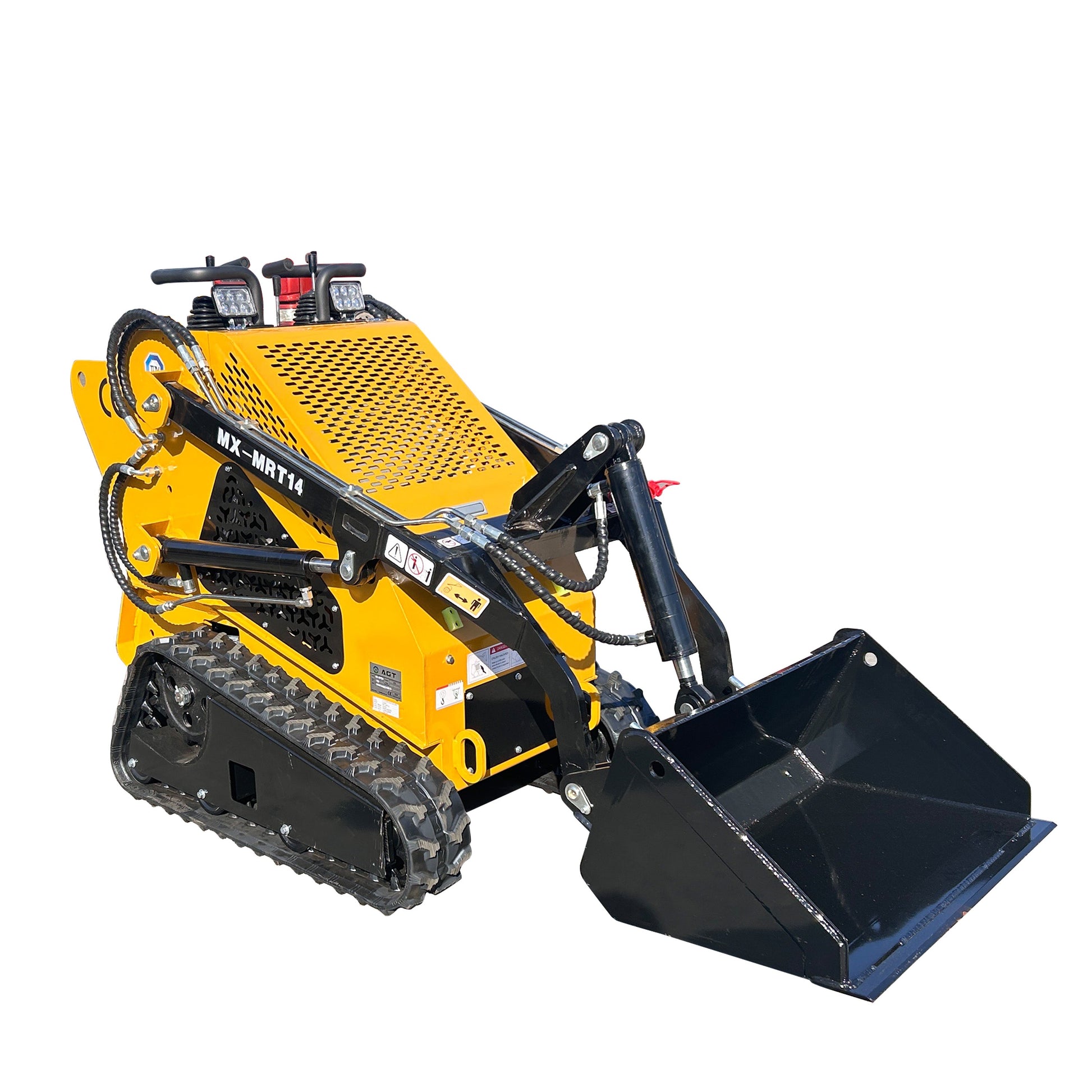

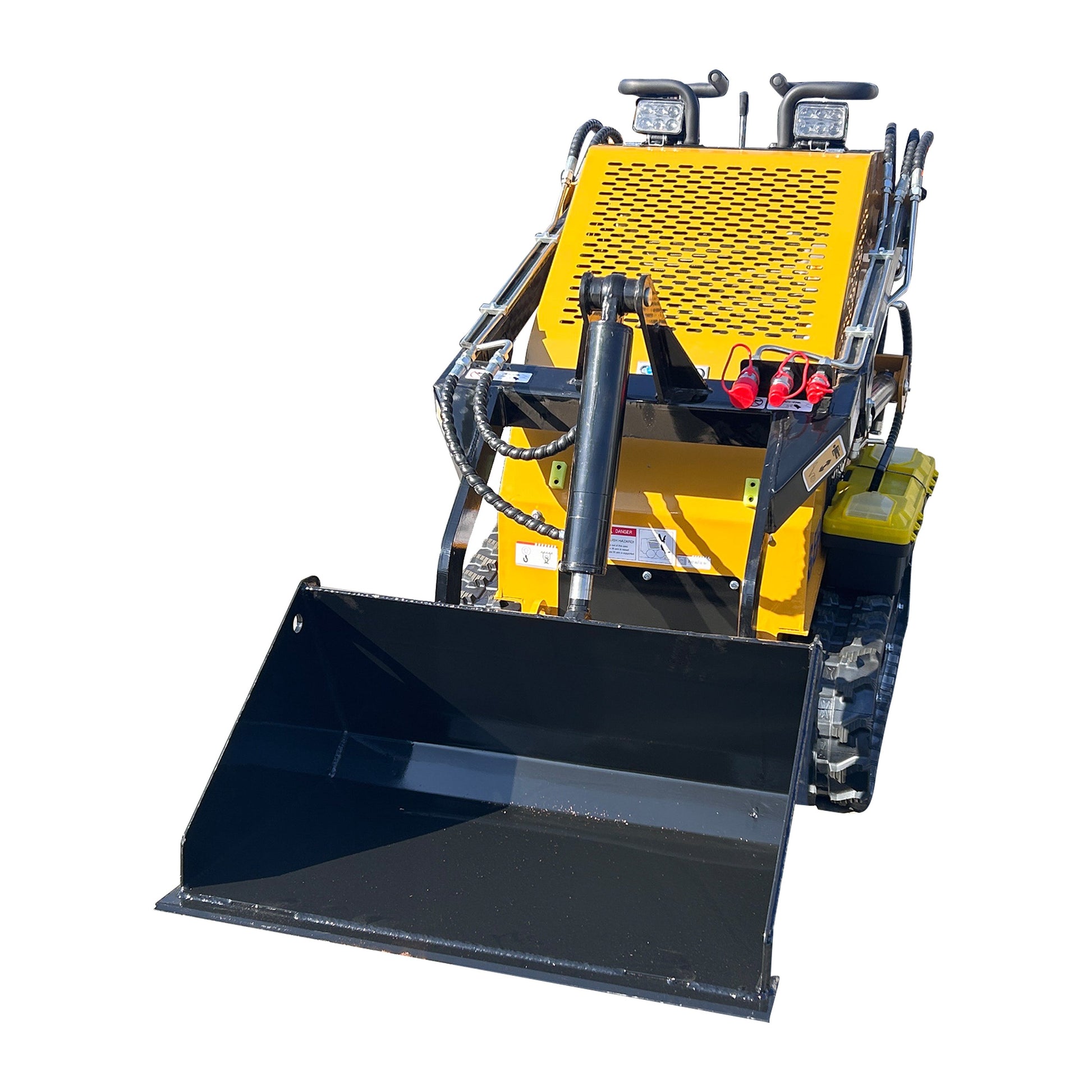

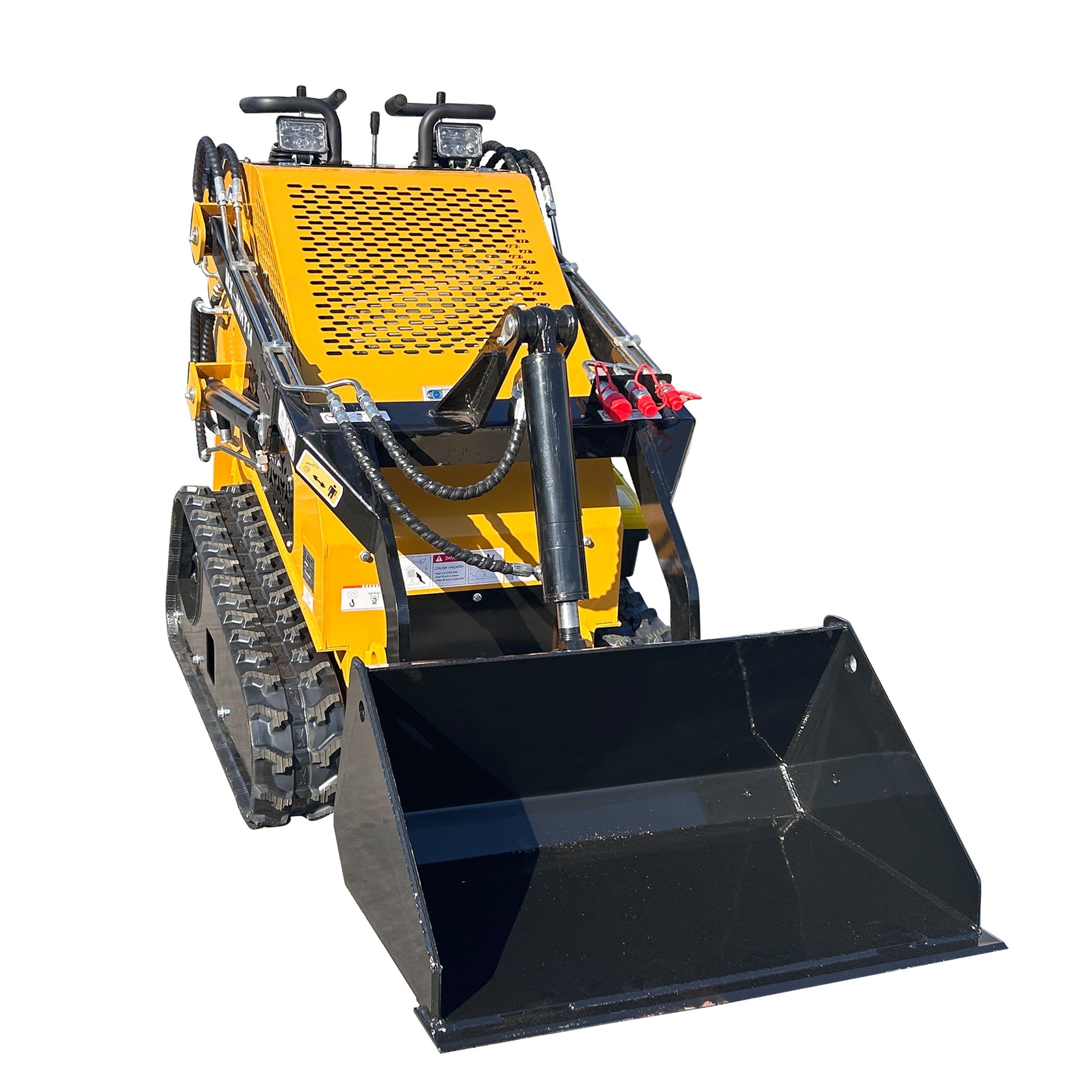

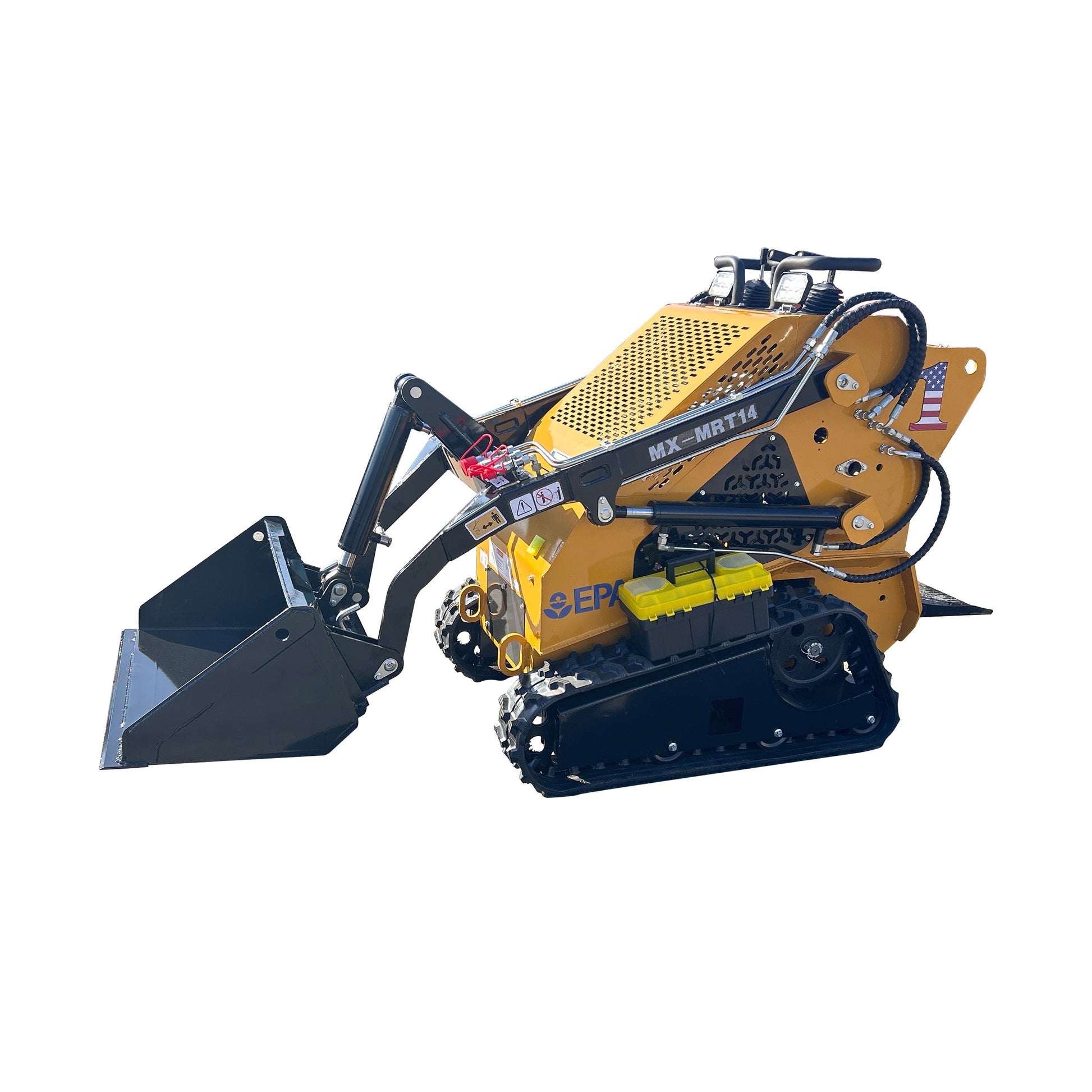

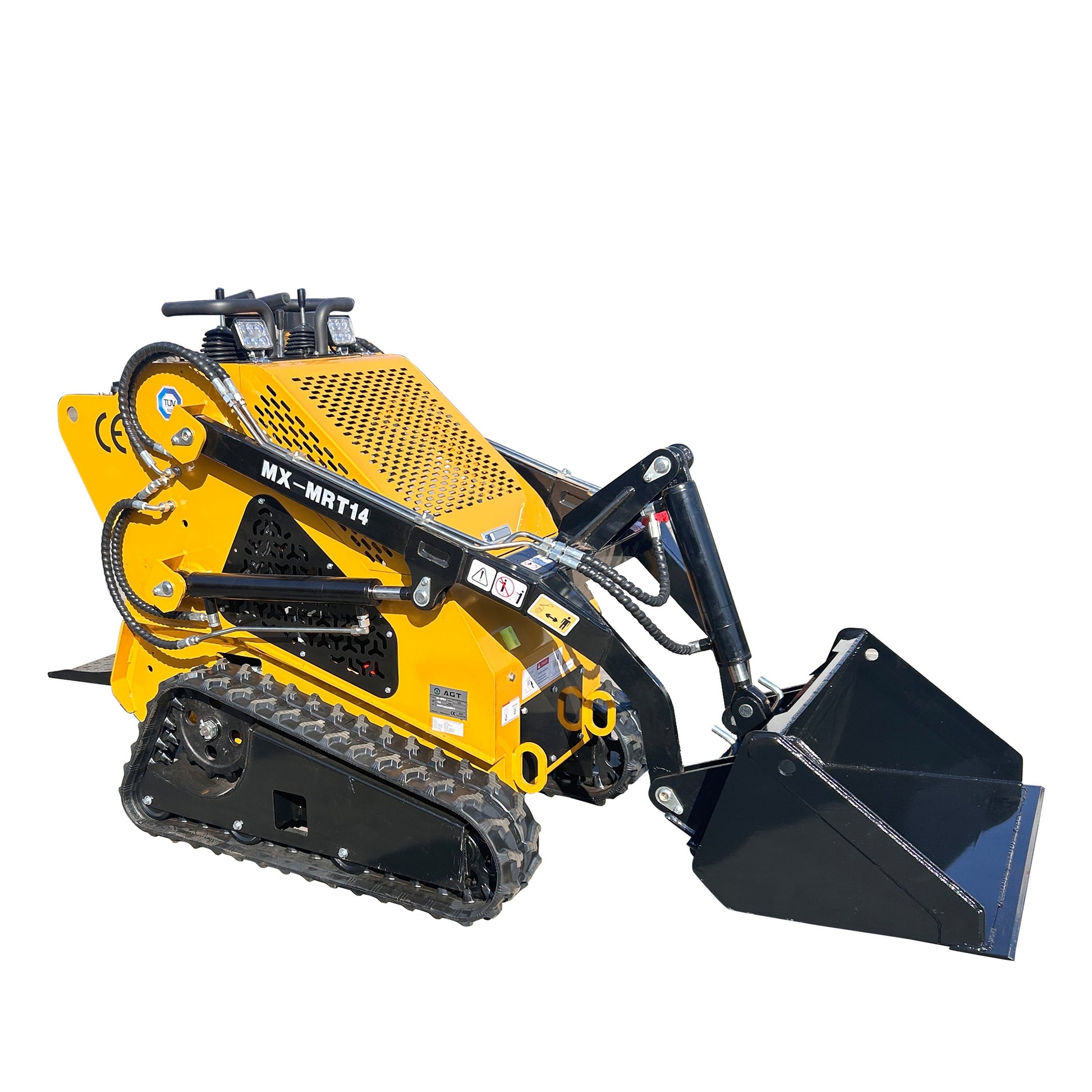

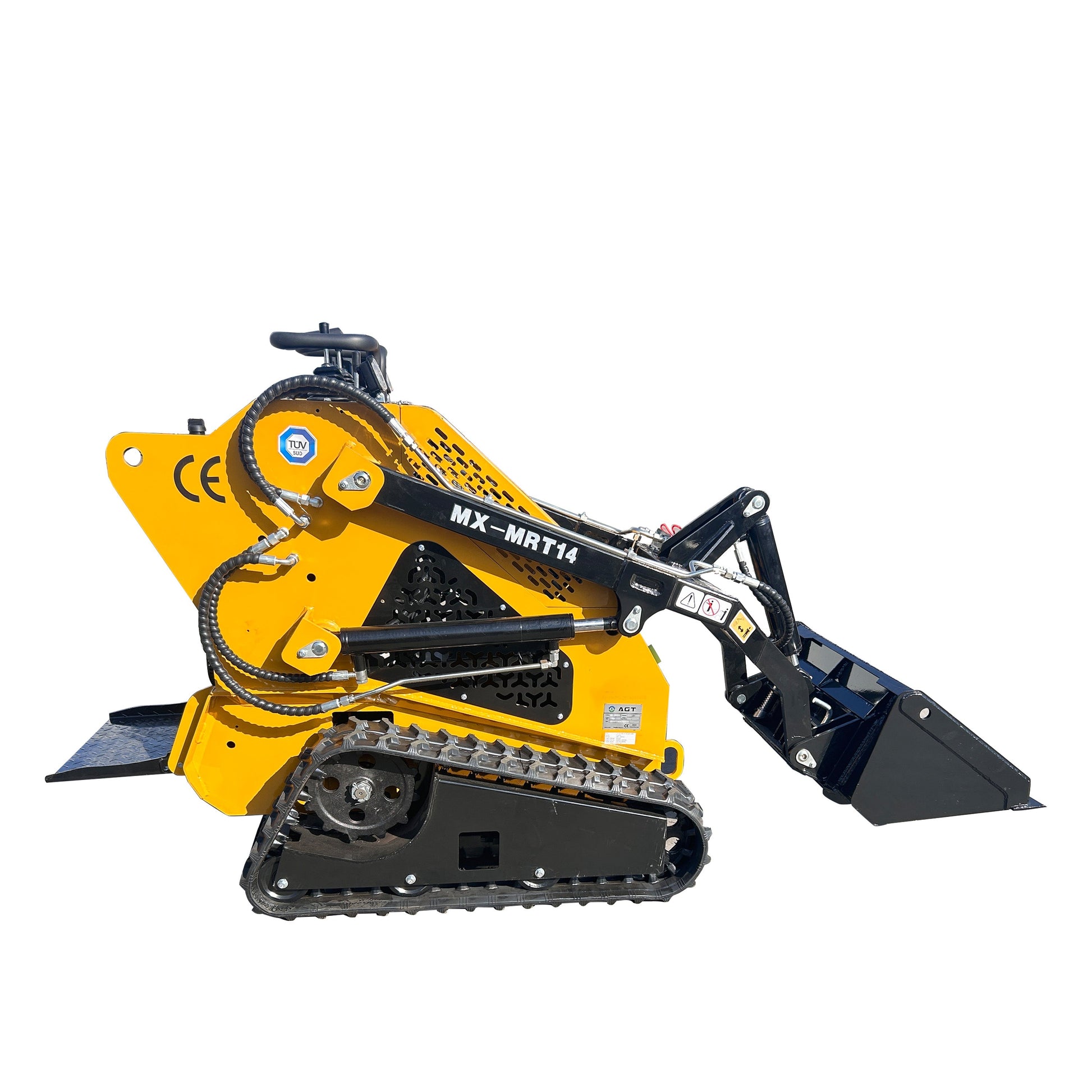

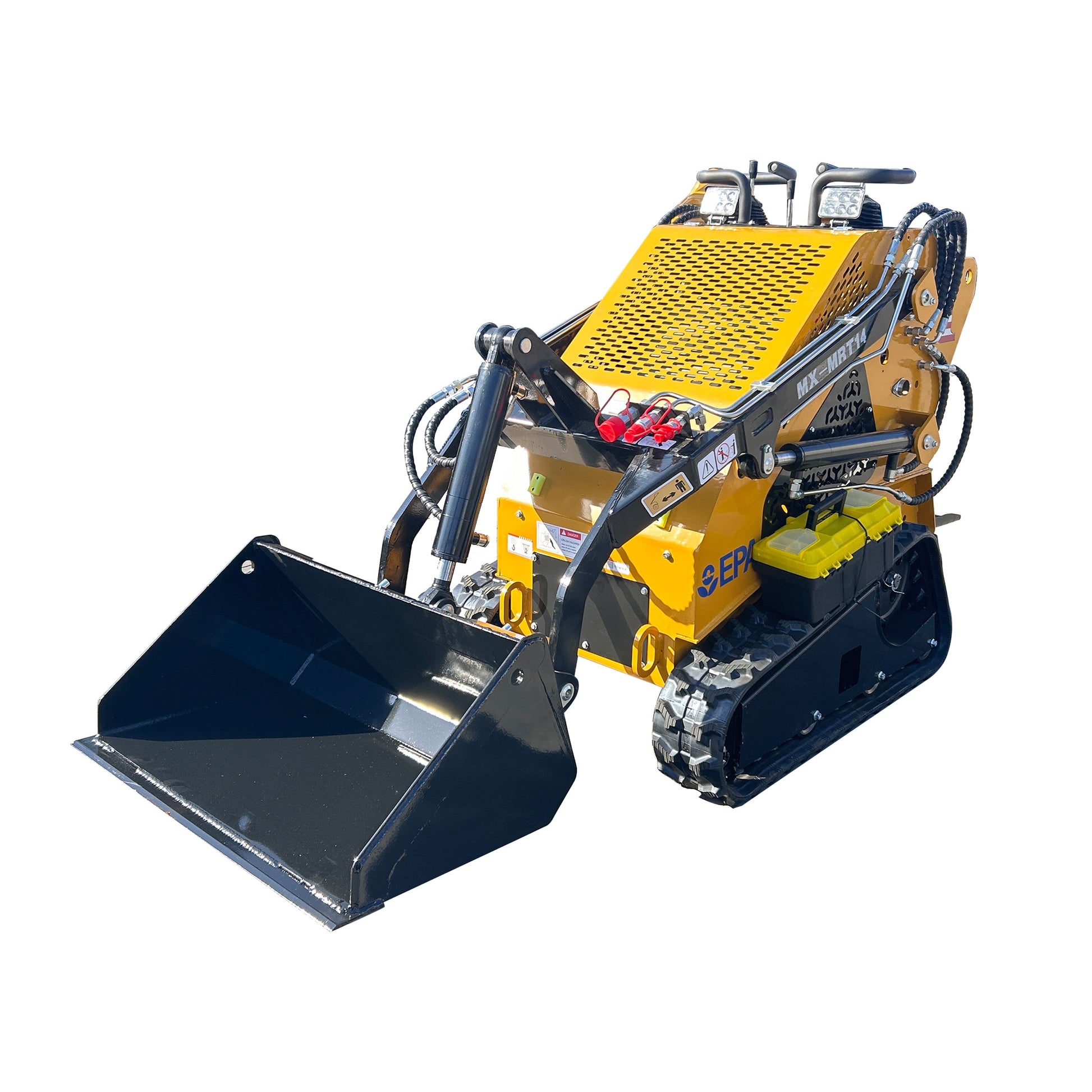

AGT-MX-MRT14 0.7-Ton 13.5HP Stand-On Mini Skid Steer With RATO Engine

Technical Data:

Model Information: MX-MRT14

Basic Performance Parameters

• Working Weight(kg): 700
• Bucket capacity(m³): 0.1
• Travel speed low/high speed(Km/h): 4
• Maximum lifting force (Kg): 200
• Maximum working height(mm): 2285
• Maximum pin height (mm): 1967
• Maximum unloading height(mm): 1575
• Loading distance at maximum unloading height (mm): 661
• Wheelbase(mm): 905
• Ground clearance(mm): 163
• Bucket discharge angle: 23°

Equipment Body

• Bucket width(mm): 1120
• Overall Length(mm): 2135/2432
• Overall Width(mm): 904
• Overall Height(mm): 1364
• Body width(mm): 810
• Slewing radius(mm): 1493

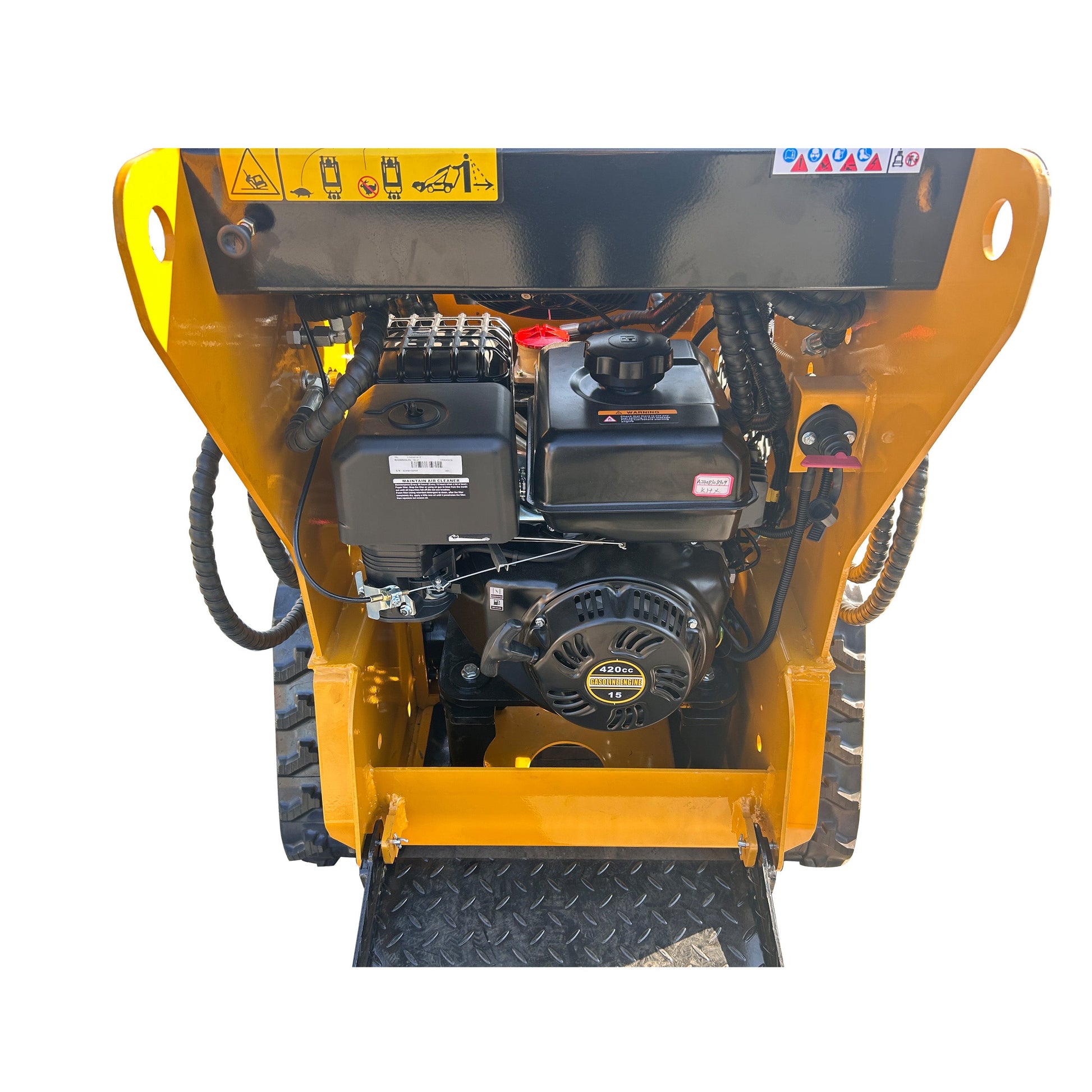

Engine

• Engine Brand: Rato
• Engine model: R420D
• Maximum horsepower(ps): 13.5
• Maximum power(Kw): 9.8
• Maximum speed(rpm): 3600
• Number of cylinders : 1
• Cooling method: Fan cooling
• Engine oil replacement(L): 1.1
• Fuel Type: Gasoline
• Fuel Grade: 92#

Tracks

• -Rubber (bandwidth*pitch*number of sections): 180*72*37

Fuel tank

• Fuel tank(L): 6.6
• Hydraulic oil tank(L): 33
