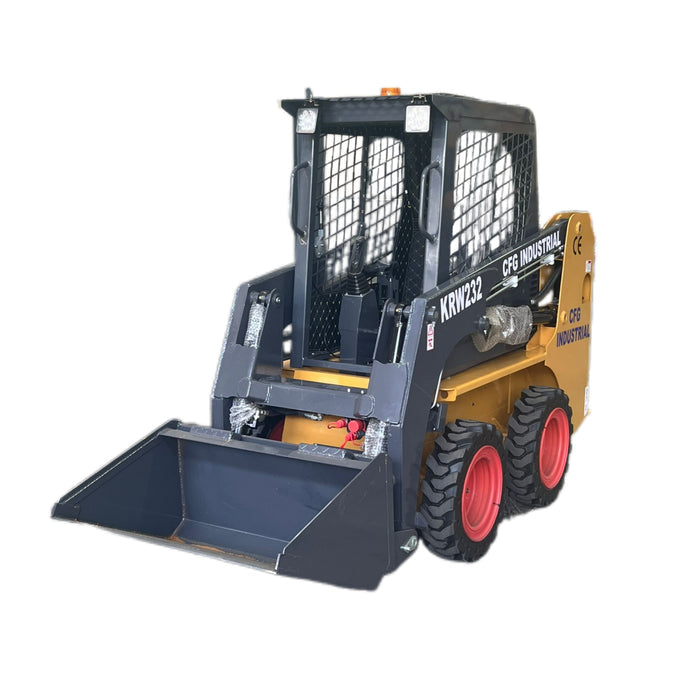

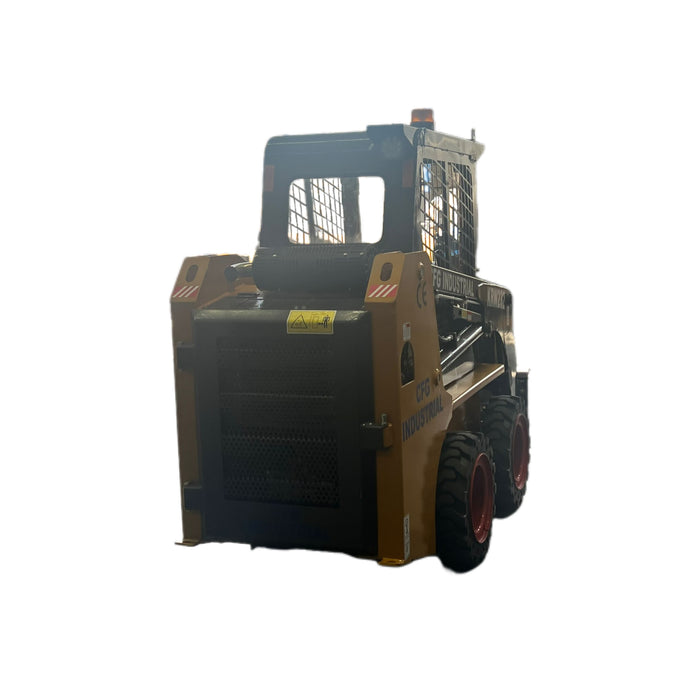

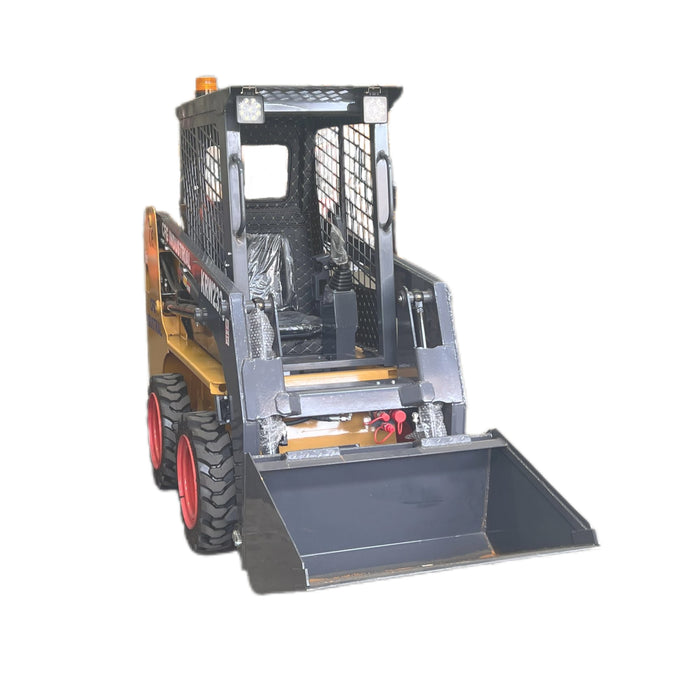

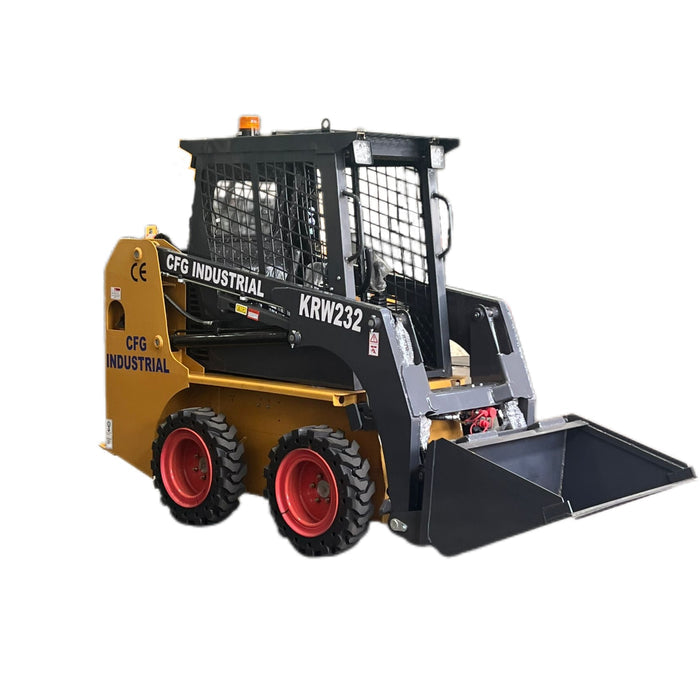

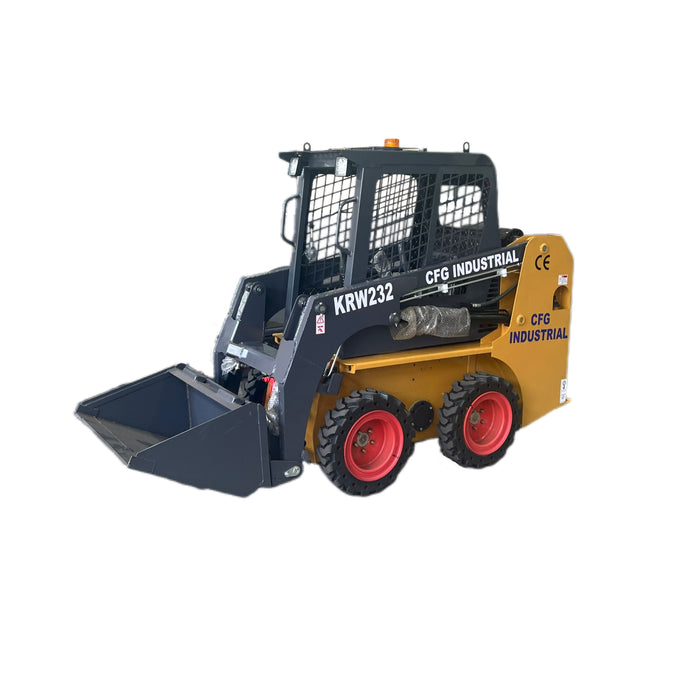

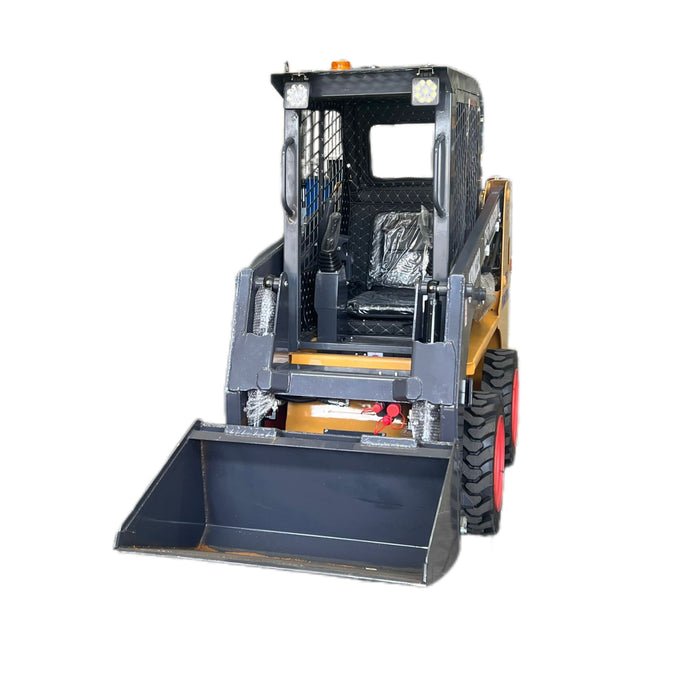

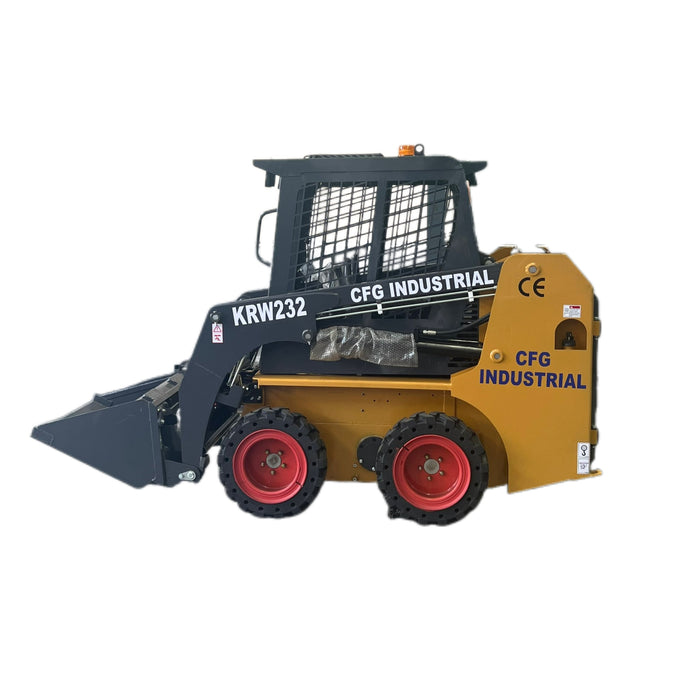

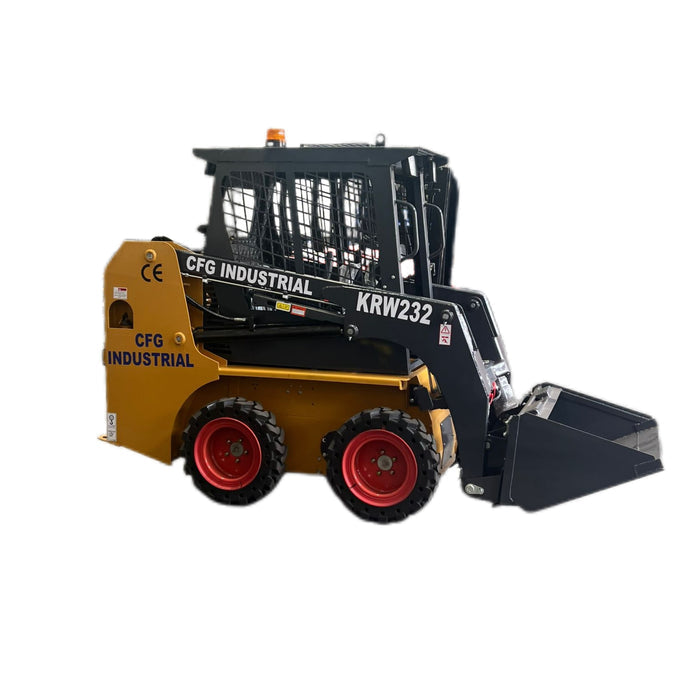

AGT-KRW232 1.25-Ton 33 HP Mini Skid Steer With RATO Engine

The KRW232 Mini Skid Steer Loader is a compact, high-performance machine built for tough jobs on farms, construction sites, and industrial yards. With a 1,100 kg operating weight and 380 kg lifting capacity, it offers powerful performance in tight spaces.

Powered by a 33 HP air-cooled RATO gasoline engine, the KRW232 features a high-efficiency hydraulic system with a 70 L/min flow rate for fast cycle times and smooth operation. Its narrow 900 mm width and 40° bucket discharge angle make it ideal for confined work areas and quick material handling.

Technical Data:

• Operating Weight: 1100 kg

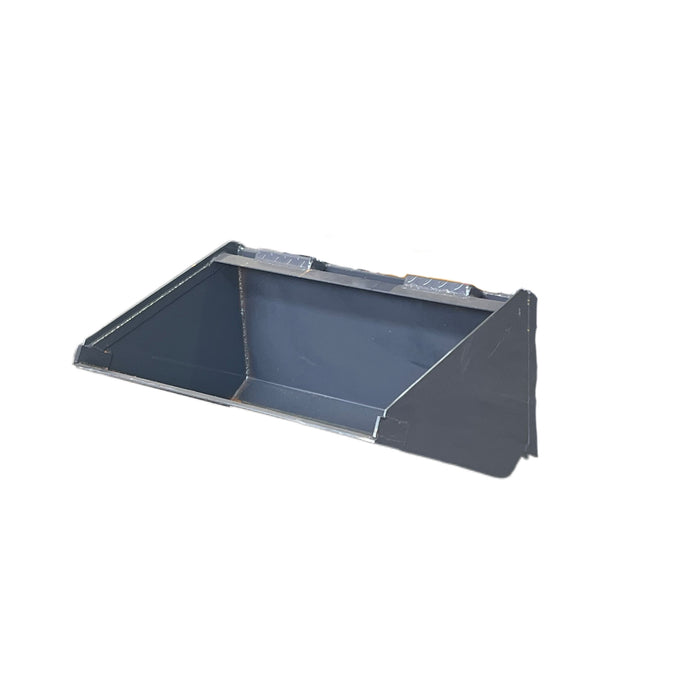

• Bucket Capacity: 0.16 m³
• Travel Speed: Up to 4.5 km/h
• Max Lifting Force: 380 kg
• Max Working Height: 3590 mm
• Unloading Height: 1820 mm
• Bucket Discharge Angle: 40°
• Wheelbase: 801 mm

Engine:

• Rato, Air-cooled
• Max Horsepower: 33 HP.
• Fuel Type: 92# Gasoline
• Fuel Tank Capacity: 40 L
• Theoretical Fuel Consumption: 10 L/h
• Hydraulic Oil Tank: 40 L

Hydraulics:

• Main Pump: PGP532B62
• Max Flow Rate: 70 L/min

Dimensions:

• Overall Length (with bucket): 2580 mm
• Overall Length (without bucket): 1945 mm
• Overall Width: 900 mm
• Overall Height: 1820 mm

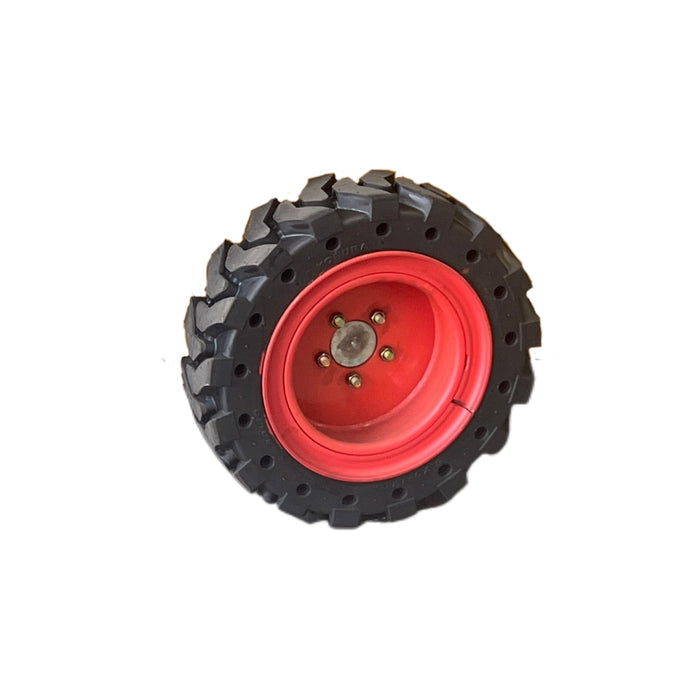

• Tires: 570*16
