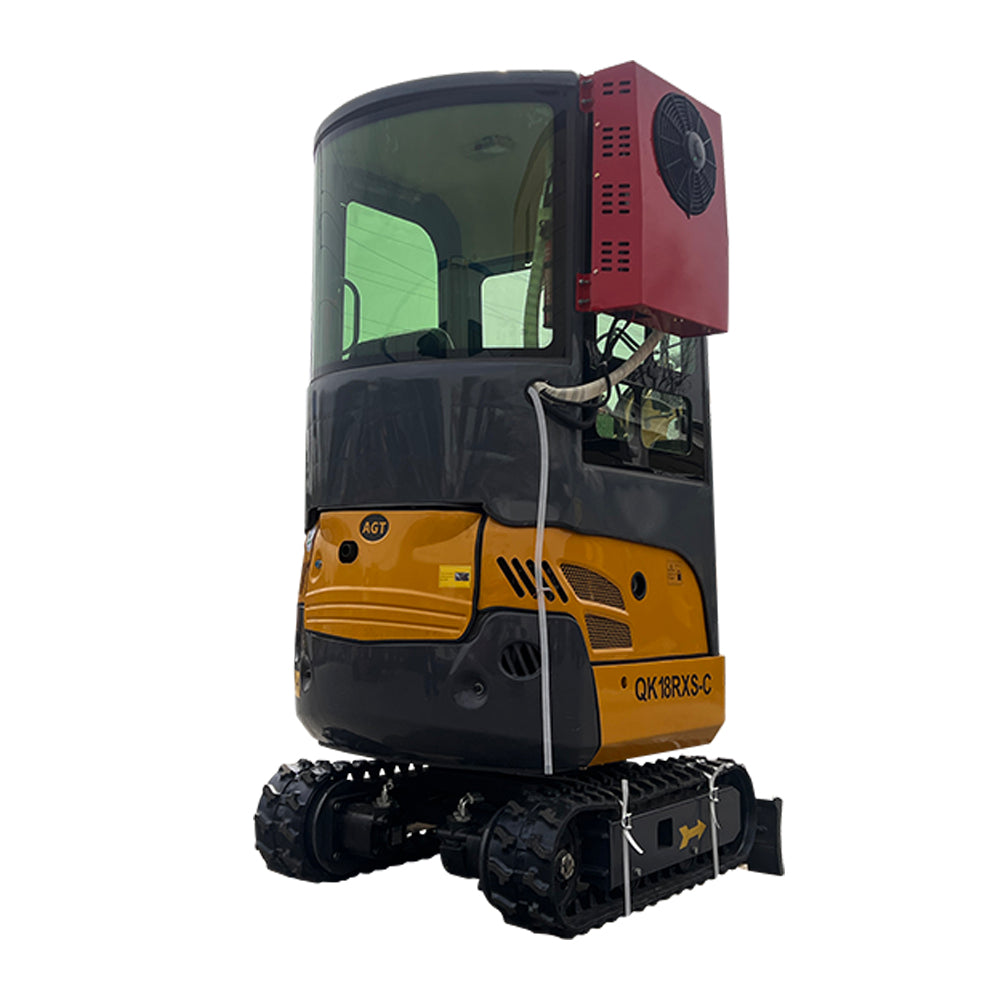

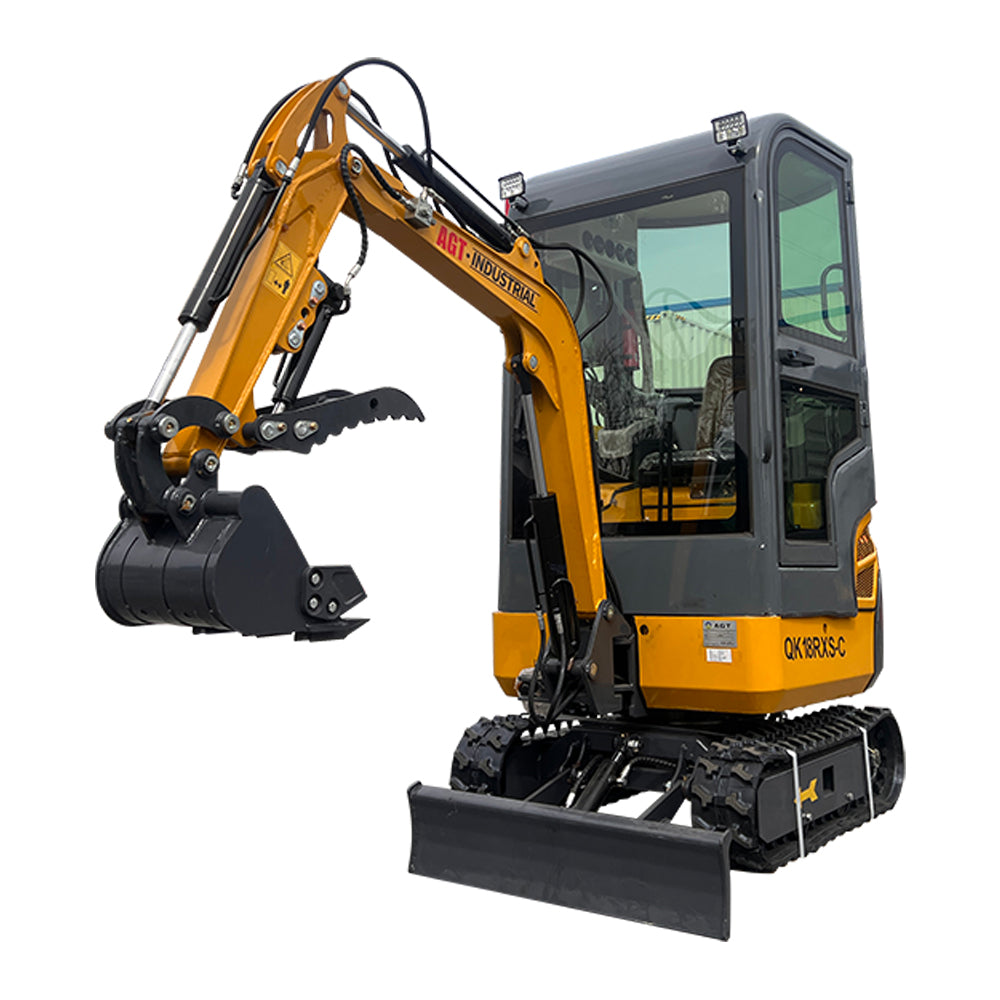

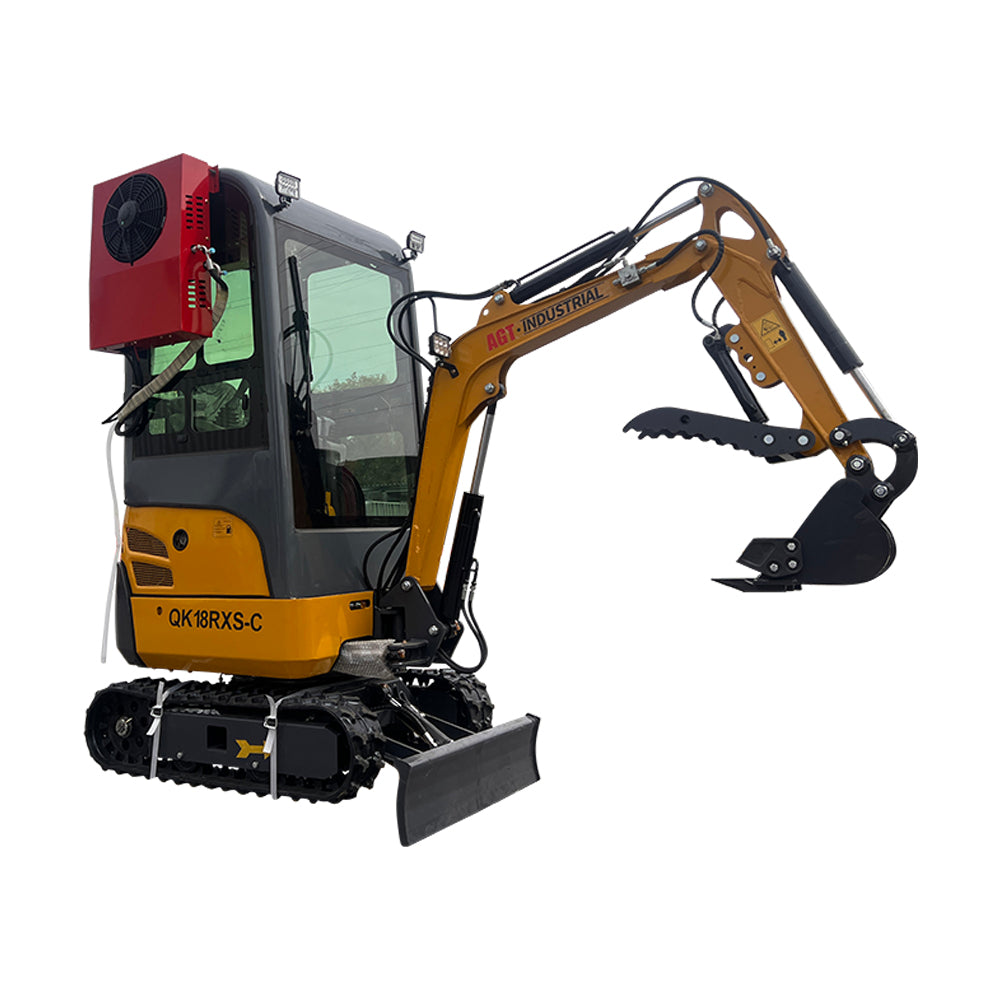

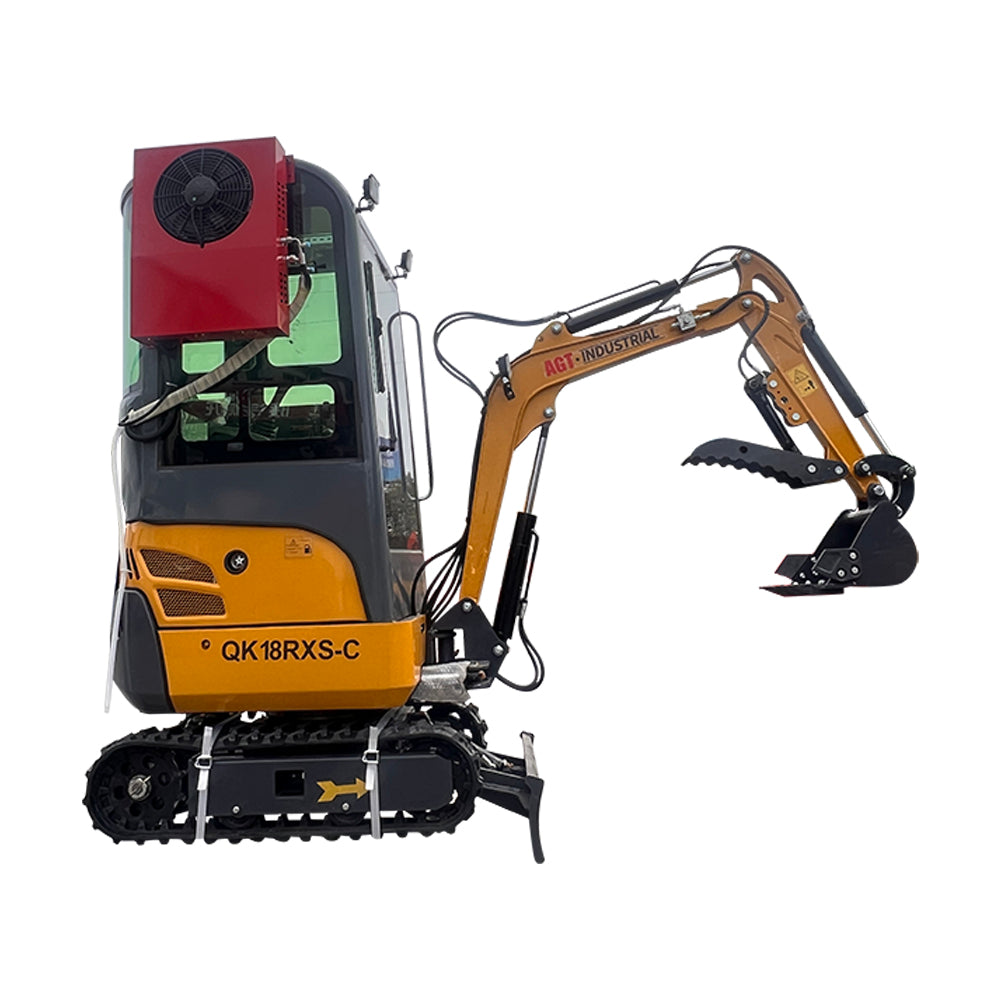

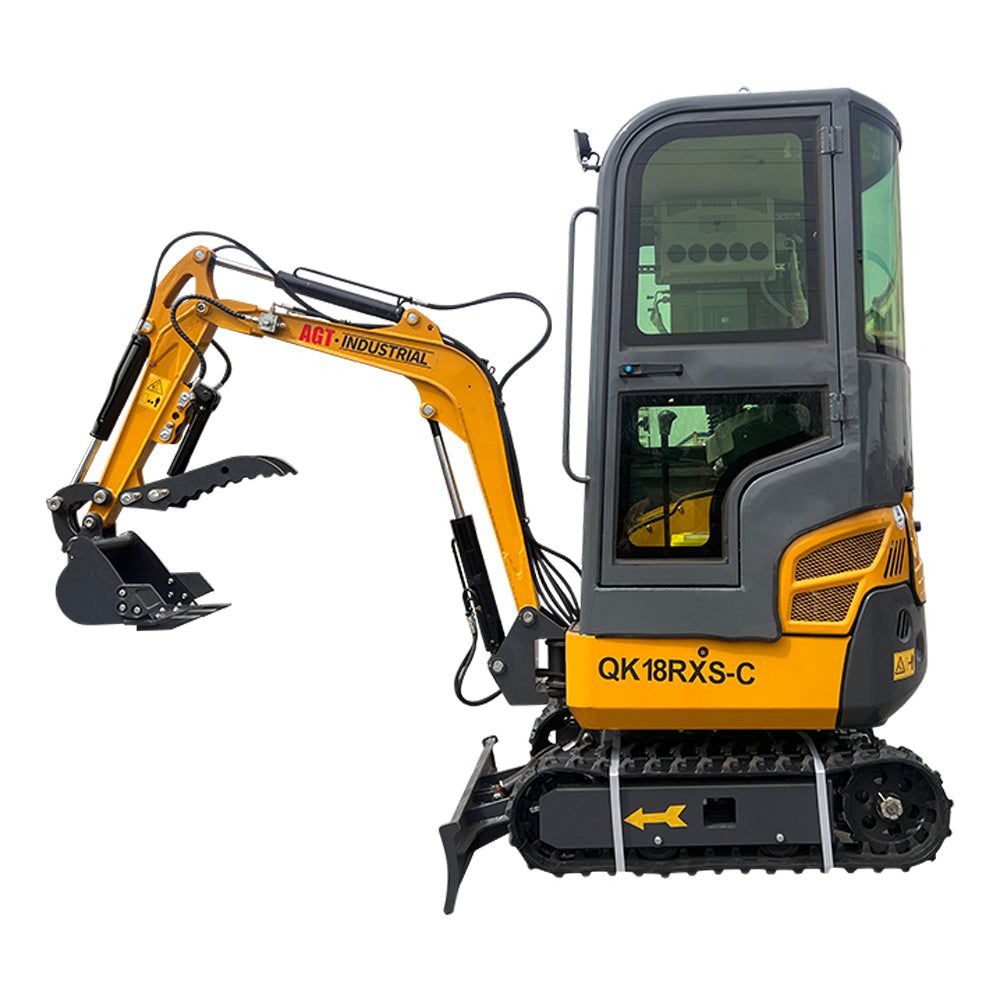

AGT-KH18-C 1-Ton Mini Excavator with Enclosed Cab, Air Conditioning, and Side Swing

Descriptions：

• Designed for small and medium-sized projects: With a compact design, 1-ton operating weight, and a maximum digging depth of 5.41 feet, AGT Mini Excavator has a compact and reliable design that ensures easy maneuverability in small areas such as farms, gardens, public spaces, parks, orchards, and farms.
• With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work. The cab keeps out the dust.

Technical Data：

• Fuel tank: 6.6L
• Hydraulic oil tank: 20L
• Fuel Type: Gasoline
• Fuel Type: #92
• Air conditioning: √
• Side Swing: √
• Cab: √

• Operation Weight: 980kg
• Engine: RATO
• Travel speed low/high (km/h): 0-1.8
• Capacity of bucket: 0.03 m³
• Max Digging Depth: 1693mm
• Max Digging Height: 2560mm
• Max Load Height: 1800mm
• Min Rotation Radius: 3060mm
• Max Angle of Climb: 15°
• Side Swing Angle: 30°

Hydraulic System:

• Total length: 2925mm
• Overall width: 958mm
• Total Height: 2422mm
• Maximum speed (rpm): 3600
• Rated set pressure (Mpa): 25
• Maximum power: 8.5
• Main pump type: GP510803
• Maximum flow rate of main pump(L/min): 21.6
• Multi circuit valve: 4 mechanical + 4 hydraulic
• Rotary hydraulic motor type: BM2-315
• Traveling hydraulic motor: BM6-315
