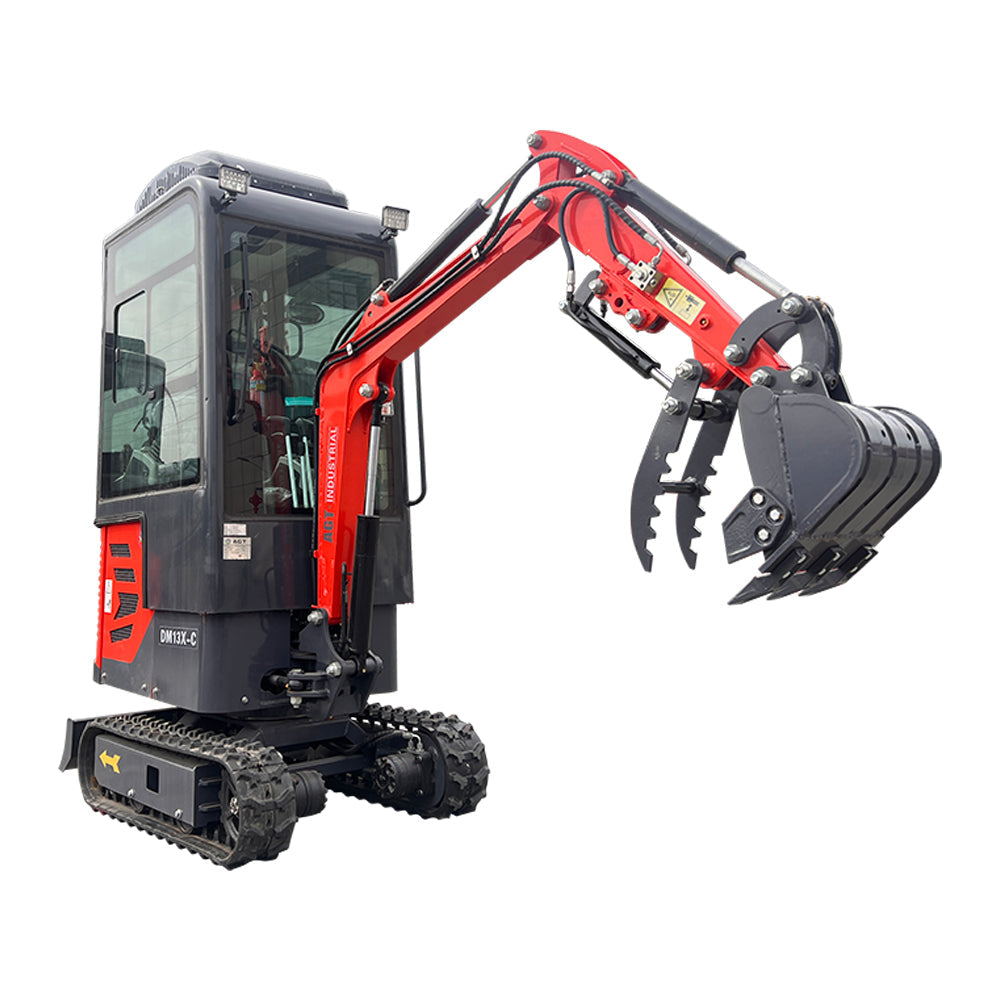

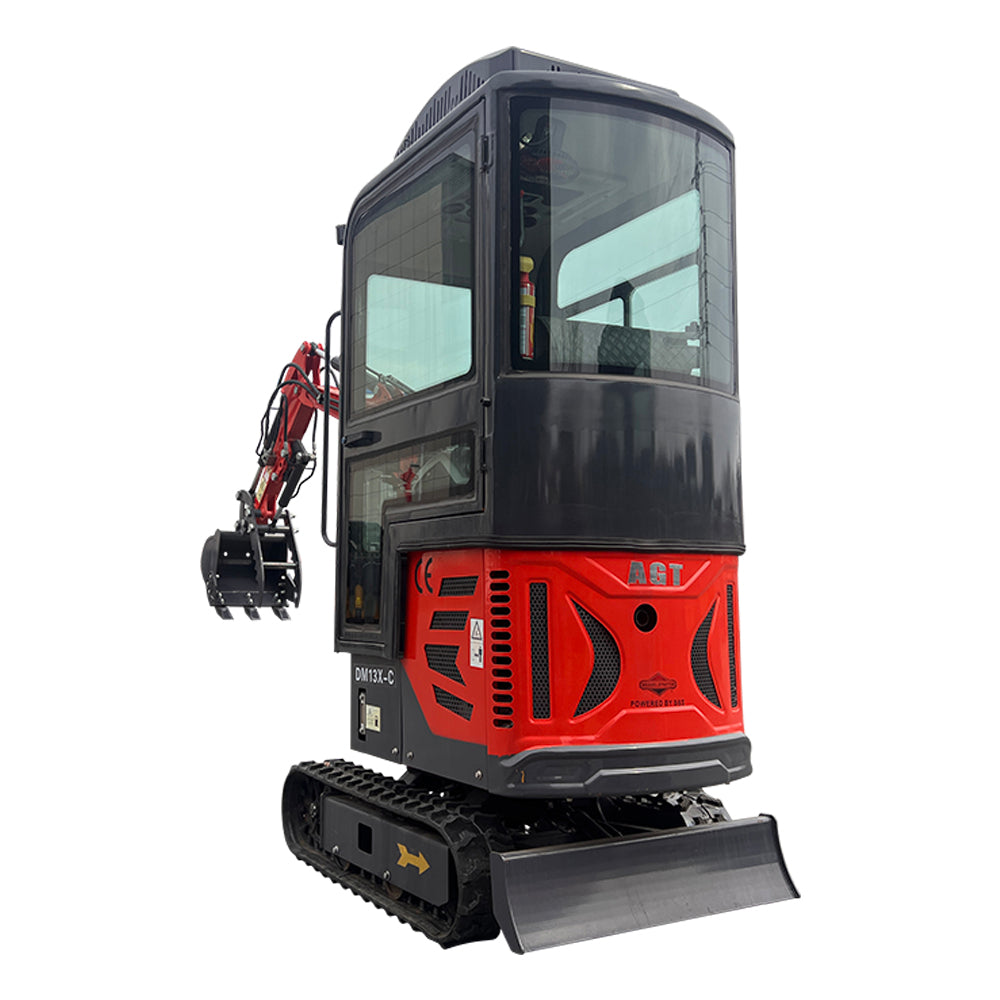

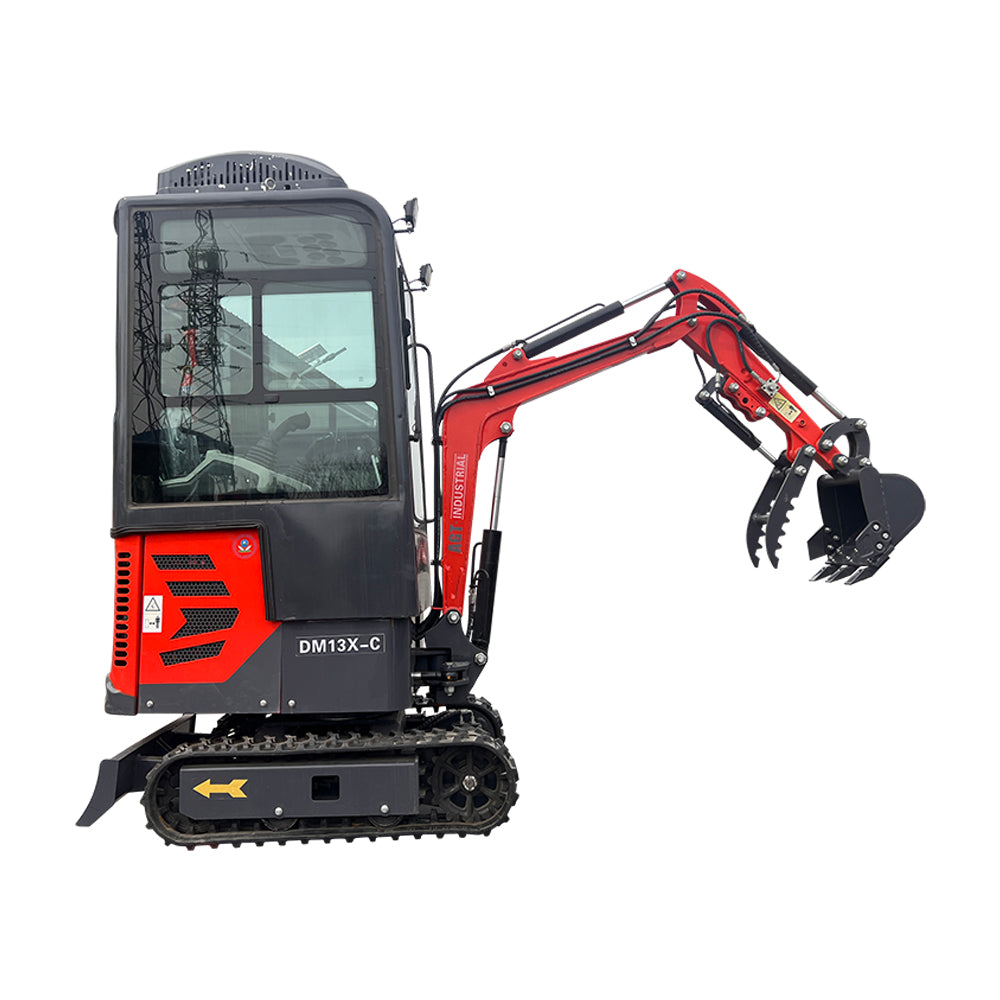

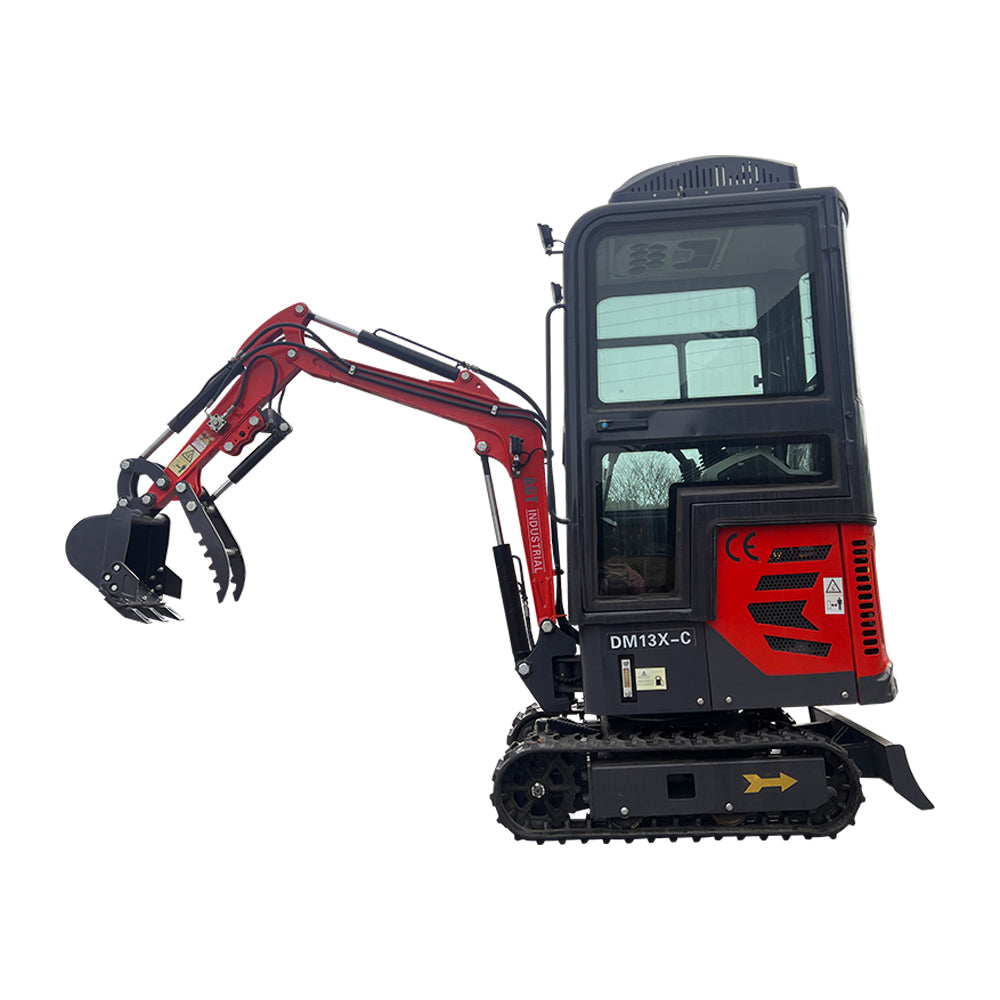

AGT-DM13X-C 1-Ton 13.5 HP B&S Mini Excavator with Air Conditioning, Hydraulic Thumb, Pilot System

Looking for a powerful mini excavator at an unbeatable price? Look no further than the AGT industrial 1-ton mini excavator, available exclusively on our online store!

At Agrotk, we're committed to providing our customers with the best possible value, which is why we're offering our Agrotk DM13X-C mini excavator for $8579 with hydraulic thumb, pilot system and with air conditioning.

And with our one-year warranty, you can rest assured that you're getting a high-quality product that's built to last.

Descriptions:

• 1-Ton Mini Excavator: With a compact design, 1-ton operating weight, and a maximum digging depth of 5.52 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces.
• Simplified Safety and Maintenance: Our mini excavators increase safety with internal hydraulic hoses to ensure a lower risk of damage. Rear-opening compartments provide easy access to critical components, minimizing downtime and maximizing optimal operational performance.

Technical Data:

Basic Performance Parameters

• Working Weight(kg): 900
• Bucket capacity(m³): 0.03
• Travel speed low/high speed(Km/h): 0-0.2
• Climbing ability(%): 30
• A Maximum Digging Height(mm): 2795
• B Maximum Unloading Height(mm): 1863
• C Maximum Digging Depth(mm): 1684
• E Max. digging radius(mm): 3112
• Side Swing: YES
• Side Swing Angle (L/R): 30°
• undercarriage expansion: NO

Body

• J Overall Length(mm): 2738
• K Overall Width(mm): 935
• L Overall Height(mm): 2209
• Bulldozer Width/Height: 907/210

Engine

• Engine Brand: B&S
• Engine Model: 13.5HP
• Max. power(Kw): 9.8
• Max. speed(rpm): 3600
• Cylinders: 1
• Cooling method: fan cooling
• Engine oil change quantity(L): 1.1
• Fuel Type: Gasoline
• Fuel Grade: 92#
• Theoretical fuel consumption(L/h): 0.5-1.2

Hydraulic system

• Main pump type/model: gear pumps/06
• Main pump brand: (Tianjin Xingzou)
• Rated set pressure(Mpa): 16
• Maximum flow rate of main pump(L/min): 21.6
• Multi-way valve: 8 multi-way valve
• Brand of Multi-way valve: (Bei Fang)
• Rated Set Pressure(Mpa): 16
• Hydraulic Linear Motor type: BM6-310
• Linear Motor Brand: (Li Yuan)
• Hydraulic Servo Motor type: BM2-250

Excavator tracks

• -Rubber (bandwidth*pitch*number of sections): 180*72*37

Configuration

• Cab: YES
• Roof: NO
• Handrail: NO
• Thumb Clip: YES
• Counterweight: NO
• Tensioning Forms: Mechanical tensioning
• Air Conditioning: △

Fuel tank

• Fuel tank(L): 6.6
• Hydraulic oil tan(L): 18
